序号

S/N

零件代号

Part No.

零件名称

Part Name

数量

Q’ty

备注

Remarks

1

4100QBZL-03.03.02

加油口盖合件

Oil filler cap seaming

1

2

YN33-03.03B-001

缸盖罩

Cylinder head cover

1

3

4100QB-01-001

气缸盖螺栓

Cylinder head bolt

4

4

GB/T5782-2000

螺栓 M10×50- 10.9

Bolt M10×50- 10.9

4

5

GB/T849-1988

球面垫圈 10

Gasket 10

4

6

GB93-1987

垫圈 10

Spring gasket 10

4

7

4100QB-01-002

气缸盖螺栓

Cylinder head bolt

10

8

4100QB-01-003

气缸盖螺栓

Cylinder head bolt

4

10

4102GB-03.01

气缸盖部件

Cylinder head

1

11

495QA-01.01-007

碗形塞 φ32

Cup plug φ32

6

12

4100QBZL-01-005A

气缸盖垫片

Washer,cylinder head

1

13

GB/T5783-2000

螺栓 M10×25

Bolt M10×25

2

14

GB93-1987

垫圈 10

Spring gasket 10

2

15

GB/T97.1-2002

垫圈 10

Gasket 10

2

16

2100QB-03-021

后吊耳

Rear hanger

1

17

495QA-03-008

缸盖后盖板垫片

Washer, cylinder head rear cover

1

18

495QA-03-009

缸盖后盖板

Cylinder cover rear cover plate

1

19

GB/T97.1-2002

垫圈 8

Gasket 8

7

20

GB93-1987

垫圈 8

Spring gasket 8

7

21

GB/T5783-2000

螺栓 M8×16

Bolt M8×16

7

22

495QA-03.01-006

碗形塞ф24

Cup plug φ24

6

23

4100QB-03-020A-EQ

前吊耳

Front hanger

1

24

GB/T97.1-2002

垫圈 10

Gasket 10

2

25

GB93-1987

垫圈 10

Spring gasket 10

2

26

GB/T5783-2000

螺栓 M10×25

Bolt M10×25

2

序号

S/N

零件代号

Part No

零件名称

Part Name

数量

Q’ty

备注

Remarks

27

YN33-03-014B

缸盖罩垫片

Washer, cylinder head cover

1

28

4100QB-03-038

缸盖罩螺柱

Cylinder head cover stud

4

29

YN4A-060003

缸盖罩螺母

Cylinder head cover nut

4

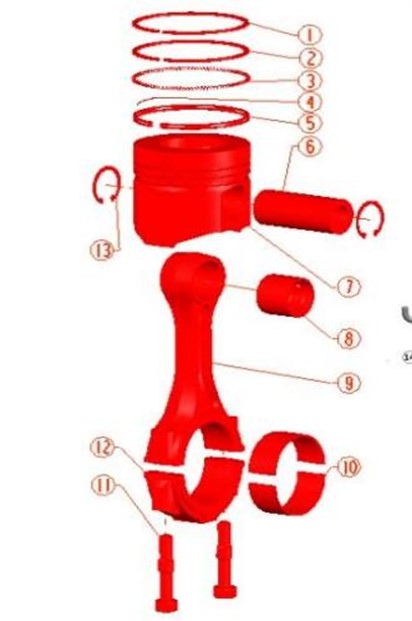

序号 S/N

零件代号

Part No.

零件名称

Part Name

数量 Q’ty

备注

Remarks

1

YN38-04-100

活塞环

Piston ring

4

2

4

3

4

4

4

5

4

6

YN38CRD-03302-1

活塞销

Piston pin

4

7

YN38PE-04-001

活塞

Piston

4

8

4102QBZL-04.02-004

连杆衬套

Connecting rod bush

4

9

4102QBZL-04.02-001

连杆体

Connecting rod

4

11

4100QBZ-2-04.02-003A

连杆螺栓

Connecting rod bolt

8

12

4100QBZ-2-04.02-002A

连杆盖

Connecting rod cover

4

10

4102QBZL-04-006

连杆轴瓦

Bearing of connecting rod shaft

8

13

GB893.1-1986

挡圈 35

Cir clip 35

8

14

4100QL-01.14

活塞冷却喷嘴总成

Piston cooling nozzle

4

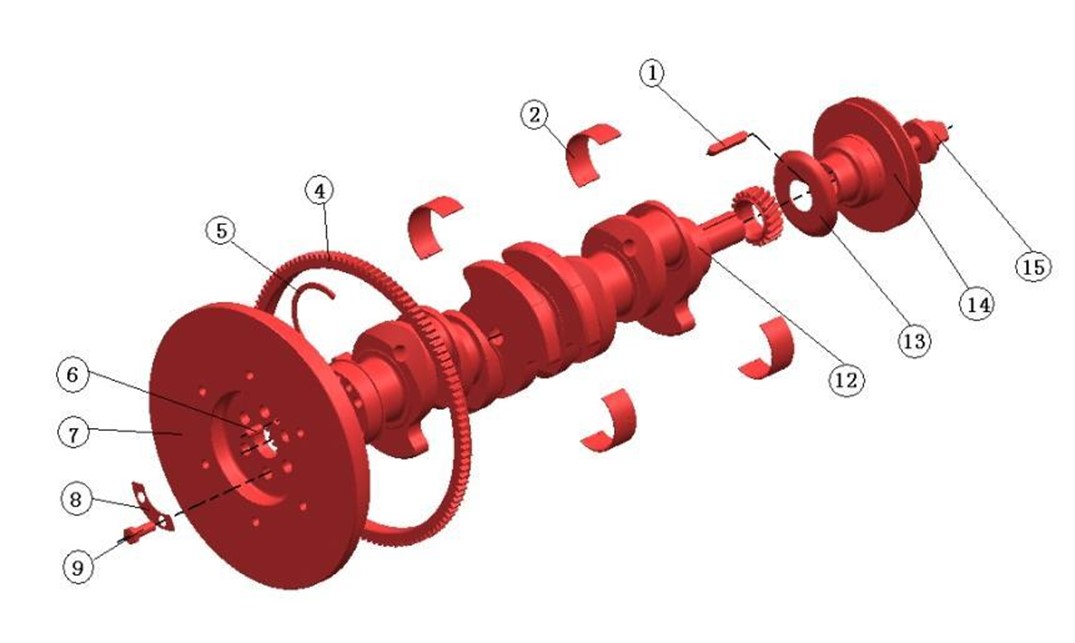

序号

S/N

零件代号 Part

No.

零件名称

Part Name

数量

Q’ty

备注

Remarks

1

GB/T1096-2003

键 10×8×60

Key 10×8×60

1

2

4102QB-01-006-009

主轴承上下瓦

Upper and lower main bearing liner

2

4

495QA-05-007

飞轮齿圈

Gear ring of flywheel

1

5

4102QB-01-010

曲轴止推片

Crankshaft thrust sheet

4

GB/T119.1-2000

销 3 h8×10

Pin 3 h8×10

2

6

GB/T119.1-2000

销 10 h8×25

Cylindrical pin 10 h8×25

1

7

4102GB-030002

飞轮

Flywheel

1

8

4102QB-05-009A

防松垫片

Anti-loose washer

3

9

4102QB-05-010

飞轮紧固螺栓 M14×1.5-32

Flywheel fixing bolt

6

12

4102QB-05-006C

曲轴

Crankshaft

1

13

495QA-05-004

前挡油圈

Front oil retainer

1

14

4100QB-19-001A-NJ

曲轴皮带轮

Crankshaft pulley seaming

1

15

4100QB-05-001-NJ

曲轴皮带轮螺栓

Crankshaft belt pulley bolt

1
