SANY SY135C SY135C8I2K EXCAVATOR parts catalog 03

Meppon Co., Ltd Posted on by
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-3-11A8206060303641密封垫Gasket, seal
2-3-22A8201011178711盖Cover
2-3-33A2101110002022螺栓Bolt
2-3-44A2104050000012垫圈Washer
2-3-55A8103020503051回转平台Platform AS, swing
2-3-66101695081液压主管路Pipeline, main, hydraulic
2-3-77119259111动力系统Power train
2-3-88101733011先导管路Pipeline AS, pilot
2-3-99119266191驾驶室总成Cab AS
2-3-1010102066671覆盖件总装Cover GP
2-3-1111101794701空调系统Air conditioning system
2-3-1212107060101配重总成Counterweight GP
2-3-1313A2101100004484螺栓Bolt
2-3-1414A2104440000044垫圈Washer
2-3-1515A8201013271872垫片Shim
2-3-1616116644564调整垫片Shim, adjusting
2-3-1717116644574调整垫片Shim, adjusting
2-3-1818106132011护套Sheath
2-3-1919112256933护套Sheath
2-3-2020127096361底封板总成general assembly of bottom sealing
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-5-11B2203010005341柱塞泵Pump, plunger
2-5-22B2301030021771胶管Hose, rubber
2-5-33602194411多路阀Multiple valve
2-5-44B2301030064382胶管Hose
2-5-55B2301030064391胶管Hose, rubber
2-5-66B2301030064411胶管Q/SY1102 胶管Hose, rubber
2-5-77B2301030018301胶管Hose, rubber
2-5-88B2301030056031胶管Hose
2-5-99101658051动臂大腔管Tube, head end, boom cylinder
2-5-1010101658061动臂小腔钢管Pipe, rod end, boom cylinder
2-5-1111A2102040003456螺钉Screw
2-5-1212B2301030057174胶管Hose
2-5-1313A8201013448412管夹Clamp, pipe
2-5-1414A8102010102981液压油箱总成Tank GP, hydraulic
2-5-1515A2108550000524T型抱箍Anchor ear, T-type
2-5-1616A8206060205461吸油胶管Hose, oil suction
2-5-1717B2301030043601胶管Hose
2-5-1818B2301030085501胶管Hose
2-5-1919B2301030033151胶管Hose, rubber
2-5-2020B2301030040541胶管Hose
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-7-2121101658101回油钢管Pipe, oil return
2-7-2222B2299000027501软性连接头Connector, soft
2-7-2323A2299000045661管夹Clamp, pipe
2-7-2424A8203010173741U形螺栓U-bolt
2-7-2525A2103070000128螺母Nut
2-7-2626A8201013452021支板Plate
2-7-2727A8203010171311U型螺栓U-bolt
2-7-2828101414781管夹安装板Plate, mounting, pipe clamp
2-7-2929102666631回油钢管Pipe, oil return
2-7-3030B2204010005891单向阀Valve, check
2-7-3131A2102040003642螺钉Screw
2-7-3232B2301010003663O形圈O-ring
2-7-3333A8102010242151法兰Flange
2-7-3434B2204010005901单向阀Valve, check
2-7-3535102258311回油钢管Pipe, oil return
2-7-3636A2102040002324螺钉M16×45GB70.1 10.9级False
2-7-3737A2104010000039垫圈Washer
2-7-3838B2301030012321胶管Hose
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-9-11600497931呼吸阀Valve, breather
2-9-22B2204010007392梭阀阀块Block, shuttle valve
2-9-33A2101110000126螺栓Bolt
2-9-44102263951回油钢管Pipe, oil return
2-9-55A2104010000049垫圈Washer
2-9-66101658141主阀架Bracket, main valve
2-9-77600608391电磁换向阀Valve, solenoid, directional
2-9-88105703321回转机构定位销Dowel, swing mechanism
2-9-99210275333螺钉M12×55GB70.1 10.9级Screw
2-9-1010A21040100000213垫圈Washer
2-9-1111A2103070000013螺母Nut
2-9-1212A2102040003129螺钉Screw
2-9-1313A2101110002952螺栓Bolt
2-9-1414A8201990003601PT块Block, PT
2-9-1515A2102040003552螺钉Screw
2-9-1616A2103070000172螺母Nut
2-9-1717A2102040003375螺钉M12×30GB70.1 10.9级False
2-9-1818B2107800000293管接头Connector, pipe
2-9-1919A2102040001989螺钉M16×35GB70.1 10.9级False
2-9-2020A2102040003368螺钉Screw

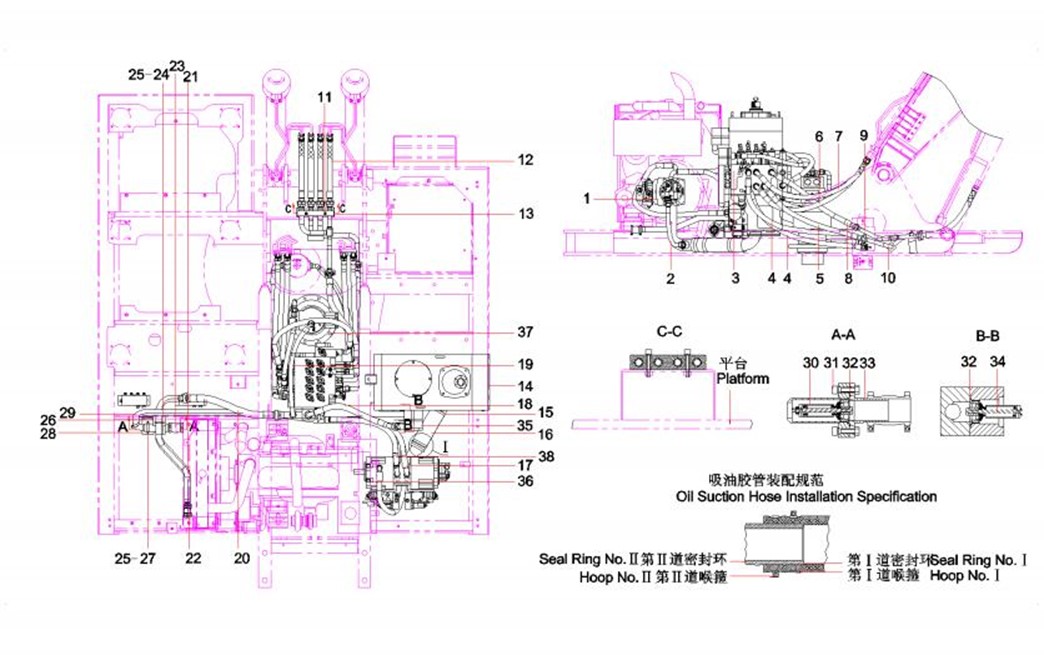

识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-11-2121B2301030077752胶管Hose
2-11-2222B2299000027181减速机总成Reducer GP
2-11-2323B2301030064371胶管Hose
2-11-2424B2301030036272胶管Hose, rubber
2-11-2525B2301030064361胶管Hose, rubber
2-11-2626B2107800000211管接头Connector, pipe
2-11-2727B2301030056061胶管Hose
2-11-2828B2107800013103管接头Connector, pipe
2-11-2929A8102010120431吸油钢管Pipe, oil suction
2-11-3030B2301030024461胶管Hose, rubber
2-11-3131B2301010000381O形圈O-ring
2-11-3232A8202050022831接头Connector
2-11-3333B2107800000241管接头Connector, pipe
2-11-3434B2107800014261管接头Connector
2-11-3535101370101接头Connector
2-11-3636B2204010009161放油阀Valve AS, shut off, engine oil
2-11-3737A2299000013451软管环箍Hoop, hose
2-11-3838101929811放油软管Hose, oil outlet
2-11-3939A2302000001671线夹Cable clamp
2-11-4040A2101110001951螺栓Bolt
