SANY SY135C SY135C8I2K EXCAVATOR parts catalog 36

Meppon Co., Ltd Posted on by
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
8-9-11602315811轴SPINDLE
8-9-22602315821减速机壳体HUB
8-9-33602315831端盖COVER
8-9-44602315841保持架HOLDER
8-9-55602315851环螺母NUT RING
8-9-66602315861太阳齿轮SUN GEAR
8-9-77602315873行星齿轮GEAR PLANETARY(R)
8-9-88602315884行星齿轮GEAR PLANETARY(F)
8-9-99602315891驱动齿轮GEAR DRIVE
8-9-1010602315904螺钉SCREW
8-9-1111602315911密封圈SEAL RING
8-9-1212602315921止推板PLATE THRUST(F)
8-9-1313602315931止推板PLATE THRUST(R)
8-9-1414601589911止推垫圈Washer, thrust
8-9-1515602315948止推垫圈WASHER THRUST
8-9-1616602315954衬套COLLAR
8-9-1717602337453螺堵PLUG ASSEMBLY
8-9-1818600829671螺堵Plug
8-9-1919600829931O形圈O-ring
8-9-2020602315961卡簧RING SNAP
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
8-11-21216023159712螺栓BOLT
8-11-2222602315983弹性销PIN SPRING
8-11-2323602138994堵头Plug
8-11-2424602315992浮动油封SEAL FLOATING
8-11-2525602316002角轴承BEARING ANGULAR BALL
8-11-2626602316011卡簧RING SNAP
8-11-2727602316021O形圈O-RING
8-11-2828601589901止推板Plate, thrust
8-11-2929602316033衬套RACE INNER
8-11-3030602316043滚针轴承BEARING NEEDLE
8-11-3131602316054滚针轴承BEARING NEEDLE
8-11-3232600829601卡簧Spring, snap
8-11-3333602316061驱动轴SHAFT DRIVE
8-11-3434602316071油封SEAL OIL
8-11-3535602316081滚柱轴承BEARING ROLLER
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME

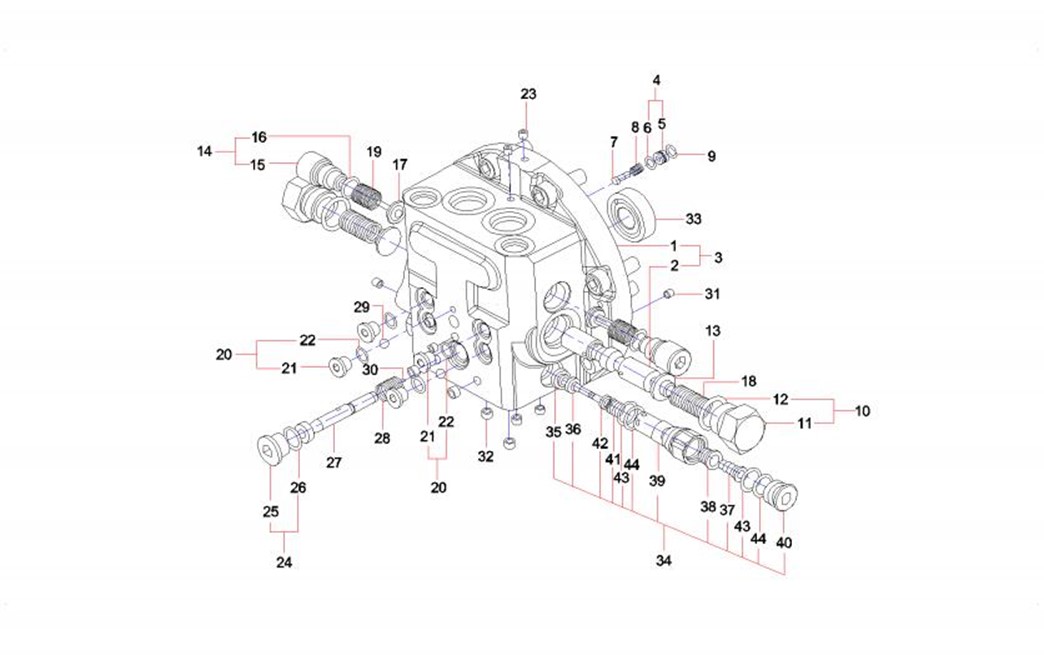

8-13-11602316121法兰FLANGE REAR
8-13-22602316131平衡阀SPOOL MAIN E-TYPE
8-13-33602316111法兰总成REAR FLANGE ASSEMBLY
8-13-44602337461阀座总成VALVE ASSEMBLY SEAT
8-13-55600829521阀座Seat, valve
8-13-66600829991O形圈O-ring
8-13-77600829351V/V销Pin
8-13-88600829421弹簧Spring
8-13-99600829461挡圈Ring, retaining
8-13-1010602337472螺堵PLUG ASSEMBLY  MAIN
8-13-1111600829681螺堵Plug
8-13-1212600829961O形圈O-ring
8-13-1313600829452弹簧座Seat, spring
8-13-1414602337482堵头PLUG ASSEMBLY CHECK
8-13-1515602316141堵头PLUG CHECK
8-13-1616600829941O形圈O-ring
8-13-1717602316152单向阀VALVE CHECK
8-13-1818600829432弹簧Spring
8-13-1919600829442弹簧Spring
8-13-2020601589194丝堵总成PLUG ASS’Y RO
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
8-15-2121600829661螺堵Plug
8-15-2222600829921O形圈O-ring
8-15-2323600829697螺堵Plug
8-15-2424601589203丝堵总成PLUG ASS’Y RO
8-15-2525601589161丝堵Plug, screw
8-15-2626600829951O形圈O-ring
8-15-2727602316161二速阀芯SPOOL(2SPEED)
8-15-2828602316171二速弹簧SPRING(2SPEED)
8-15-2929600829212钢球Ball, steel
8-15-3030601922521螺钉Screw
8-15-3131601641611节流孔Hole , throttle
8-15-3232600829634螺堵Plug
8-15-3333602316181球轴承BEARING BALL
8-15-3434602316472V/V溢流阀总成RELIEF V/V ASSEMBLY
8-15-3535601922561阀座Seat, valve
8-15-3636602316481活塞PLUNGER
8-15-3737602316491杆ROD
8-15-3838601922591活塞Piston
8-15-3939601922601阀体Body, valve
8-15-4040602316501堵头PLUG
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
8-17-4141601922621弹簧Spring
8-17-4242601922631薄垫片Shim
8-17-4343600829952O形圈O-ring
8-17-4444601922642支撑环Ring, support
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
8-19-11602088701蒸发器Evaporator
8-19-22602087481排水管Pipe, water drain
8-19-33602087491控制面板Panel, control
8-19-44602087501外气传感器Sensor, fresh air
8-19-55602087511日照传感器Sensor, sunlight
8-19-66602087521外气过滤器Filter, fresh air
8-19-77602088711冷凝器Condenser
8-19-88600565491压缩机总成Compressor GP
8-19-99602087531压冷软管总成Hose As, pressure to cool
8-19-1010602087541蒸压软管总成Hose AS, evaporator to
8-19-1111602087551冷储软管总成Hose AS, condenser to dehydrator
8-19-1212602087561储蒸软管总成Hose As, evaporator to dehydrator
8-19-1313602087571干燥瓶总成Bottle GP, drying
8-19-1414602087581空调线束Harness, air conditioner
8-19-1515602087591空调线束Harness, air conditioner
8-19-1616602087601A/C继电器Switch, power supply
8-19-1717602087611风机继电器Relay, blower
8-19-1818602087621内气过滤器Air cleaner, recirculation
