SANY SY215C SY215C9M2KS EXCAVATOR parts catalog 16

Meppon Co., Ltd Posted on by
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-157-4141600087422螺柱Stud
2-157-4242600087054O形圈O-ring
2-157-4343600383302吊环螺栓Eyebolt
2-157-4444601513881油封Seal, oil
2-157-4545600393262挡圈Ring, retaining
2-157-4646600393252挡圈Ring, retaining
2-157-4747600384522六角螺母Nut, hex
2-157-4848600393592六角螺母Nut, hex
2-157-4949600087232挡圈Ring, retainer
2-157-5050600087372销Pin
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-159-11600085081阀杆Stem, valve
2-159-22600084931阀座Seat, valve
2-159-33600085231挡圈Ring, retaining
2-159-44600085001弹簧Spring
2-159-55600084961调节螺杆Screw, adjusting
2-159-66600085051螺母Nut
2-159-77600085121机体Body, machine
2-159-88600085521齿轮Gear
2-159-99600085811齿轮Gear
2-159-1010600084911滤芯Element, filter
2-159-1111600085091机体Body, machine
2-159-1212600087302螺钉Screw
2-159-1313600087312螺钉Screw
2-159-1414600087294螺钉Screw
2-159-1515600088731垫圈Washer
2-159-1616600085041垫圈Washer
2-159-1717600087362销Pin
2-159-1818B2301010000471O形圈O-ring
2-159-1919B2301010002291O形圈O-ring
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-161-11601186381螺栓Bolt
2-161-22601186391销Pin
2-161-33600085461销Pin
2-161-44601186371螺母Nut
2-161-55600086982O形圈O-ring
2-161-66600086978O形圈O-ring
2-161-77600087024O形圈O-ring
2-161-88A2106090000361O形圈O-ring
2-161-996000870823O形圈O-ring
2-161-1010600086941O形圈O-ring
2-161-1111601186251盖Cover
2-161-1212601186431柱塞Plunger
2-161-1313601186311阀套Sleeve, valve
2-161-1414601186321弹簧Spring
2-161-1515601186361活塞Piston
2-161-1616601186401支座Support
2-161-1717601186411支座Bearer
2-161-1818601186301密封Seal
2-161-1919601186341堵头Plug
2-161-2020601186441杠杆Lever
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-163-2121601186271机体Body, machine
2-163-2222601190192钢球Ball, steel
2-163-2323601186352阀座Seat, valve
2-163-2424601186292密封Seal
2-163-25256000872841紧定螺钉Setscrew
2-163-2626600087243堵Plug
2-163-2727601505562螺钉Screw
2-163-2828601505596螺钉Screw
2-163-2929A2102040002171螺钉M6×40GB70.1 10.9级Screw
2-163-3030600181027螺栓Bolt
2-163-3131600385654内六角螺栓Screw, socket head
2-163-3232601186261机体Body, machine
2-163-3333601190202单向阀组件Valve GP, check
2-163-3434600819171比例减压阀Valve, reducing, proportional
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-165-11127766321工作油箱Tank, hydraulic oil
2-165-22B2301010005881O形圈O-ring
2-165-33602003651回油过滤器Filter, return oil
2-165-44127311561回油盖Oil return
2-165-55601122461O形圈O-ring
2-165-66A2104050000018垫圈Washer
2-165-77127311581吸油盖Suction
2-165-88A2101110000378螺栓Bolt
2-165-99602003631吸油过滤器Oil suction filter
2-165-1010A2501000001741液位计Gauge, fluid level
2-165-1111B2301010003562O形圈O-ring
2-165-1212105142252堵头Plug

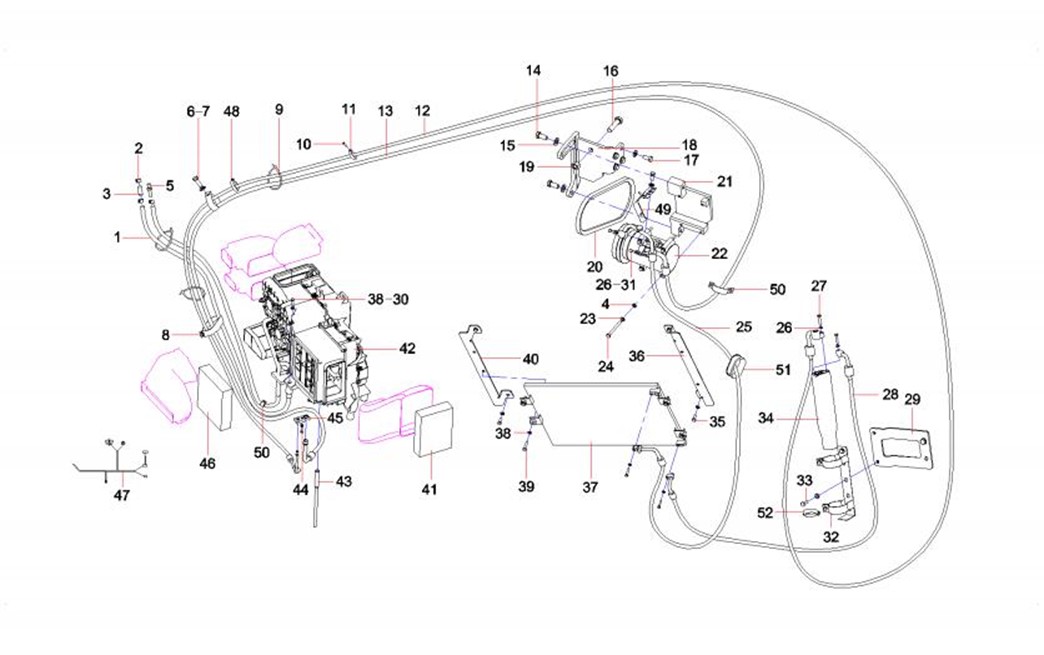

识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-167-11129269431蒸汽胶管HoseSY215C9M2K.1.8-10
2-167-22601664951管夹Clamp
2-167-33131336061变径水管reducer tubeSY215C9M2K.1.8-17
2-167-44240005114垫圈8GB93 达克锈Washer 8GB93 达克锈
2-167-55104535991管接头Connector
2-167-66A2101110001999螺栓M12×20GB5783 10.9级Bolt M12×20GB5783 10.9级
2-167-772400063913垫圈12GB97.1 达克锈washer 12GB97.1 达克锈
2-167-88600863573线束固定夹Clamp, harness
2-167-99A23990000006690尼龙扎带Strap, nylon (black)
2-167-1010A2101110000791螺栓Bolt M6×16GB5783
2-167-1111600863552线束固定夹Clamp, harness
2-167-1212600012391液体胶管Hose, rubber, liquid
2-167-1313600012351吸气胶管Hose, air intake
2-167-1414A2102040003432螺钉Screw
2-167-1515A2104440000012垫圈Washer
2-167-1616A2101110000541螺栓M16×55GB5783 10.9级Bolt
2-167-1717A2101110001014螺栓M12×25GB5783 10.9级Bolt
2-167-1818112222741压缩机支架Bracket, compressor
2-167-1919A2103070000281螺母M16GB6170 10级Nut
2-167-2020A2301060003211V带V-belt
