SANY SY365C SY365CCI2KH EXCAVATOR parts catalog 16

Meppon Co., Ltd Posted on by
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-157-11600754811杠杆Lever
2-157-22600085321杠杆Lever
2-157-33600085221杠杆Lever
2-157-44600085351活塞Piston
2-157-55600085361阀体Body, valve
2-157-66600085241推杆Pushrod, valve
2-157-77600084941弹簧座Seat, spring
2-157-88601505551弹簧-外Spring-Outer
2-157-99600085471弹簧- 内Spring, inner
2-157-1010600085261调节杆Rod, adjusting
2-157-1111601505531衬套Bushing
2-157-1212600085201活塞Piston
2-157-1313600084951弹簧座Seat, spring
2-157-1414601505511调节杆Adjuster
2-157-1515601505541弹簧Spring
2-157-1616600085031阀套Sleeve, valve
2-157-1717600085381推轴Shaft, thrust
2-157-1818600085391弹簧座Seat, spring
2-157-1919600085411弹簧Spring
2-157-2020600085401弹簧Spring
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-159-2121600087021O形圈O-ring
2-159-2222600087011O形圈O-ring
2-159-2323600087031O形圈O-ring
2-159-2424600099381垫片Gasket
2-159-2525600087481挡圈Ring, retaining
2-159-2626600087341销Pin
2-159-2727600087332销Pin
2-159-2828600087352销Pin
2-159-2929600087361销Pin
2-159-3030601505621销Pin
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-161-11601505592螺钉Screw
2-161-22601505602螺钉Screw
2-161-33601505562螺钉Screw
2-161-446015055710螺钉Screw
2-161-55601505583螺钉Screw
2-161-66601505612螺母Nut
2-161-77600085061螺母Nut
2-161-88600099372挡圈Ring, retaining
2-161-99600085461销Pin
2-161-1010600087431螺杆Screw
2-161-1111600088862钢球Ball, steel
2-161-1212600085131机体Body, machine
2-161-1313600085341堵Plug
2-161-1414600085331堵Plug
2-161-1515600084971调节螺母Nut, adjusting
2-161-1616600085291盖Cover
2-161-1717600085371螺母Nut
2-161-1818600085101机体Body, machine
2-161-1919B2299000010211转换杆Lever, change-over
2-161-2020600085481盖Cover
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-163-2121600086941O形圈O-ring
2-163-2222600087073O形圈O-ring
2-163-2323600087088O形圈O-ring
2-163-2424600086961O形圈O-ring
2-163-2525600086931O形圈O-ring
2-163-2626600087041O形圈O-ring
2-163-2727600086921O形圈O-ring
2-163-2828600087092O形圈O-ring
2-163-2929600086975O形圈O-ring
2-163-3030600087061O形圈O-ring
2-163-3131600086981O形圈O-ring

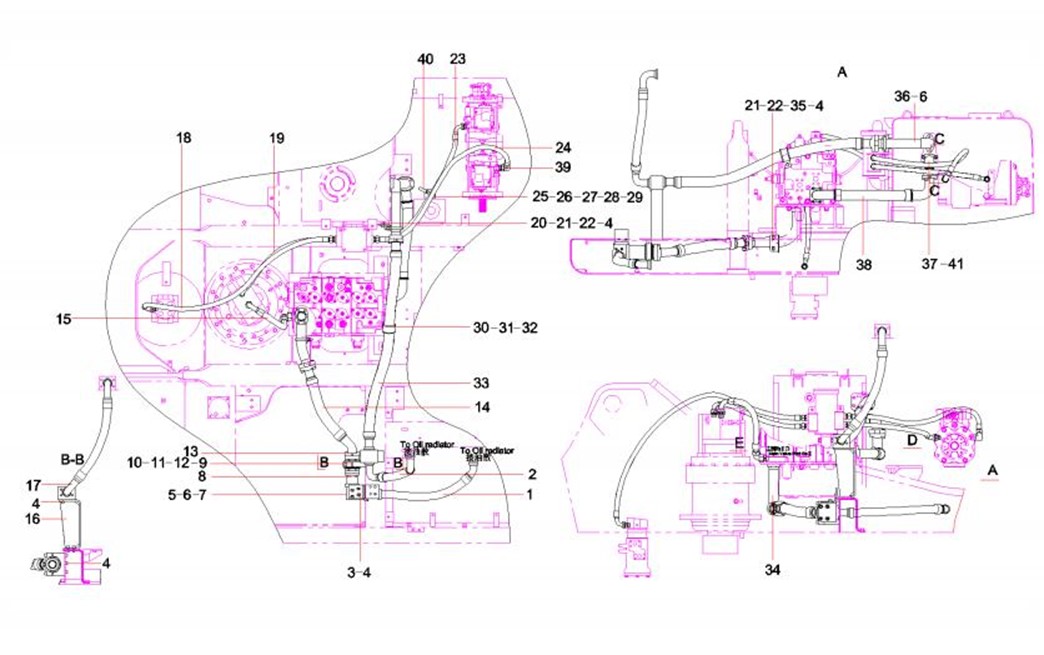

识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-165-11602120171胶管rubber hose
2-165-22602051861胶管rubber hose
2-165-33124727891支架Bracket
2-165-44A21020400016723螺钉M12×25GB70.1 10.9级Screw M12×25GB70.1 Grade 10.9
2-165-55123490601过渡块Spacer
2-165-66B2301010003664O形圈O-ring 59.4×3.1JISB2401
2-165-77A2102040003604螺钉M12×80GB70.1 10.9级Screw
2-165-88变更或见其他配置1单向阀Valve, check
2-165-99123491911固定块Block, fixing
2-165-1010123491921固定块Block, fixing
2-165-1111123491931橡胶衬套Bushing, rubber
2-165-1212A2102040003592螺钉M12×60GB70.1 10.9级Screw
2-165-1313A2102040003384螺钉M12×40GB70.1 10.9级Screw
2-165-1414601839641胶管Hose
2-165-1515B2301030022161胶管Hose
2-165-1616123492391支架Bracket
2-165-1717123491991过渡块Spacer
2-165-1818B2107800000283管接头Pipe connector
2-165-1919B2301030012391胶管Hose
2-165-2020123492021弯板Plate, bent
识别码 IC序号 INDEX零件代码 PART NUMBER数量 QTY名称 PART NAME
2-167-2121101060052U形螺栓U-bolt
2-167-2222A2103070000018螺母Nut
2-167-2323B2301030006391胶管Hose, rubber
2-167-2424B2301030002351胶管Hose, rubber
2-167-2525126271761固定支架Supporting
2-167-2626600863561线束固定夹Clamp, harness
2-167-2727A2104010000013垫圈Washer
2-167-2828A2101110000123螺栓 M10×20GB5783 10.9级Bolt
2-167-2929A2104050000113垫圈Washer
2-167-3030123492001固定卡Clip
2-167-3131123492011橡胶护套Jacket, rubber
2-167-3232A2102040000551螺钉Screw
2-167-3333601714721胶管Hose
2-167-3434123502641钢管总成Pipe GP,steel
2-167-3535124727521板Plate
2-167-3636123504981钢管总成Pipe GP,steel
2-167-3737128619941过渡块Transitional
2-167-3838601714751胶管Hose
2-167-3939B2107800008381管接头Pipe connector
2-167-4040600863551线束固定夹Clamp, harness
