识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

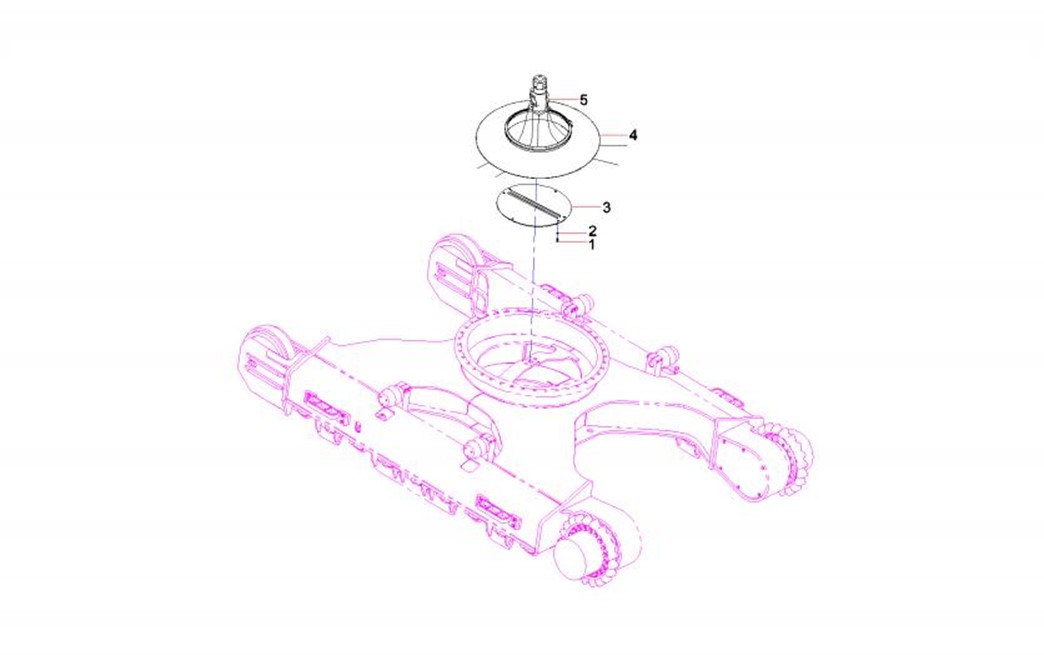

3-3-1

1

A210111000212

6

螺栓M16×35GB5783 10.9级

Bolt M16×35GB5783 10.9

3-3-2

2

A210491000118

6

垫圈

Washer 16GB1230

3-3-3

3

13688935

1

底盖板总成

Belly pan SY385C2M2KS.2C.8

3-3-4

4

11163607

1

黄油池

Chamber, grease

3-3-5

5

13691691

1

行走装置液压管路

Running device pipeline

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

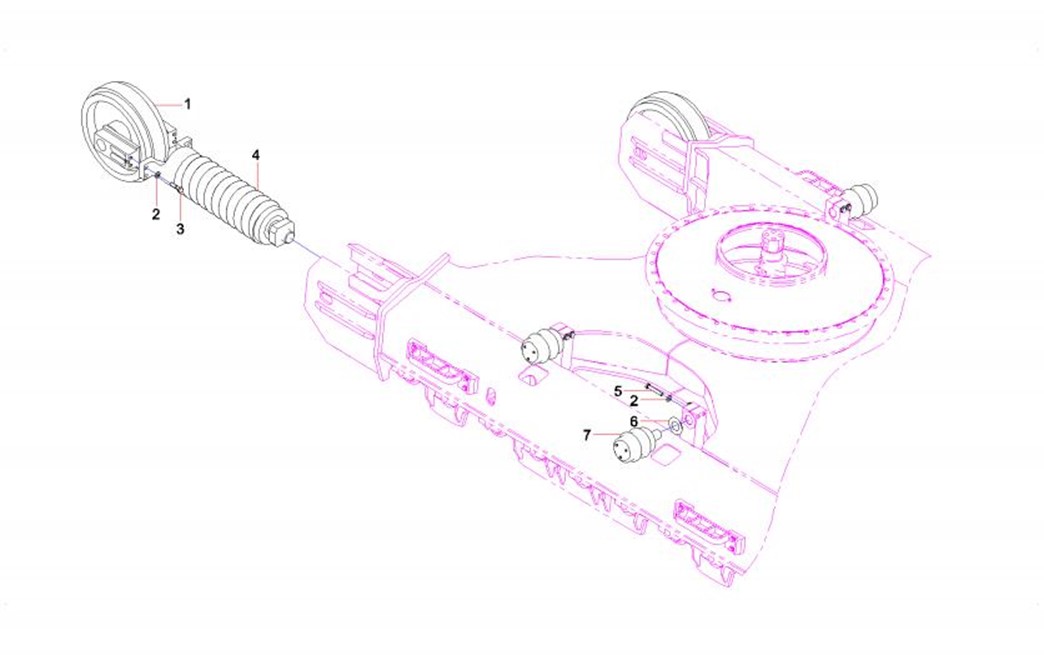

3-5-1

1

60263596

2

引导轮

Track idler

3-5-2

2

A210491000132

16

垫圈

Washer 20GB1230

3-5-3

3

A210110000202

8

螺栓M20×80GB5782 10.9级

Bolt M20×80GB5782 Grade 10.9

3-5-4

4

60058697

2

张紧装置

Tensioner

3-5-5

5

A210111000443

8

螺栓M20×120GB5783 10.9级

Bolt M20×120GB5783 10.9

3-5-6

6

10167597

12

垫片

Shim

3-5-7

7

12123787

4

托链轮总成

Roller As, carrier

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

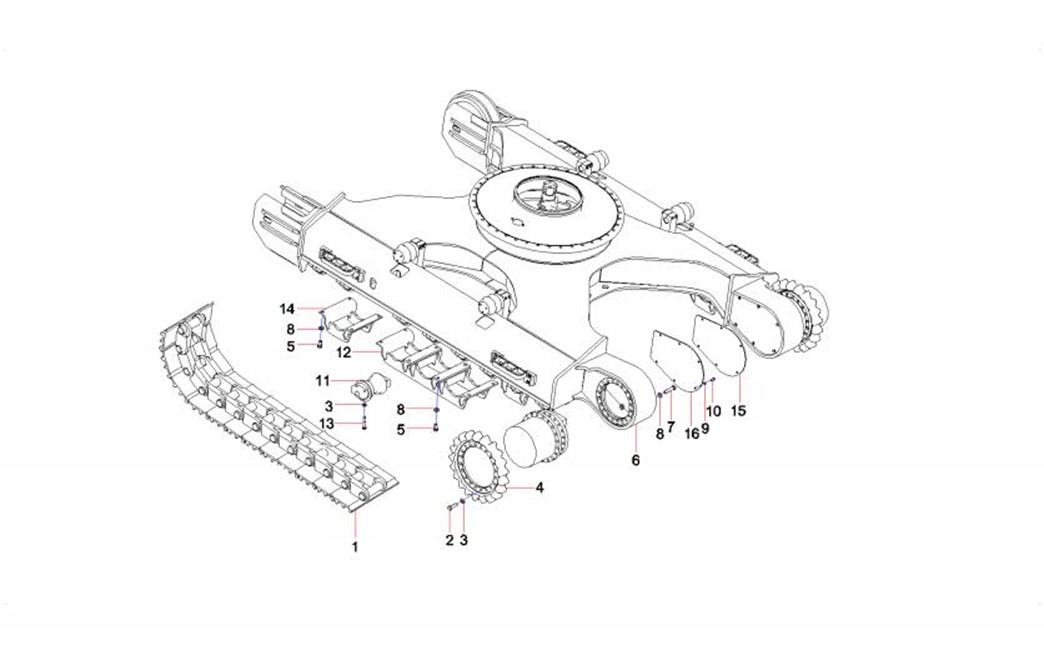

3-7-1

1

11306784

2

履带总成

Track AS

3-7-2

2

A210111000062

56

螺栓M20×60GB5783 10.9级

Bolt M20×60GB5783 10.9

3-7-3

3

A210491000132

128

垫圈

Washer 20GB1230

3-7-4

4

13547504

2

驱动轮

Driving wheel SY365C8I2KS.2E-6

3-7-5

5

A210111000346

32

螺栓M24×55GB5783 10.9级

Bolt M24×55GB5783 10.9

3-7-6

6

13688904

1

履带架

Track Frame SY385C2M2KS.2C.1

3-7-7

7

A210111000321

40

螺栓M24×80GB5783 10.9级

Bolt M24×80GB5783 10.9

3-7-8

8

A210491000122

72

垫圈

Washer 24GB1230

3-7-9

9

A210111000212

12

螺栓M16×35GB5783 10.9级

Bolt M16×35GB5783 10.9

3-7-10

10

A210401000004

12

垫圈

Washer 16GB93

3-7-11

11

12412117

18

支重轮总成

Track Roller

3-7-12

12

12040837

2

护板

Plate, guard

3-7-13

13

A210110000233

72

螺栓 M20×110GB5782 10.9级

Bolt M20×110GB5782 10.9

3-7-14

14

12040706

4

护板

Plate, guard

3-7-15

15

12310485

1

右马达盖板

Right motor cover

3-7-16

16

12310484

1

左马达盖板

Left motor cover

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

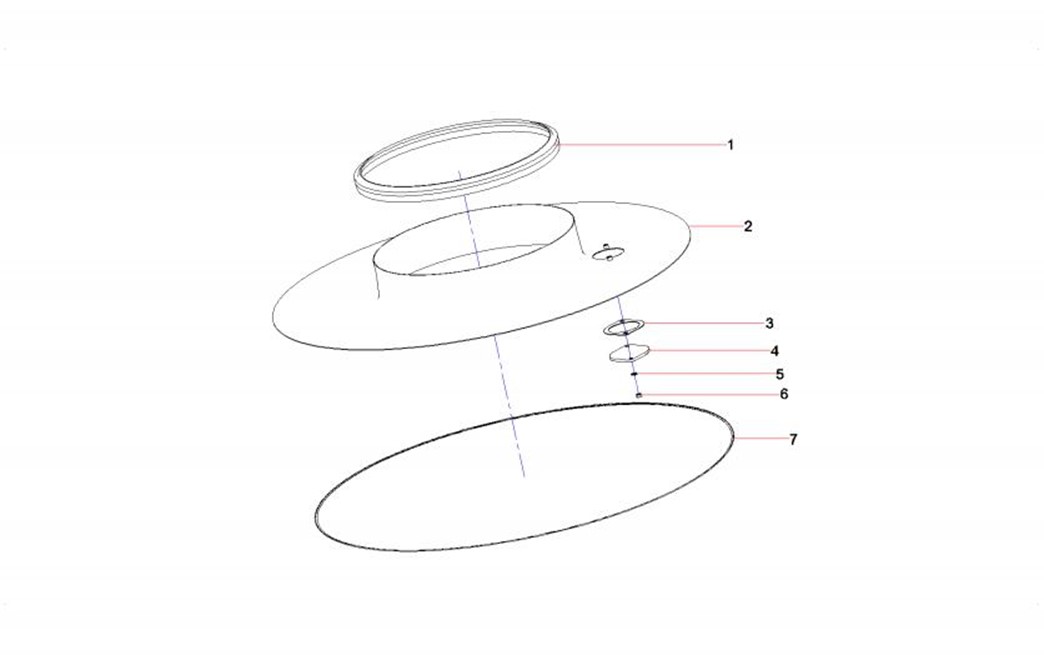

3-9-1

1

A820606020168

1

上密封圈

Ring, sealing

3-9-2

2

11163609

1

护圈

Ring, protective

3-9-3

3

A820606020170

1

胶垫

Block, rubber

3-9-4

4

A820101210192

1

密封板

Plate, sealing

3-9-5

5

A210405000011

2

垫圈

Washer 10GB97.1

3-9-6

6

A210307000017

2

螺母

Nut M10GB6170

3-9-7

7

11163606

1

下密封圈

Ring, sealing

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

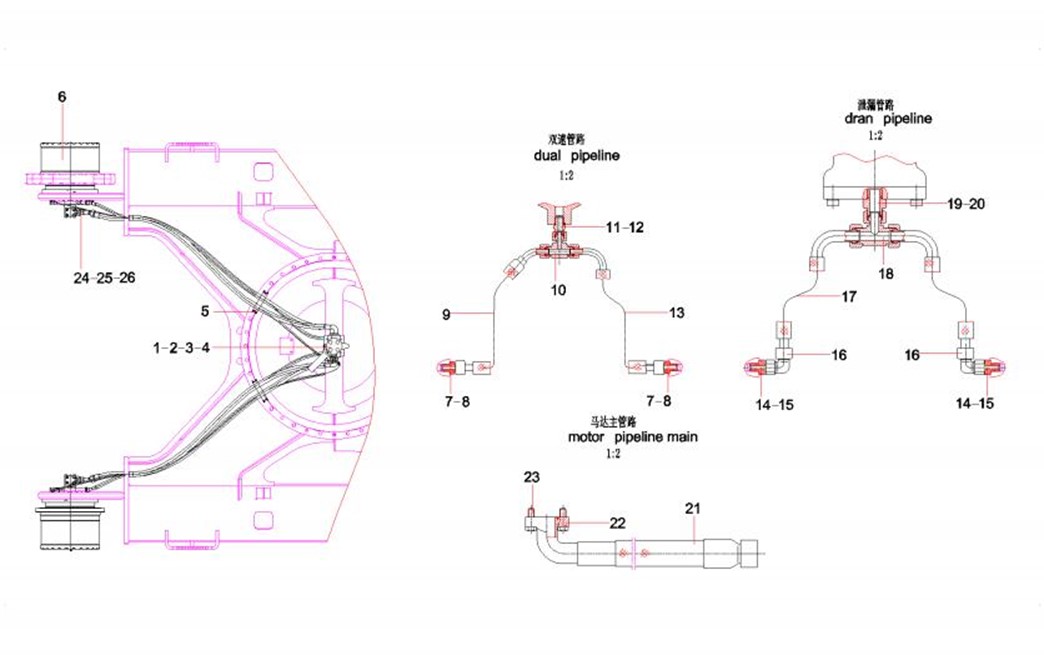

3-11-1

1

60243992

1

中央回转接头

Center Swivel Joint

3-11-2

2

12804286

1

止动座

Seat, stopping

3-11-3

3

A210111000204

8

螺栓

Bolt M12×40GB5783 10.9

3-11-4

4

24000513

8

垫圈12GB93 达克锈

Washer

3-11-5

5

A820606030424

2

护套

Sheath

3-11-6

6

A220501000109

2

减速机总成

Reducer GP

3-11-7

7

B230101000047

2

O形圈

O-ring

3-11-8

8

A820205000844

2

接头

Connector

3-11-9

9

B230103007536

1

胶管

Hose

3-11-10

10

B210780000172

1

管接头

Connector, pipe

3-11-11

11

A820205000839

1

接头

Connector

3-11-12

12

A230101000247

1

O形圈

O-ring 10.9×2.3(JISB2401)

3-11-13

13

B230103000899

1

胶管

Hose

3-11-14

14

B230101000090

2

O形圈

O-ring 17.8×2.4JISB2401

3-11-15

15

A820205000962

2

接头

Connector

3-11-16

16

60165875

2

管接头

Adaptor 45 DKOL18 CEL18

3-11-17

17

B230103004698

2

胶管

Rubber Hose

3-11-18

18

B210780001363

1

三通组合T型接头

Connector, pipe

3-11-19

19

A820205002377

1

接头

Connector

3-11-20

20

A229900001581

1

O形圈

O-ring
