序号

Item

图 号Parts No.

名    称

Name

页数

Page

备注 Remark

1

M3020-1001000

发动机悬置总成

Engine suspension assembly

2

M3015-1002000

气缸体总成

Cylinder Block Assembly

图 Drawing

3

M3001-1003000

气缸盖及气缸盖罩总成

Cylinder head & cylinder head cover assembly

Drawing

4

M3000-1004000

活塞连杆总成

Piston and Connecting Rod

Drawing

5

M3001-1005000

曲轴减振器总成

Crankshaft Vibration Damper Assembly

Drawing

6

M3400-1006000

凸轮轴总成

Camshaft Assembly

Drawing

7

M3000-1007000

配气机构总成

Valve train Assembly

Drawing

8

M3015-1008100

& M3054-1008500

进气管部件

&进气接管部件

intake pipe parts

intake connecting pipe parts

Drawing

9

M3000-1008200A

排气管部件

Exhaust Manifold Parts

Drawing

10

M3001-1009000

油底壳总成

Oil Sump Assembly

Drawing

11

M3000-1010000B

机油集滤器总成

Oil filter Assembly

Drawing

12

M3400-1011000

机油泵总成

Oil Pump Assembly

Drawing

13

M3000-1012000

机油滤清器总成

Oil filter assembly

Drawing

14

M3400-1013000

机油冷却器总成

Oil Cooler Assembly

Drawing

15

M3000-1028000

油标尺总成

Oil Dipstick Assembly

16

M3053-1104000

供给系管路总成

Fuel Supply System Assembly

Drawing

17

M3001-1105000

柴油滤清器总成

Fuel filter

Drawing

18

M3015-1109000

空气滤清器总成

Air cleaner

19

M3001-1111000

喷油泵总成

Injection Pump Assembly

20

M3000-1112000

喷油器部件

Injector

Drawing

21

M3015-1115000

断油机构总成

Fuel shutoff device assembly

22

M3000-1118000

增压器总成

Turbocharger Assembly

Drawing

23

M3015-1201000

消声器总成

Muffler

24

M3023-1303000

散热器水管及软管总成

Radiator water pipe and hose assembly

Drawing

25

M3001-1306000

调温器总成

Thermostat Assembly

Drawing

26

M3021-1307000

水泵总成

Water Pump Assembly

Drawing

27

M3015-1308000

风扇总成

Fan

28

M3015-1600000

动力输出总成

Power Output Assembly

Drawing

29

M3050-3509000

气制动空气压缩机总成

Pneumatic Air Compressor

Drawing

30

M3021-3701000

发电机总成

Alternator Assembly

Drawing

31

M3020-3708000

起动机总成

Starter Assembly

Drawing

32

M3000-3904000

铭牌

Nameplate Assembly

序号 Item

图号 Part    No.

名称

Part    Name

数量

Num.

备注

Remark

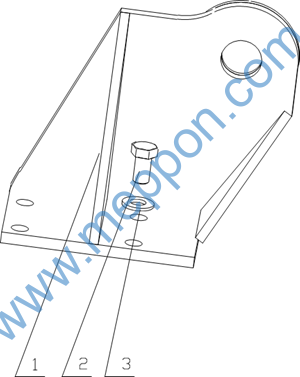

1

M3020-1001070A

前左支架

Front left

bracket

1

2

Q150B1425TF2

螺栓 M14X25

Bolt

12

3

M3015-1600412

垫圈

Washer

12

4

5

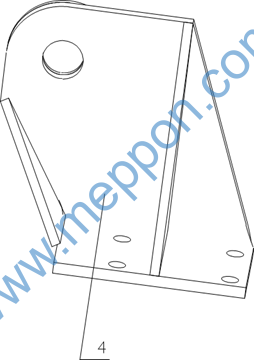

M3020-1001080

M3020-1001003

前右支架

后支脚

Front right bracket Rear

bracket

1

2

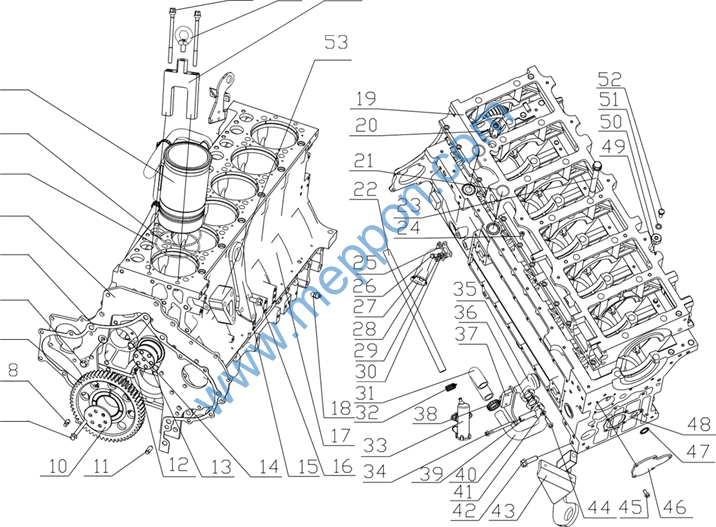

序号

Item

图    号

Parts    No.

名    称

Part Name

数量

Qty.

备    注

Remark

1

M3000-1002106B

气缸套

Cylinder liner

6

2

M3000-1002107

气缸套封水圈

Cylinder liner O ring

6

3

M3000-1002108

气缸套封水圈（II）

Cylinder liner O ring(II)

6

4

M3400-1002203D

齿轮室盖板

Gear housing cover plate

1

5

M36L1-1002202

齿轮室垫片

Gear housing washer

1

6

Q1841225TF2

螺栓 M12×25

Bolt M12×25

2

7

M3400-1002350E

大惰齿轮组件

Large idle gear parts

1

8

6105Q-1600011

扁销

Flat pin

1

9

Q/YC207-1090

螺栓

Bolt

6

10

M3400-1002311A

惰齿轮防磨板

Idler gear friction plate

1

11

YC24-B1230

圆柱销 12×30

Straight pin

1

12

Q61510

开槽柱形螺塞 M10×1

Screw plug

1

13

M3400-1002306A

惰齿轮轴

Idle gear shaft

1

14

Q/YC207-1225

螺栓

Bolt

5

15

M3001-1002141A

后吊耳

Rear engine eye

1

16

Q1841270TF2

螺栓 M12×70

Bolt M12×70

2

17

M3400-1002114D

气缸体

Cylinder block

1

M3400-1002114D*

气缸体组件

Cylinder block subassembly

1

18

M3015-3800201

机油感应器接头

Oil sensor coupling

1

19

M3400-1002123D

曲轴箱

Crankshaft housing

1

20

M3000-1002C00D

调压阀部件

Pressure adjusting valve part

1

21

M3000-1002124

密封圈

Seal ring

2

22

M3400-1002821B

回油胶管

Oil return rubber pipe

1

23

M3000-1002118A

主轴承螺栓

Main bearing bolts

14

24

Q218B0825

螺钉 M8×25

Screw M8×25

22

25

M3015-1002A01

加机油口垫片

Oil fill port gasket

1
