Parts Catalog of YUCHAI YC6M220G M3020 Diesel Engine C
|
序号 Item |
图号 Part No. |
名称 |
Part Name |
数量 Num. |
备注Remark |
|
1 |
M3400-1006007 |
凸轮轴螺栓 |
Camshaft bolt |
4 |
|
|
2 |
M3400-1006002B |
凸轮轴正时齿轮 |
Camshaft timing gear |
1 |
|
|
3 |
M3400-1006013 |
球头销 |
1 |
||
|
4 |
M3400-1006001B |
凸轮轴 |
Camshaft |
1 |
|
|
5 |
M3000-1006003 |
凸轮轴止推片 |
Camshaft thrust plate |
1 |
|
|
6 |
Q1840816TF2 |
螺栓 M8X16 |
Bolt M8×16 |
2 |
|
|

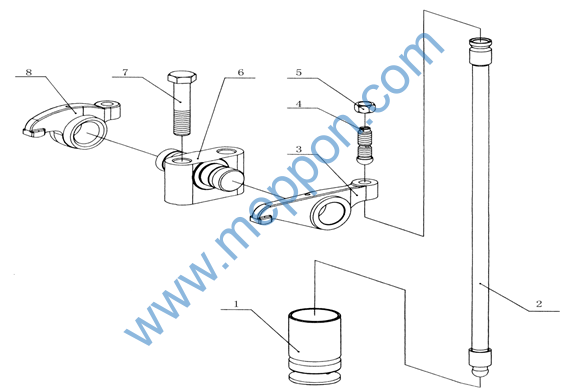

序号 Item |
图号 Part No. |
名称 |
Part Name |
数量Num. |
备注 Remark |
|
1 |
M3000-1007001 |
挺柱 |
Tappet |
12 |
|
|
2 |
M3000-1007080 |
气门推杆部件 |
Valve pushrod unit |
12 |
|
|
3 |
M3000-1007143C |
进气门摇臂 |
Intake valve rocker arm |
6 |
|
|
4 |
M3000-1007141 |
气门调整螺钉 |
Valve adjusting screw |
12 |
|
|
5 |
6105Q-1007054 |
锁紧螺母 |
Locking nut |
12 |
|
|
6 |
M3000-1007102B |
摇臂轴支座 |
Rocker arm shaft seat |
6 |
|
|
7 |
Q/YC207-1260 |
螺栓 |
Bolt |
12 |
|
|
8 |
M3000-1007153C |
排气门摇臂 |
Exhaust valve rocker arm |
6 |

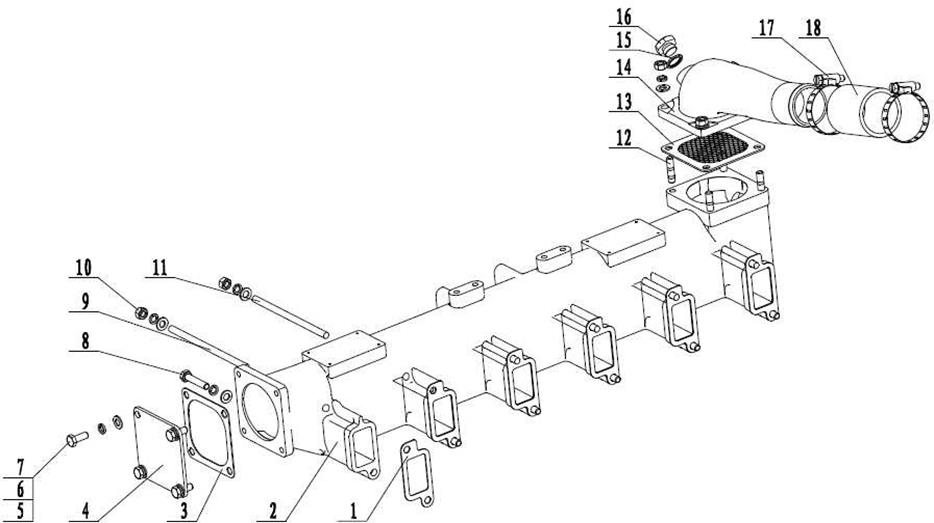

8. M3015-1008100-进气管部件intake pipe parts&M3054-1008500进气接管部件Air intake connecting parts
8.M3015-1008100 进气管部件intake pipe parts和M3054-1008500进气接管部件 Air intake connecting parts
|
序号 No. |
图 号 Part No. |
名 称 |
Part name |
数量 Qty. |
备 注 Remarks |
|
1 |
M3000-1008104B |
进气管垫片 |
Air intake gasket |
6 |
|
|
2 |
M3000-1008101G |
进气管 |
Air intake pipe |
1 |
|
|
3 |
A3100-1008016 |
进气接管垫片 |
Air intake pipe gasket |
1 |
|
|
4 |
L3000-1008019 |
盖板 |
Cover board |
1 |
|
|
5 |
Q150B1025 |
螺栓 M10X25 |
Bolt |
4 |
|
|
6 |
Q40310 |
垫圈 10 |
Washer |
20 |
|
|
7 |
Q40110 |
垫圈 10 |
Washer |
20 |
|
|
8 |
Q150B1050 |
螺栓 M10X50 |
Bolt |
6 |
|
|
9 |
Q12010180 |
螺柱 M10X180 |
Bolt |
3 |
|
|
10 |
Q340B10 |
螺母 M10 |
Bolt |
10 |
|
|
11 |
Q12010170 |
螺柱 M10X170 |
Stud |
3 |
|
|
12 |
Q1201030 |
螺柱 M10X30 |
Stud |
4 |
|
|
13 |
A3100-1008013 |
垫片 |
Gasket |
1 |
|
|
14 |
M3020-1008102A |
进气接管 |
Air intake connecting pipe |
1 |
|
|
15 |
Q/YC149-20 |
复合式密封垫圈 20 |
Seal ring washer |
2 |
|
|
16 |
Q/YC198-20 |
螺塞 M20X1.5 |
Screw plug |
2 |
|
|
17 |
Q67683 |
环箍 83 |
Loop hoop |
2 |
|
|
M3000-1008103 |
连接软管 |
Connecting hose |
1 |

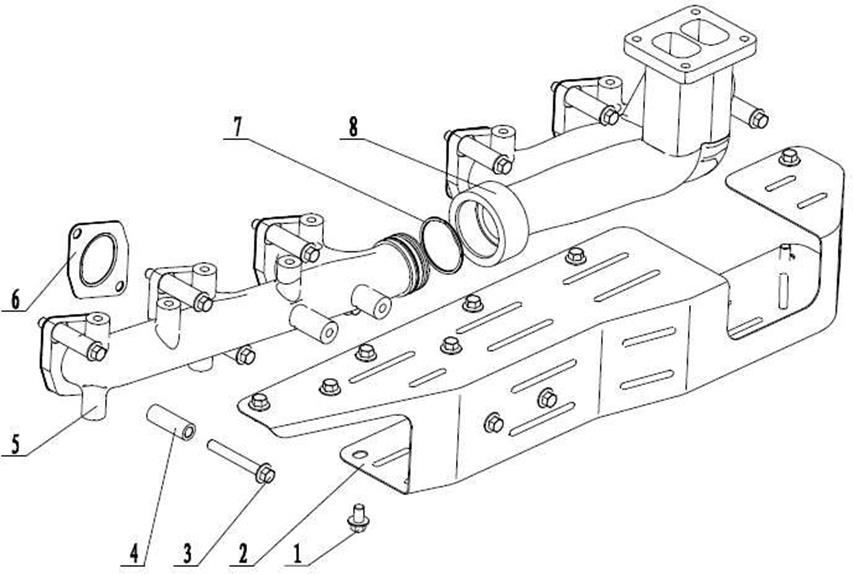

9.M3000-1008200A-排气管部件 Exhaust Manifold Parts
|
序号 No. |
图 号 Part No. |
名 称 |
Part name |
数量 Qty. |
备 注 Remarks |
|
1 |
Q1841016 |
螺栓 M10X16 |
Bolt |
14 |
|
|
2 |
M3020-1008211 |
排气管罩 |
Exhaust pipe cover |
1 |
|
|
3 |
Q1841075TF2 |
螺栓 M10X75 |
Bolt |
12 |
|
|
4 |
J5600-1008026 |
螺栓套 |
Bolt sleeve |
12 |
|
|
5 |
M3000-1008201E |
前排气管 |
Front exhaust pipe |
1 |
|
|
6 |
M3400-1008250D |
排气管垫片组件 |
Exhaust pipe gasket parts |
6 |
|
|
7 |
M3000-1008223 |
密封环 |
Seal ring |
2 |
|
|
8 |
M3020-1008202A |
后排气管 |
Rear exhaust pipe |
1 |
