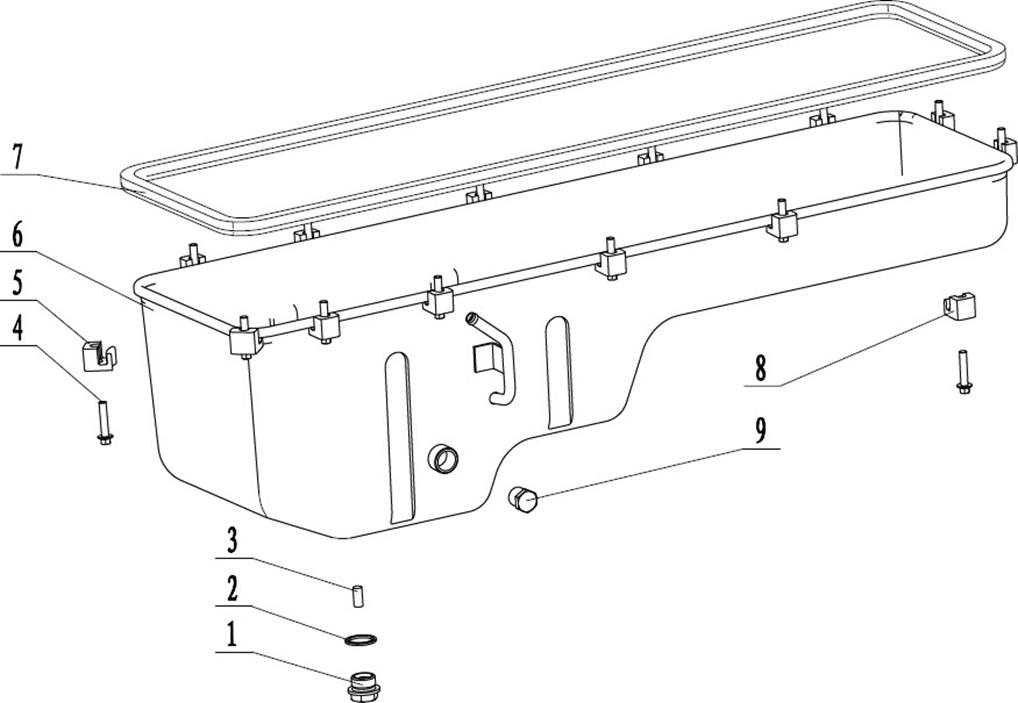

Parts Catalog of YUCHAI YC6M220G M3020 Diesel Engine D
|
序号 No. |
图 号 Part No. |
名 称 |
Name 数量 Qty. |
备 注 Remarks |
|
|
1 |
6105Q-1009031C |
放油塞 |
Oil drain plug |
1 |
|
|
2 |
Q/YC149-27 |
复合式密封垫圈 27 |
Compound seal washer 27 |
1 |
|
|
3 |
6105Q-1009032A |
放油塞磁铁 |
Oil drain plug magnet |
1 |
|
|
4 |
Q1840840TF2 |
螺栓 M8X40 |
Bolt M8X40 |
14 |
|
|
5 |
L3000-1009002 |
油底壳压块 |
Oil sump pressure block |
2 |
|
|
6 |
M3001-1009040A |
油底壳组件 |
Oil sump assembly |
1 |
|
|
7 |
M3400-1009001B |
油底壳垫片 |
Oil sump gasket |
1 |
|
|
8 |
M3000-1009002 |
油底壳压块 |
Oil sump pressure block |
12 |
|
|
9 |
Q618B04 |
螺塞NPT 1/2 |
Screw plug NPT 1/2 |
1 |
|
|

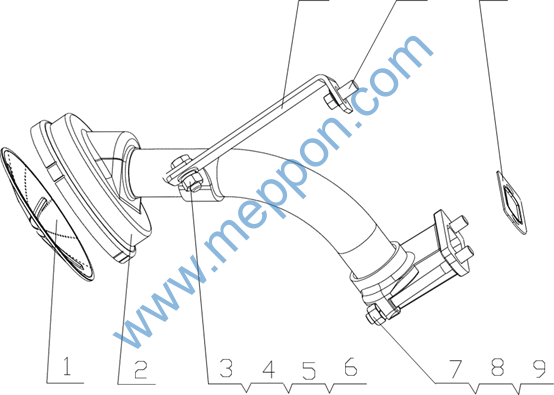

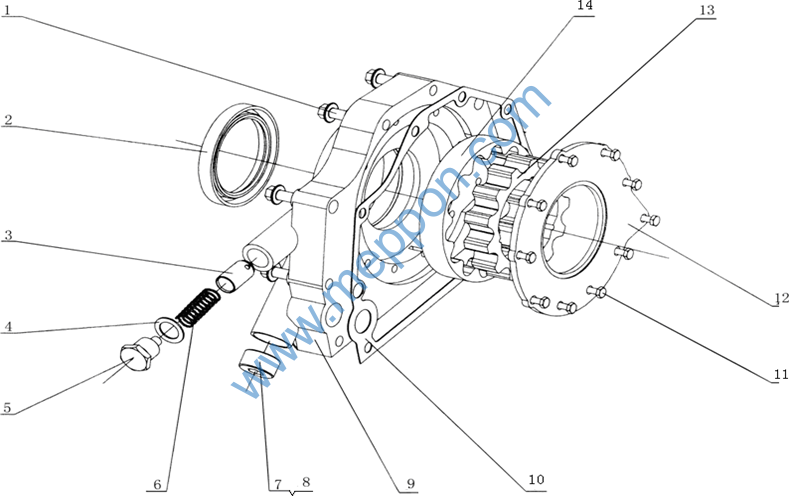

序号 Item |
图号 Part No. |
名称 |
Part Name |
数量Num. |
备注Remark |
|
1 |
6105QA-1010130B |
滤网总成 |
Strainer assembly |
1 |
|
|
2 |
M3000-1010100D |
吸油管部件 |
Oil suction pipe parts |
1 |
|
|
3 |
Q150B1025 |
螺栓 M10X25 |
Bolt |
1 |
|
|
4 |
Q340B10 |
螺母 M10 |
Nut |
1 |
|
|
5 |
Q40310 |
垫圈 10 |
Washer |
1 |
|
|
6 |
Q40110 |
垫圈 10 |
Washer |
1 |
|
|
7 |
GB/T899-G1095 |
螺柱 GM10X95 |
Bolt |
2 |
|
|
8 |
Q340B10 |
螺母 M10 |
Nut |
2 |
|
|
9 |
Q40310 |
垫圈 10 |
Washer |
2 |
|
|
10 |
M3400-1010150B |
垫片组合件 |
Gasket |
1 |
|
|
11 |
Q1841020 |
螺栓 M10X20 |
Bolt |
1 |
|
|
12 |
M3000-1010105 |
进油管支架 |
Oil inlet pipe bracket |
1 |
|
序号 Item |
图号 Part No. |
名称 |
Part Name |
数量Num. |
备注Remark |
|
1 |
Q1841050 |
螺栓 |
Bolt M10×50 |
5 |
|
|
Q1841060 |
螺栓 |
Bolt M10×60 |
1 |
||
|
Q1841075 |
螺栓 |
Bolt M10×75 |
1 |
||
|
Q1841080 |
螺栓 |
Bolt M10×80 |
1 |
||
|
2 |
GB/T9877.1 |
后油封 FB82×105×13F |
Seal ring |
1 |
易损件 EWP |
|
3 |
M3400-1011109 |
滑阀 |
Sliding valve |
1 |
|
|
4 |
Q/YC149-22 |
复合式密封垫圈 22 |
Seal ring washer |
1 |
|
|
5 |
M3400-1011106 |
阀塞 |
Valve plug |
1 |
|
|
6 |
M3400-1011107 |
弹簧 |
Spring |
1 |
|
|
7 |
M3400-1011115 |
堵塞 |
Plug |
1 |
|
|
8 |
Q/YC149-30 |
复合式密封垫圈 30 |
Seal ring washer |
1 |
|
|
9 |
M3400-1011101A |
机油泵体 |
Oil pump body |
1 |
|
|
10 |
M3400-1011015 |
机油泵垫片 |
Oil pump gasket |
1 |
易损件 EWP |
|
11 |
Q150B0820TF2 |
螺栓 M8X20 |
Bolt M8×20 |
10 |
|
|
12 |
M3400-1011105A |
机油泵盖 |
Oil pump cover |
1 |
|
|
13 |
M3400-1011142A |
内转子 |
Inner rotor |
1 |
|
|
14 |
M3400-1011143A |
外转子 r |
Outer roto |
1 |
|
序号 Item |
图号 Part No. |
名称 |
Part Name |
数量 Num. |
备注 Remark |
|
1 |
M3000-1012002 |
机油滤清器垫片 |
Oil filter gasket |
1 |
易损件 EWP |
|
2 |
M3000-1012200B |
机油滤清器部件 |
Oil filter unit |
1 |
|
|
3 |
Q1841055 |
六角法兰面螺栓 M10×55 |
Flange hex bolt |
4 |
|
|
4 |
Q18410160 |
六角法兰面螺栓 M10×160 |
Flange hex bolt M10×160 |
1 |
|
|
5 |
Q18410130 |
六角法兰面螺栓 M10×130 |
Flange hex bolt M10×130 |
1 |
