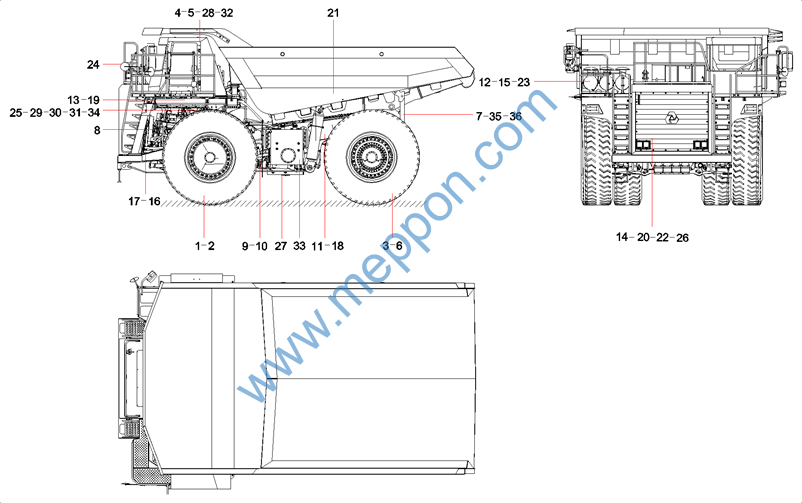

SANY SRT95C Off-highway truck 14RT95100040 PARTS BOOK 01
Item No. |
Part No. |
Description |
Qty. |
Remark |
1 |
11605564 |
Front wheel assembly |
2 |
|
2 |
13320708 |
Front axle assembly SRT95C.032 |
1 |
|
3 |
12952346 |
Rear axle assembly and installation |
1 |
|
4 |
12952471 |
Accessories of cab |
1 |
|
5 |
12952315 |
Subassembly of rigid dump |
1 |
|
6 |
11508133 |
Rear wheel assembly |
2 |
|
7 |
11945738 |
Rear Suspension System |
2 |
|
8 |
12955811 |
Engine installation |
1 |
|
9 |
10504472 |
Transmission oil filter assembly |
1 |
|
10 |
12951889 |
Transmission and mounting |
1 |
|
11 |
10511218 |
Driveline installation |
1 |
|
12 |
12951956 |
Air cleaner and pipeline installation |
1 |
|
13 |
13367057 |
Exhaust tube installation srt95c.191 |
1 |
|
14 |
12951932 |
Radiator and pipeline installation |
1 |
|
15 |
10506336 |
Water tank mounting and lines |
1 |
|
16 |
10495190 |
Disc brake oil cooler installation assembly |
1 |
|
17 |
12950173 |
Tranmission cooling piping mounting |
1 |
|
18 |
12955995 |
Frame component |
1 |
|
19 |
12950946 |
Fender and platform mounting |
1 |
|
20 |
12952088 |
Air-conditioner pipeline installation |
1 |
|
21 |
12953150 |
Body and mounting |
1 |
|
22 |
12950841 |
Radiator guard assembly |
1 |
Item No. |
Part No. |
Description |
Qty. |
Remark |
23 |
12939118 |
Battery installation |
1 |
|
24 |
12931513 |
Illuminating lamp installation |
1 |
|
25 |
12927135 |
Cable and harness |
1 |
|
26 |
12926818 |
Vehicle detecting assembly |
1 |
|
27 |
12952808 |
Fuel tank assembly and pipeline installation |
1 |
|
28 |
12953022 |
Steering pipeline |
1 |
|
29 |
12954513 |
Lifting pipeline |
1 |
|
30 |
13428981 |
Cooling pipeline for discs braking SRT95 |
1 |
|
31 |
12954489 |
Brake pipeline and adaptor |
1 |
|
32 |
13237984 |
Brake pipeline and adaptor SRT95C.615A |
1 |
|
33 |
13294563 |
Hydraulic oil tank installation SRT95C.6 |
1 |
|
34 |
12954463 |
Steering pipeline and pipe joint |
1 |
|
35 |
12953547 |
Labeling layout |
1 |
|
36 |
12943163 |
Manual lubrication system |
1 |
PARTS BOOK
PARTS BOOK
Group 2

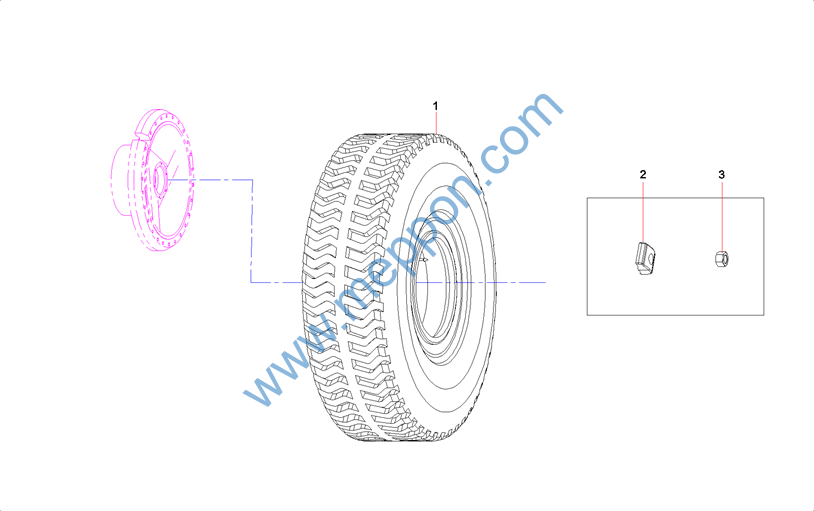

Front wheel assembly
Front wheel assembly
SRT95C Off-highway truck PARTS BOOK
Item No. |
Part No. |
Description |
Qty. |
Remark |
1 |
11605565 |

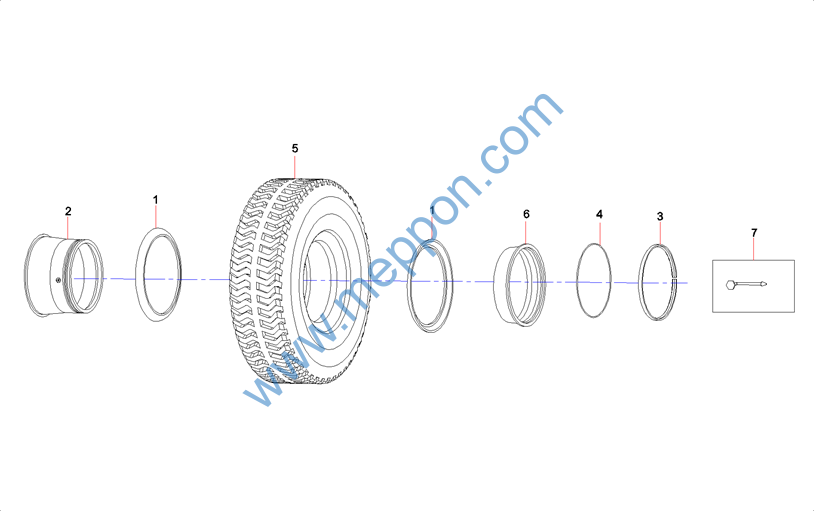

Tyre and rim assembly |
1 |
|
2 |
10235251 |
Clamp |
26 |
|
3 |
60010517 |
Nut M24 10 grade |
26 |
