Item No.

Part No.

Description

Qty.

Remark

1

60036995

Flange

2

2

60036991

Rim

1

3

60036993

Lockring

1

4

60037011

O-ring

1

5

60004579

Tyre

1

6

60037008

Band-bead Seat

1

7

60037002

Valve Stem Assy

1

Item No.

Part No.

Description

Qty.

Remark

1

13320616

Right front axle assembly SRT95C.032.2

1

2

12920652

Steering mechanism

1

3

13320599

Left front axle assembly SRT95C.032.1

1

4

12940327

Brace piece axial pin

2

5

60060548

Washer 12GB96.1

6

6

24000513

Washer 12GB93 DACROMET

6

7

A210111000199

Bolt M12×20GB5783 Grade 10.9

2

8

12940332

Brace piece axial pin

2

9

12940324

Sleeve

8

10

12940332

Brace piece axial pin

2

Item No.

Part No.

Description

Qty.

Remark

1

13274215

Front suspension cylinder SRT95C.032.1.1

1

2

13298846

Assembly of front oil-cooled disc brake

1

3

13295273

Front wheel and installation SRT95C.032.

1

4

12889569

Steering arm assembly

1

5

A229900003095

Spacer

8

6

60225023

Bolt

8

7

13072498

Right A-shape arm assembly SRT95C.031.2.

1

8

60211393

Spherical Plain Bearing

1

9

12929965

Baffle

1

10

A210491000122

Washer

4

11

21030883

Bolt

4

12

12910244

Steering arm plate

1

13

A210491000118

Washer

3

14

24000015

Bolt

3

15

11620190

Steel wire

1

16

60211392

Spherical Plain Bearing

4

17

A210416000046

Ring,retainer

2

18

A210804000002

Oil cup

2

19

A210111000053

Bolt M16×40GB5783 Grade 10.9

2

20

12969724

Step assembly

1

Item No.

Part No.

Description

Qty.

Remark

1

A230101000660

O-ring

2

2

60014452

Nut

25

3

13297754

Double threaded stud SRT95C.032.1.3-6

25

4

A229900010412

Plug

2

5

A229900010221

Bolt

113

6

11189880

Washer

113

7

A230101000654

D seal ring

1

8

11189894

Return pin

24

9

11189884

Retainer pin

24

10

11189888

Spring

24

11

11189879

Retainer plate

24

12

A230101000655

D seal ring

1

13

A210111000342

Bolt M8×16GB5783 10.9 grade

48

14

11189889

Service brake piston

1

15

A230101000662

O-ring

2

16

B229900006164

Dampening plate

2

17

B229900006165

Friction plate

4

18

B229900006166

Friction disc

5

19

13297318

Driving wheel SRT95C.032.1.3-2

1

20

11189876

Washer

24

21

A210110000427

Bolt M24×90GB5782 Grade 10.9

24

22

60127269

O-ring

1

Item No.

Part No.

Description

Qty.

Remark

23

A210204000221

Screw

12

24

A210491000120

Washer

12

25

13297031

Outter seal housing SRT95C.032.1.3-1

1

26

60253495

Floating oil seal

1

27

13297422

Housing SRT95C.032.1.3-3

1

28

13297611

Disc housing SRT95C.032.1.3-4

1

29

11189883

Pin

1

30

13297644

Piston housing SRT95C.032.1.3-5

1

31

11189893

Bleeder screw

2

32

11189886

Dust boot

2

33

60000005

Plug

2

Item No.

Part No.

Description

Qty.

Remark

1

11608492

Bushing

1

2

B221500000557

Bearing

1

3

13292265

Front wheel SRT95C.032.1.4-1

1

4

10235249

Stud

26

5

A210434000010

Washer

2

6

A229900009069

Plug

2

7

60004581

Bearing

1

8

11608493

Shim

4

9

11608494

Shim

3

10

11608495

Shim

2

11

11608498

Plate

1

12

24002266

Bolt M20×65(GB32.1) Grade 10.9

6

13

11609378

Lockwire

1

14

60161452

O-ring

1

15

13292266

Cover SRT95C.032.1.4-7

1

16

24000513

Washer 12GB93 DACROMET

6

17

24000303

Bolt M12×40GB5783 Dacroment

6

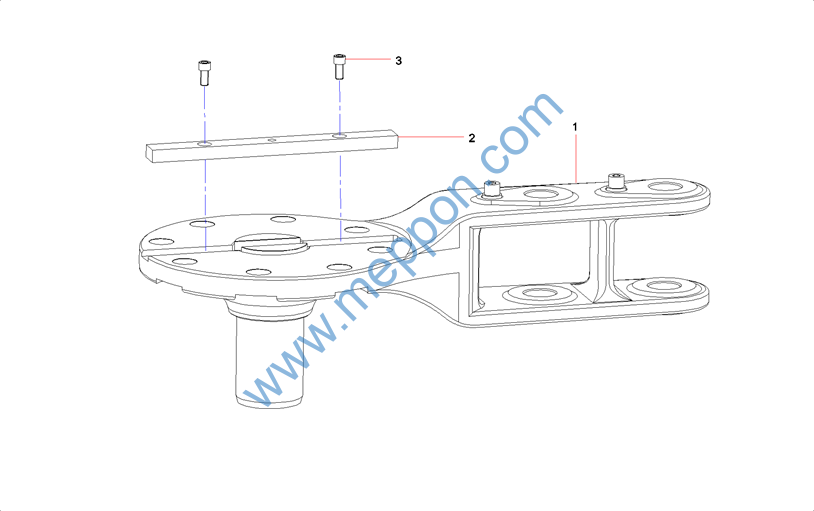

Item No.

Part No.

Description

Qty.

Remark

1

12888558

Steering arm welding assembly

1

2

60009346

Key

1

3

A210204000167

Screw

2

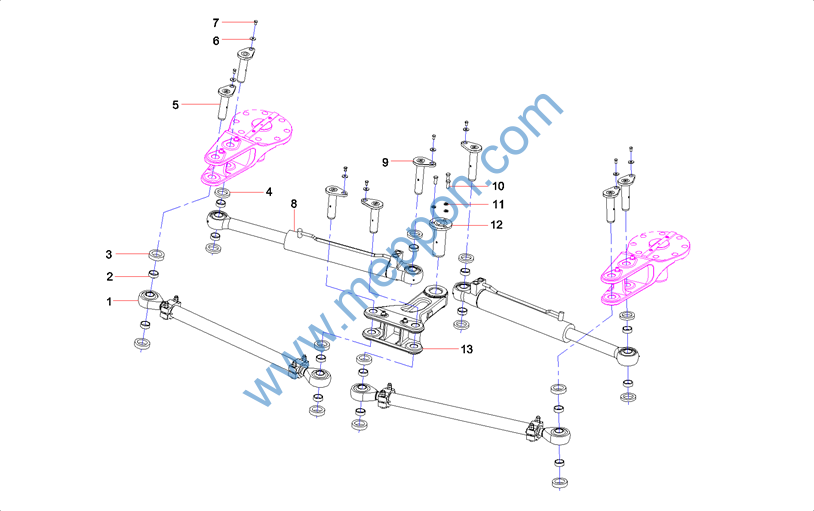

Item No.

Part No.

Description

Qty.

Remark

1

12903209

Tie rod assembly

2

2

11618908

Locating bushing

16

3

11618914

Dust cover

8

4

11618909

Dust cover

8

5

12906951

Tie rod pin assembly

6

6

60060548

Washer 12GB96.1

8

7

A210111000199

Bolt M12×20GB5783 Grade 10.9

8

8

60212671

Steering cylinder

2

9

12906952

Cylinder pin assembly

2

10

A210111000106

Bolt

3

11

A210491000118

Washer

3

12

12907439

Pin assembly

1

13

12890691

Steering crank assembly

1

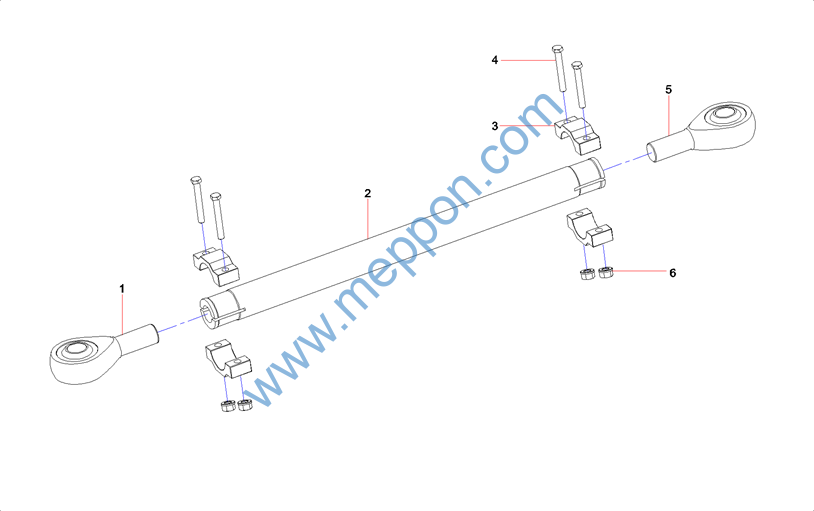

Item No.

Part No.

Description

Qty.

Remark

1

60211394

Spherical Plain Bearing

1

2

12902846

Tie rod body

1

3

12902847

Tie rod clip

4

4

A210111000447

Bolt

4

5

60211395

Spherical Plain Bearing

1

6

60024266

Nut M16 10 grade

4

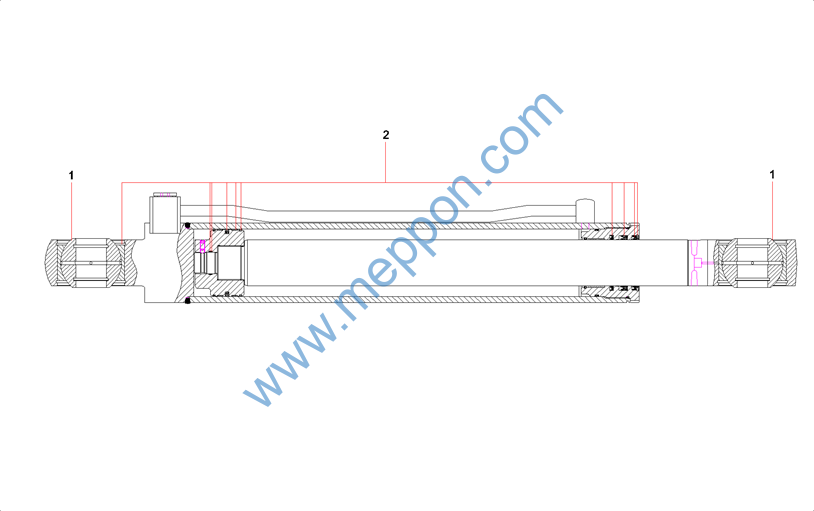

Item No.

Part No.

Description

Qty.

Remark

1

60211391

Spherical Plain Bearing

2

2

60231041

Repair kit of SRT95C steering cylinder

1

Item No.

Part No.

Description

Qty.

Remark

1

12888559

Crank welding body

1

2

12890383

Crank spacer

2

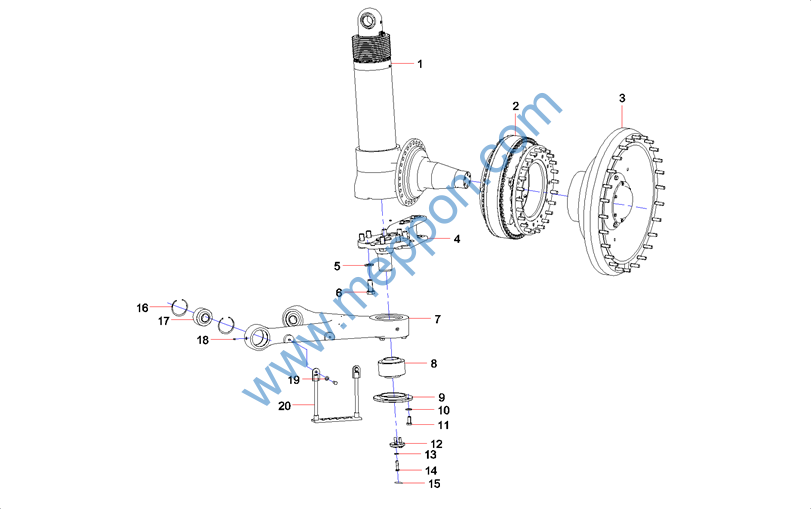

Item No.

Part No.

Description

Qty.

Remark

1

13274215

Front suspension cylinder SRT95C.032.1.1

1

2

13298846

Assembly of front oil-cooled disc brake

1

3

13295273

Front wheel and installation SRT95C.032.

1

4

12889569

Steering arm assembly

1

5

A229900003095

Spacer

8

6

60225023

Bolt

8

7

13072497

A-shape arm assembly(Right)

1

8

60211393

Spherical Plain Bearing

1

9

12929965

Baffle

1

10

A210491000122

Washer

4

11

21030883

Bolt

4

12

12910244

Steering arm plate

1

13

A210491000118

Washer

5

14

24000015

Bolt

3

15

11620190

Steel wire

1

16

60211392

Spherical Plain Bearing

4

17

A210416000046

Ring,retainer

2

18

A210804000002

Oil cup

2

19

A210111000053

Bolt M16×40GB5783 Grade 10.9

2

20

12969724

Step assembly

1
