序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4110705245

桥驱用355/55D625（右）灰色无痕轮胎总成

Tyre355/55d625-14ssm101（right）-bridge-gnm

Y

1

2

4110705388

前驱动桥-CA581494S

Front driving axle

Y

1

3

25040006862

前桥连接车架

Plate

Y

2

4

25040006911

轴44.45*127

Shaft

Y

2

5

4011010722

螺栓GB5783-M10*25flZnyc-8.8-480

Bolt gb5783-m10*25flznyc-8.8-480

Y

2

6

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

6

7

25200000641

插销

Pin，10*70

Y

2

8

4011010763

螺栓GB5782-M20*100flZnyc-12.9-480

Bolt gb5782-m20*100flznyc-12.9-480

Y

4

9

4015010338

垫圈GB97.1-20flZnyc-300HV-480

Washer gb97.1-20flznyc-300hv-480

Y

20

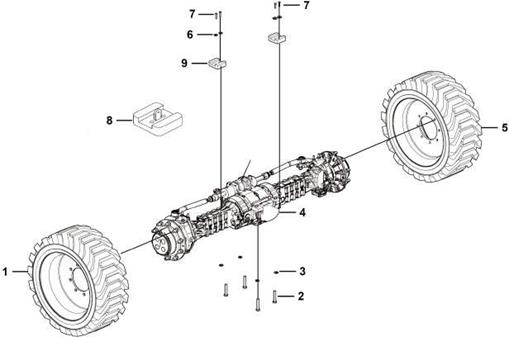

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4110705244

桥驱用355/55D625（左）灰色无痕轮胎总成

Tyre355/55d625-14ssm101（light）-bridge-gnm

Y

1

2

4011010763

螺栓GB5782-M20*100flZnyc-12.9-480

Bolt gb5782-m20*100flznyc-12.9-480

Y

4

3

4015010338

垫圈GB97.1-20flZnyc-300HV-480

Washer gb97.1-20flznyc-300hv-480

Y

4

4

4110705389

后驱动桥-CA581495S

Rear driving axle

Y

1

5

4110705245

桥驱用355/55D625（右）灰色无痕轮胎总成

Tyre355/55d625-14ssm101（right）-bridge-gnm

Y

1

6

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

4

7

4014010339

螺钉GB70.1-M10*40flZnyc-8.8-480

Screw gb70.1-m10*40flznyc-8.8-480

Y

4

8

25050004311

左后桥限位板焊合

Weldment,left rear axle limited plate

Y

1

9

25050003962

后桥限位块

Rear axle limited plate

Y

2

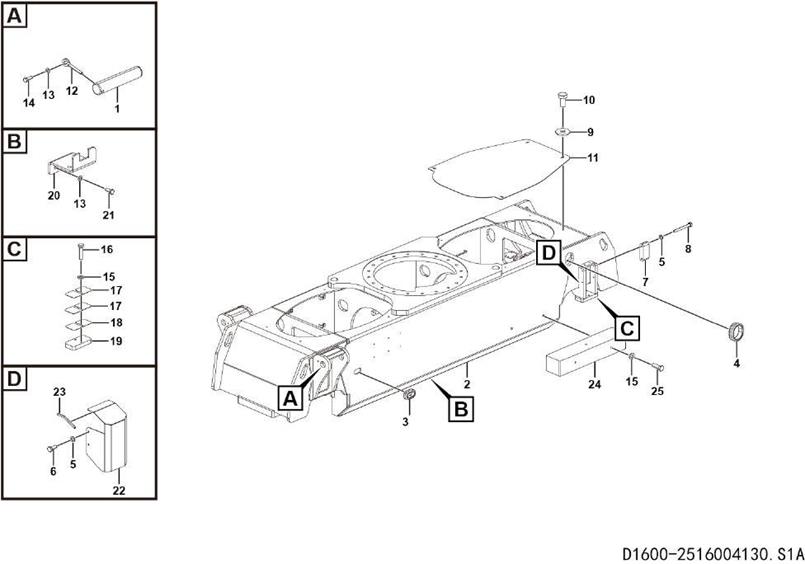

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25160034651

浮动油缸销轴

Floating cylinder pin

Y

2

2

25160044242

底盘焊接

Chassis welding

Y

1

3

25160000401

橡胶套

Rubber gromet，30*36*12

Y

2

4

25160035091

橡胶套Ⅲ

Rubber sleeve

Y

9

5

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

6

4011010711

螺栓GB5783-M8*20flZnyc-8.8-480

Bolt gb5783-m8*20flznyc-8.8-480

Y

2

7

25110001502

尼龙垫块

Nylon spacer

Y

1

8

4011011466

螺栓GB5782-M8*70flZnyc-8.8-480

Bolt gb5782-m8*70flznyc-8.8-480

Y

2

9

4015010289

垫圈GB96.1-8flZnyc-480

Washer gb96.1-8flznyc-480

Y

8

10

4011010970

螺栓GB5783-M8*16flZnyc-8.8-480

Bolt gb5783-m8*16flznyc-8.8-480

Y

8

11

25160034592

车架盖板

Frame cover plate

Y

2

12

25200000641

插销

Pin，10*70

Y

2

13

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

4

14

4011010707

螺栓GB5783-M10*30flZnyc-8.8-480

Bolt gb5783-m10*30flznyc-8.8-480

Y

2

15

4015010340

垫圈GB97.1-12flZnyc-300HV-480

Washer gb97.1-12flznyc-300hv-480

Y

8

16

4011010981

螺栓GB5783-M12*50flZnyc-8.8-480

Bolt gb5783-m12*50flznyc-8.8-480

Y

4

17

25160034741

限位调节板

Limited adjusting plate

Y

4

18

25160034841

限位调节板Ⅱ

Limited adjusting plate

Y

2

19

25050003954

后桥限位调节板

Plate

Y

2

20

25160035002

中心回转接头限位板

Central slewing joint limited plate

Y

1

21

4011010722

螺栓GB5783-M10*25flZnyc-8.8-480

Bolt gb5783-m10*25flznyc-8.8-480

Y

2

22

25110001632

浮动阀护罩

Floating valve hood

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4190707275

包边条492990-155mm

Block gine

Y

1

24

25160044411

底盘配重

Weight

Y

2

25

4011011125

螺栓GB5783-M12*35flZnyc-8.8-480

Bolt gb5783-m12*35flznyc-8.8-480

Y

4
