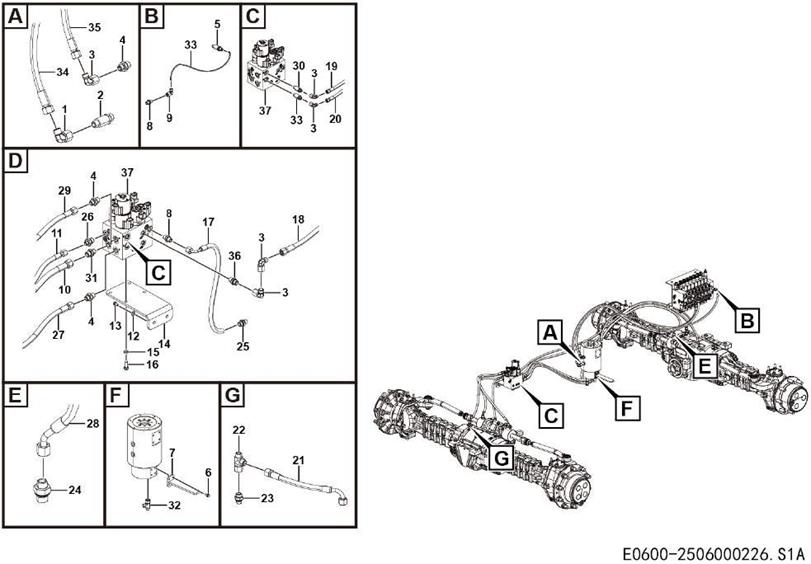

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4129900314

接头EW12LOMDA3C

Fitting ew12lomda3c

Y

2

2

4120706890

加高接头GE12LREDOMDCF-H60

Joint

Y

2

3

4120001166

接头EW10LOMDCF

Fitting ew10lomdcf

Y

8

4

4120001165

接头GE10LR3/8EDOMDCF

Fitting ge10lr3/8edomdcf

Y

5

5

4120706852

接头GE08LREDOMDCF-H55

Joint ge08lredomdcf-h55

Y

1

6

4011010964

螺栓GB16674-M8*16flZnyc-8.8-480

Bolt gb16674-m8*16flznyc-8.8-480

Y

4

7

25060002121

中回拨叉总成

Plate

Y

1

8

4120001170

接头GE08LREDOMDCF

Fitting ge08lredomdcf

Y

3

9

4190000698

接头EW08LOMDA3C

Fitting ew08lomda3c

Y

1

10

4120704933

软管FC402CACA121206-800

Pipe fc402caca121206-800

Y

1

11

4120704993

软管F481CACF080804-800

Hose assembly

Y

1

12

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

2

13

4011010748

螺栓GB5783-M10*20flZnyc-8.8-480

Bolt gb5783-m10*20flznyc-8.8-480

Y

2

14

25060002201

阀安装板焊合

Valve mounting plate welding

Y

1

15

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

16

4011010711

螺栓GB5783-M8*20flZnyc-8.8-480

Bolt gb5783-m8*20flznyc-8.8-480

Y

4

17

4120705075

软管F481CACF080804-1180

Hose assembly

Y

1

18

4120709600

软管FC402CACE101005-800

Tube

Y

1

19

4120709598

软管F481CACE101005-950

Tube

Y

1

20

4120709587

软管F481CACE101005-850

Tube

Y

1

21

4120709263

胶管F481CACF101005-370

Pipe

Y

2

22

4120001168

三通接头EL10LOMDCF

Three-way jiont

Y

2

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4120709264

接头GEO10LM14*1.5OMDCF

Joint

Y

4

24

4120708990

接头GEO10LM18*1.5OMDCF

Joint

Y

4

25

4120704961

直通接头GE08L9/16UNFOMDCF

Fitting, hydraulic ge08l9/16unfomdcf

Y

1

26

4120001391

接头GE08LR3/8EDOMDCF

Jiont

Y

1

27

4120709585

软管F481CACF101005-800

Tube

Y

1

28

4120709599

软管F481CACE101005-1650

Tube

Y

1

29

4120709597

软管F481CACE101005-2300

Tube

Y

2

30

4120709279

接头GE10LR3/8EDOMDCF-H60

Jiont

Y

3

31

4120001224

接头GE12LREDOMDCF

Fitting ge12lredomdcf

Y

2

32

4120000619

三通接头EL12LOMDA3C

Tee fitting el12lomda3c

Y

1

33

4120705925

软管FC402CACF080804-1450

Hose

Y

1

34

4120709606

软管F481CACA121005-1700

Tube

Y

1

35

4120708807

软管F481CACA121005-1650

Hose assembly

Y

1

36

4120001188

接头GE10LREDOMDCF

Fitting ge10lredomdcf

Y

2

37

4120709376

差速制动转向控制阀ST5699-AB0B

Diffrential braking steering control valve

Y

1

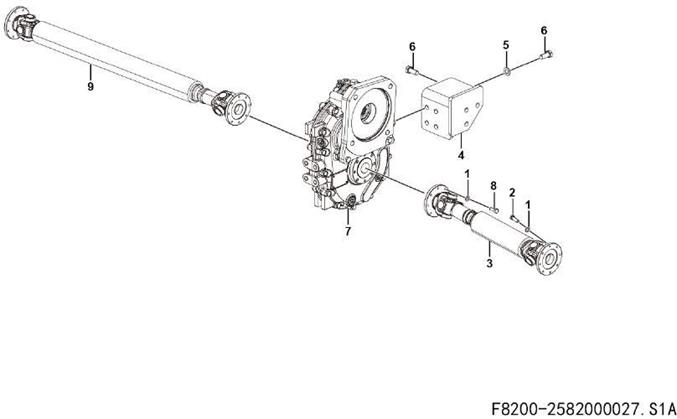

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

32

2

4011010879

螺栓GB5783-M10*30flZnyc-10.9-480

Bolt gb5783-m10*30flznyc-10.9-480

Y

16

3

4110705398

前传动轴LG82-QCDZ-600

Front driving shaft

Y

1

4

25160036032

分动箱焊接安装板

Transfer case welding mounting plate

Y

1

5

4015010287

垫圈GB97.1-16flZnyc-480

Washer gb97.1-16flznyc-480

Y

14

6

4011010864

停用–螺栓GB5783-M16*35flZnyc-10.9-480

Bolt

Y

14

7

4110705298

分动箱CA580281S

Gearbox

Y

1

8

4011010845

螺栓GB5783-M10*25flZnyc-10.9-480

Bolt gb5783-m10*25flznyc-10.9-480

Y

16

9

4110705283

后传动轴LG82-HCDZ-1145

Rear driveshaft

Y

1

10

25820000281

右安装支架焊合

Right mounting bracket welding

Y

1

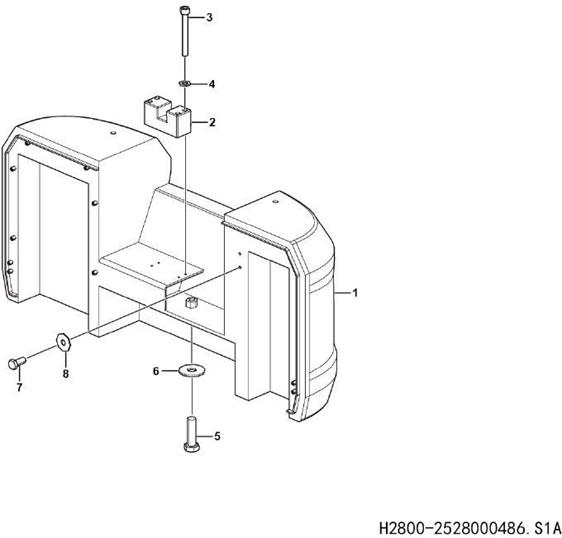

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25280004853

配重

Structural part

Y

1

2

25280004843

尼龙垫块

Nylon cushion block

Y

1

3

4014010426

螺钉GB70.1-M10*80flZnyc-8.8-480

Screwgb70.1-m10*80flznyc-8.8-480

Y

4

4

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

4

5

4011011550

螺栓GB5782-M30*100flZnyc-8.8-480

Bolt gb5782-m30*100flznyc-8.8-480

Y

3

6

4015010372

垫圈GB96.1-30flZnyc-300HV-480

Washer gb96.1-30flznyc-300hv-480

Y

3

7

4011010864

停用–螺栓GB5783-M16*35flZnyc-10.9-480

Bolt

Y

2

8

4015010334

垫圈GB96.1-16flZnyc-300HV-480

Washer gb96.1-16flznyc-300hv-480

Y

2
