序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

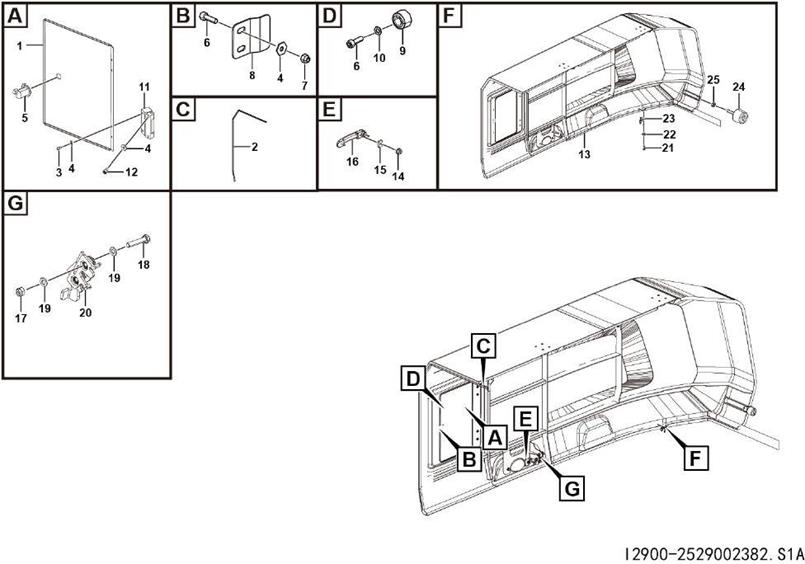

1

25290013282

机罩小门

Door

Y

1

2

25290024581

胶条

Structural part

Y

1

3

4014010490

螺钉GB70.2-M5*10flZnyc-8.8-480

Screw gb70.2-m5*10flznyc-8.8-480

Y

4

4

4015010345

垫圈GB96.1-5flZnyc-480

Washer gb96.1-5flznyc-480

Y

12

5

4190707746

转子锁MS714-3

Rotor lock

Y

1

6

4014010131

螺钉GB70.1-M5*16flZnyc-8.8-480

Screw gb70.1-m5*16flznyc-8.8-480

Y

4

7

4013010305

螺母GB889.1-M5flZnyc-8-480

Nut gb889.1-m5flznyc-8-480

Y

4

8

25290018092

门锁安装板

Door,lock mounting plate

Y

1

9

25290022561

橡胶垫块

Rubber damper

Y

2

10

4015010283

垫圈GB97.1-5flZnyc-480

Washer gb97.1-5flznyc-480

Y

2

11

4190706171

铰链CL219-4R-2

Hinge

Y

2

12

4014010593

螺钉GB70.1-M5*8flZnyc-8.8-480

Screw gb70.1-m5*8flznyc-8.8-480

Y

4

13

25290023812

右机罩焊接总成

Weldment engine hood rh

Y

1

14

4013010386

螺母GB6177.1-M8flZnyc-8-480

Nut gb6177.1-m8flznyc-8-480

Y

2

15

25290017621

手柄加强板垫块

Handle stiffening plate block

N

1

16

4190003479

外手柄组件NBS714-26605010

Outer handle assembly nbs714-26605010

N

1

17

4013010297

螺母GB889.1-M8flZnyc-8-480

Nut gb889.1-m8flznyc-8-480

Y

2

18

4011010726

螺栓GB5783-M8*40flZnyc-8.8-480

Bolt gb5783-m8*40flznyc-8.8-480

Y

2

19

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

20

4190705114

特力马克锁单转子锁52334-01

Trimark single-rotor lock 52334-01

Y

1

21

4014010125

螺钉GB818-M4*10flZnyc-4.8-480

Screw gb818-m4*10flznyc-4.8-480

Y

2

22

4015010365

垫圈GB96.1-4flZnyc-300HV-480

Washer gb96.1-4flznyc-300hv-480

Y

2

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

25290019901

球形扣

Ball buckle

Y

1

24

25290005903

减震垫

Forming (stamping, etc.), damping pad

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

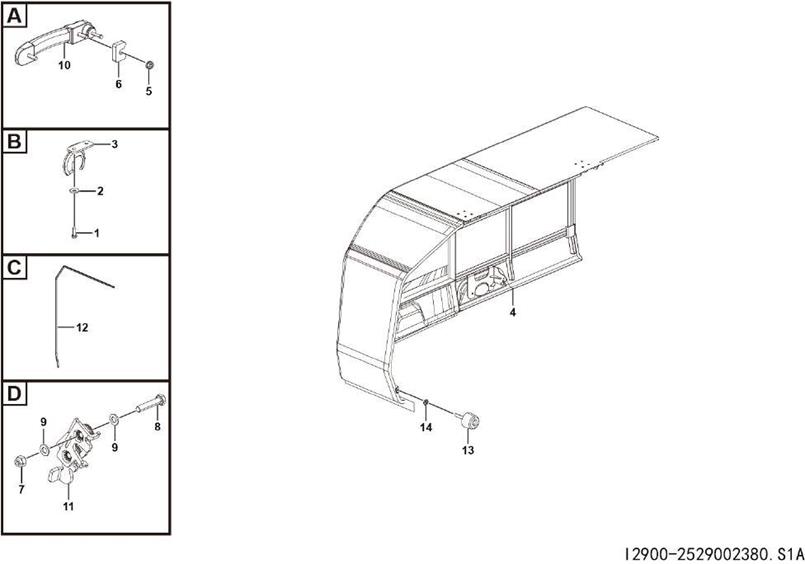

1

4014010125

螺钉GB818-M4*10flZnyc-4.8-480

Screw gb818-m4*10flznyc-4.8-480

Y

2

2

4015010365

垫圈GB96.1-4flZnyc-300HV-480

Washer gb96.1-4flznyc-300hv-480

Y

2

3

25290019901

球形扣

Ball buckle

Y

1

4

25290023792

左机罩焊接总成

Left engine hood weldment assy

Y

1

5

4013010386

螺母GB6177.1-M8flZnyc-8-480

Nut gb6177.1-m8flznyc-8-480

Y

2

6

25290017621

手柄加强板垫块

Handle stiffening plate block

N

1

7

4013010297

螺母GB889.1-M8flZnyc-8-480

Nut gb889.1-m8flznyc-8-480

Y

2

8

4011010726

螺栓GB5783-M8*40flZnyc-8.8-480

Bolt gb5783-m8*40flznyc-8.8-480

Y

2

9

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

10

4190003479

外手柄组件NBS714-26605010

Outer handle assembly nbs714-26605010

N

1

11

4190705114

特力马克锁单转子锁52334-01

Trimark single-rotor lock 52334-01

Y

1

12

25290019882

前机罩胶条

Front hood rubber strip

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4014010121

螺钉GB818-M4*20flZnyc-4.8-480

Screw gb818-m4*20flznyc-4.8-480

Y

3

2

4015010365

垫圈GB96.1-4flZnyc-300HV-480

Washer gb96.1-4flznyc-300hv-480

Y

3

3

4110000028

橡胶拉钩

Rubber drag hook

Y

1

4

4016010175

销轴GB882-B5*40flZnyc-35-480

Pin gb882-b5*40flznyc-35-480

Y

1

5

25290002731

安装板

Mounting plate, rubber handle mounting plate

Y

1

6

4013010360

螺母GB889.1-M4flZnyc-8-480

Nut gb889.1-m4flznyc-8-480

Y

3

7

4016010174

开口销GB91-1.6*16flZnyc-Q235A-480

Pin gb91-1.6*16flznyc-q235a-480

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

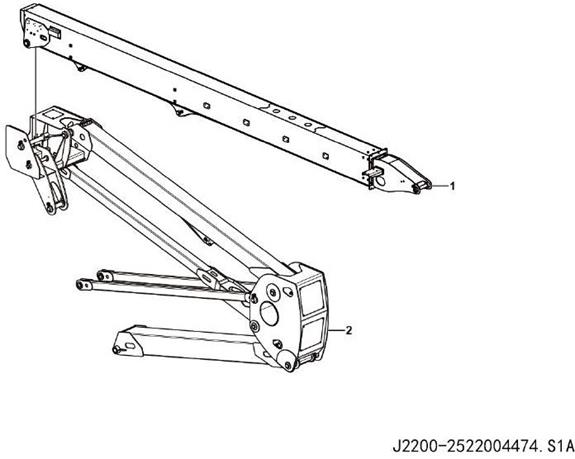

1

25220044231

伸缩臂总成

Telescopic boom assembly

N

1

2

25220042951

折臂总成

Assembly

N

1
