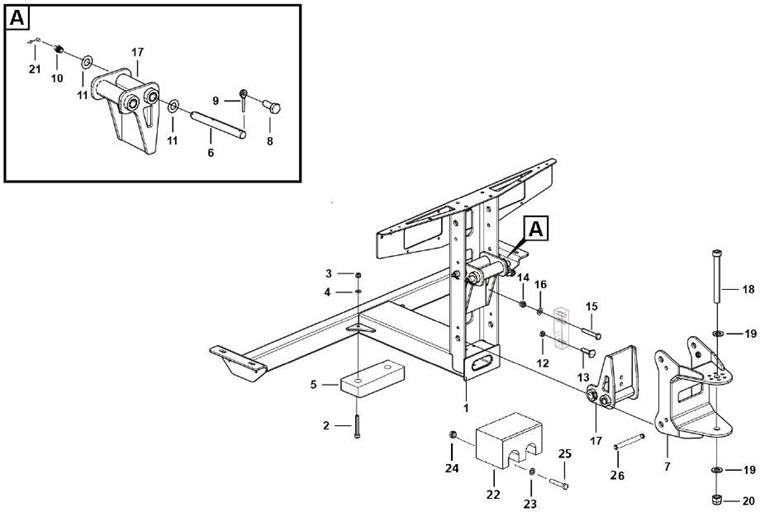

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25210051521

平台支撑

Support assembly

N

1

2

4014010455

螺钉GB70.1-M10*40flZnyc-8.8

Gb70.1-m10*40flznyc-8.8

Y

2

3

4013010296

螺母GB889.1-M10flZnyc-8

Nut gb889.1-m10flznyc-8

Y

2

4

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

2

5    25210030831    防撞橡胶座    Anti-collision rubber seat, platform bottom anti-collision    Y    1

block

6

25210055761

过渡支架长销轴

Transition bracket long pin, φ7*319*10

Y

2

7

25210028164

摆动马达安装支架

Welding, swing motor mounting bracket

Y

1

8

4011010748

螺栓GB5783-M10*20flZnyc-8.8-480

Bolt gb5783-m10*20flznyc-8.8-480

Y

4

9

25200008311

插销

Pin，6.5*46

Y

4

10

4030000535

油杯JB7940.1-M6

Grease fitting jb7940.1-m6

Y

4

11

25210028481

调整垫片

Adjusting shim, for fixing triangle bracket assembly, φ55*1

Y

8

12

4013010315

螺母GB6172.1-M12flZnyc-8-480

Nut gb6172.1-m12flznyc-8-480

Y

1

13

25210036551

调节螺栓M12*45

Adjusting bolt m12*45

Y

1

14

4013010301

螺母GB889.1-M12flZnyc-8-480

Nut gb889.1-m12flznyc-8-480

Y

2

15

4011010956

螺栓GB5782-M12×70flZnyc-8.8-480

Bolt gb5782-m12×70flznyc-8.8-480

Y

2

16

4015010340

垫圈GB97.1-12flZnyc-300HV-480

Washer gb97.1-12flznyc-300hv-480

Y

2

17

25210040401

三角支架装配

Welding, triangle bracket assembly

Y

2

18

4014010444

螺钉GB70.1-M24*280flZnyc-10.9-480

Bolt gb70.1-m24*280flznyc-10.9-480

N

1

19

4015010364

垫圈GB97.1-24flZnyc-300HV-480

Washer gb97.1-24flznyc-300hv-480

Y

2

20

4013010417

螺母GB889.1-M24flZnyc-10-480

Nut gb889.1-m24flznyc-10-480

Y

1

21

4030100411

油杯防护帽-M6

Grease fitting protective cap-m6

Y

4

22

25210049971

限位板

Limit plate, weighing mechanism limit block

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

24

4013010297

螺母GB889.1-M8flZnyc-8-480

Nut gb889.1-m8flznyc-8-480

Y

2

25

4014010420

螺钉GB70.1-M8*40flZnyc-8.8-480

Screw gb70.1-m8*40flznyc-8.8-480

Y

2

26

25210041111

过渡支架销轴

Transition bracket mounting pin, φ7*195*10

Y

4

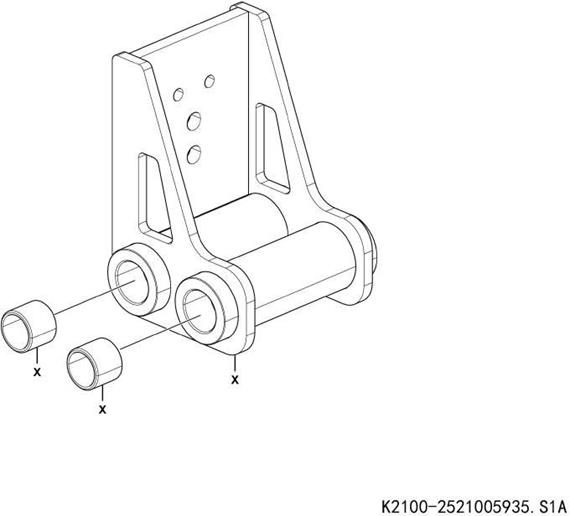

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25210059342

三角支架焊接

Support welding

N

1

2

25210028201

轴套30*25

Bushing

Y

4

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4013010300

螺母GB889.1-M6flZnyc-8-480

Nut gb889.1-m6flznyc-8-480

Y

8

2

4015010296

垫圈GB96.1-6flZnyc-480

Washer gb96.1-6flznyc-480

Y

8

3

4190001525

弹簧铰链X022

Spring hinge x022

Y

2

4

4015010284

垫圈GB97.1-6flZnyc-480

Washer gb97.1-6flznyc-480

Y

8

5

4011010744

螺栓GB5783-M6*20flZnyc-8.8-480

Bolt gb5783-m6*20flznyc-8.8-480

Y

8

6

25210058361

门框焊接

Door welding

N

1

7

25210057032

平台框架

Platform welding

N

1

8

25210058331

U型抬杆

U type welding

N

1

9

25210039571

U型抬杆

U-shaped lifting cross bar

Y

1

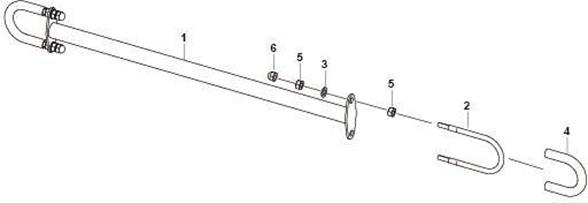

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25210058321

抬杆焊合

Support welding

N

1

2

25210039542

U型螺栓

U-bolt, 52

N

2

3

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

4

25210007181

胶管

Hose, for protecting lifting cross bar

Y

2

5

4013010291

螺母GB6170-M8flZnyc-8-480

Nut gb6170-m8flznyc-8-480

Y

8

6

4013010381

盖型螺母GB923－M8flZnyc-8-480

Gb923－m8flznyc-8

Y

4

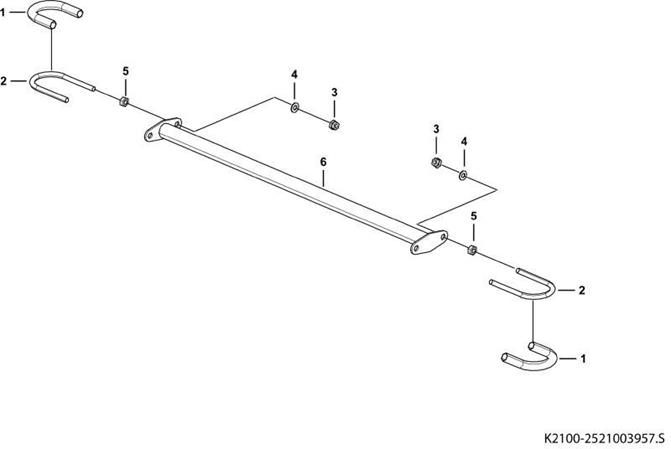

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25210007181

胶管

Hose, for protecting lifting cross bar

Y

2

2

25210039542

U型螺栓

U-bolt, 52

N

2

3

4013000210

螺母GB889.1-M8EpZn-8

Nut gb889.1-m8epzn-8

Y

4

4

4015000072

垫圈GB97.1-8EpZn-300HV

Washer gb97.1-8epzn-300hv

Y

4

5

4013000033

螺母GB6170-M8EpZn-8

Nut gb6170-m8epzn-8

Y

4

6

25210039561

抬杆

Welding, lifting cross bar, platform

Y

1
