序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

4120704908

直接头GE28LREDOMDCF

Straight fitting ge28lredomdcf

Y

1

2

4120703954

球阀3PC-Q11F-16P-1

Ball valve 3pc-q11f-16p-1

Y

1

3

4120709286

直接头EGE35LR1ED

Joint ege35lr1ed

Y

1

4

25100006851

液压油箱配送总成

Hydraulic oil tank distribution assembly

Y

1

5

4011010979

螺栓GB5783-M12*40flZnyc-8.8-480

Bolt gb5783-m12*40flznyc-8.8-480

Y

2

6

4015010286

垫圈GB96.1-12flZnyc-480

Washer gb96.1-12flznyc-480

Y

4

7

4013010301

螺母GB889.1-M12flZnyc-8-480

Nut gb889.1-m12flznyc-8-480

Y

2

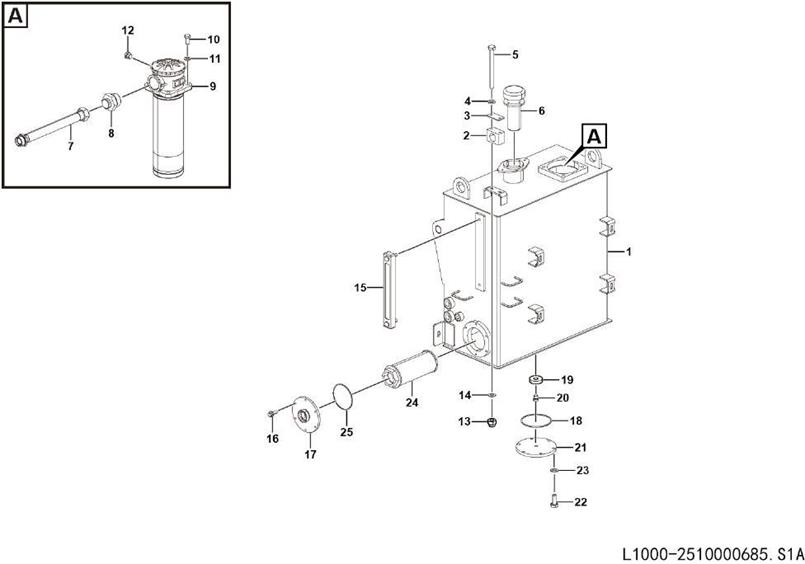

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1

25100006861

液压油箱焊合

Hydraulic oil tank weldment

Y

1

2

4120704063

管夹TLPG-430

Clamp

Y

1

3

4120704109

盖板TL-G4

Cover plate

Y

1

4

4015010284

垫圈GB97.1-6flZnyc-480

Washer gb97.1-6flznyc-480

Y

2

5

4011011079

螺栓GB5782-M6*65flZnyc-8.8

Bolt gb5782-m6*65flznyc-8.8

Y

2

6

4120001427

空气滤清器EF2-32

Air cleaner ef2-32

Y

1

7

25100006921

钢管总成

Pipe assembly

Y

1

8

4120703560

接头1CM-36-48WD

Joint

Y

1

9

4120001419

回油过滤器

Renturn filter

Y

1

10

4011011038

螺栓GB5783-M12*25flZnyc-8.8-480

Bolt gb5783-m12*25flznyc-8.8-480

Y

4

11

4015010340

垫圈GB97.1-12flZnyc-300HV-480

Washer gb97.1-12flznyc-300hv-480

Y

4

12

4120707032

堵头VSTI18*1.5OR

Plug

Y

2

13

4013010300

螺母GB889.1-M6flZnyc-8-480

Nut gb889.1-m6flznyc-8-480

Y

2

14

4015010296

垫圈GB96.1-6flZnyc-480

Washer gb96.1-6flznyc-480

Y

2

15

4120703948

液位计YWZ-250T

Level gauge ywz-250t

Y

1

16

4011010735

螺栓GB16674-M6*16flZnyc-8.8-480

Bolt gb16674-m6*16flznyc-8.8-480

Y

6

17

25100006101

吸油法兰

Oil-absorbing flange

Y

1

18

4030000134

O形圈GB3452.1-100*3.55G

O-ring gb3452.1-100*3.55g

Y

1

19

4120000669

环形磁铁LG03-CT58*20*13

Ring magnet lg03-ct58*20*13

Y

1

20

4120002398

堵头4MN-14WD

Plug 4mn-14wd

Y

1

21

25100005731

放油孔盖

Oil inlet hole cover

N

1

22

4011010711

螺栓GB5783-M8*20flZnyc-8.8-480

Bolt gb5783-m8*20flznyc-8.8-480

Y

6

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

6

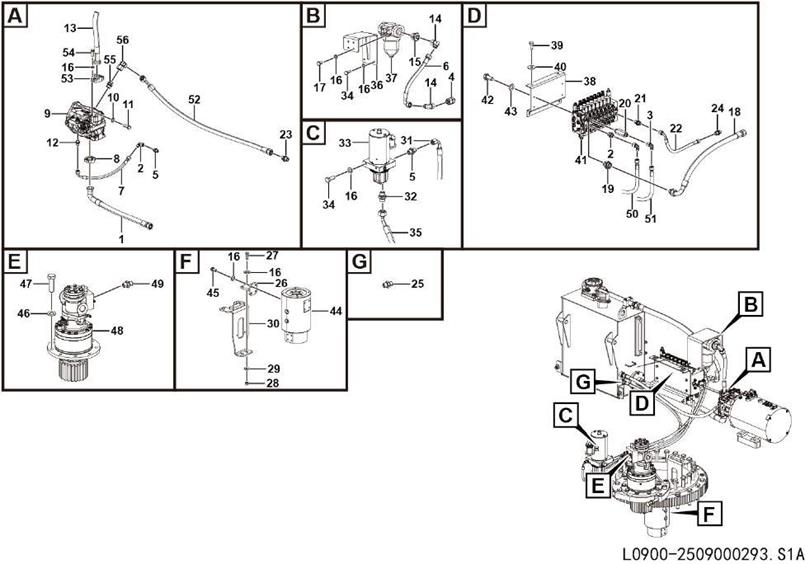

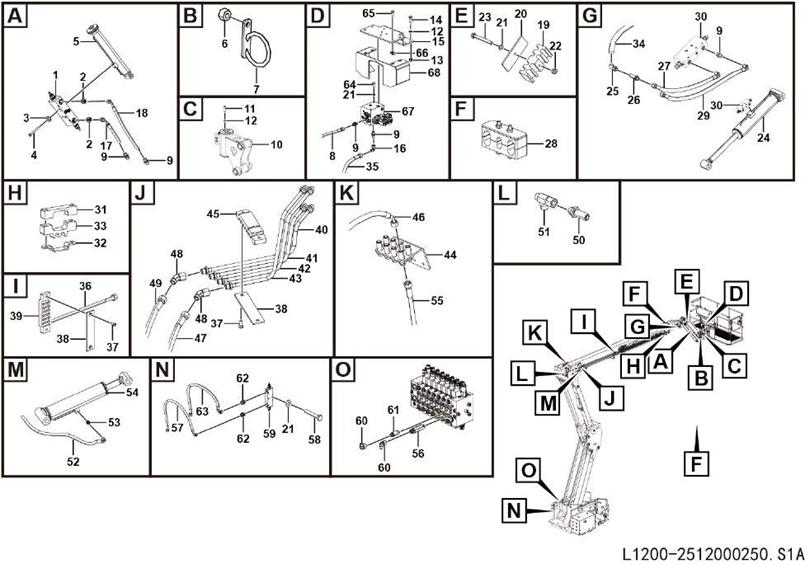

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

1    4120710073    软管20411-36-16*87391-20-16*OSD150-0100*735 Hose 20411-36-16*87391-20-16*osd150-0100*735（contains    Y    1

（带O型圈）

o-rings）

2

4190000698

接头EW08LOMDA3C

Fitting ew08lomda3c

Y

3

3

4120001391

接头GE08LR3/8EDOMDCF

Jiont

Y

1

4

4120708355

单向阀SY-RZ-L22-G3/4-0.5

Valve

Y

1

5

4120001170

接头GE08LREDOMDCF

Fitting ge08lredomdcf

Y

3

6

4120709594

软管F471TCCACF222210-425

Hose assembly

Y

1

7

4120708619

软管F481CACF080804-350

Hose f481cacf080804-350

Y

1

8

4120005128

法兰总成FL-20

Flange half

Y

1

9

4120709541

开式变量泵HP5V28/AV10RB2S1MA-L1-LG02

Piston pump

Y

1

10

4015010340

垫圈GB97.1-12flZnyc-300HV-480

Washer gb97.1-12flznyc-300hv-480

Y

2

11

4011010490

螺栓GB5783-M12*35flZnyc-10.9-480

Bolt gb5783-m12*35flznyc-10.9-480

Y

2

12

4120001177

接头GE08L7/16UNFOMDCF

Fitting ge08l7/16unfomdcf

Y

1

13

4120709593

软管F471TCCA15221210-375（带O型圈）

Hose assembly

Y

1

14

4120705621

组合接头EW22LOMDCF

Joint ew22lomdcf

Y

3

15

25090002081

变径接头M48-M30

Reducer union

Y

2

16

4015010339

垫圈GB97.1-10flZnyc-300HV-480

Washer gb97.1-10flznyc-300hv-480

Y

28

17

4011010963

螺栓GB5783-M10*16flZnyc-8.8-480

Bolt gb5783-m10*16flznyc-8.8-480

Y

4

18

4120709596

软管20411-36-16*20491-36-16*OSD150-0100*800

Hose assembly

Y

1

19

4120704907

接头GE28LR3/4EDOMDCF

Fitting ge28lr3/4edomdcf

Y

1

20

4120708330

接头GE08LR3/8EDOMDCF-H80

Nipple

Y

1

21

4120001188

接头GE10LREDOMDCF

Fitting ge10lredomdcf

Y

1

22

4120710072

软管F481CACF101005-550

Hose f481cacf101005-550

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

23

4120704962

直通接头GE15LM22×1.5EDOMDCF

Fitting, hydraulic ge15lm22×1.5edomdcf

Y

1

24

4190705183

接头GE10LMEDOMDA3C

Joint

Y

1

25

4120706930

直接头GE12LM22*1.5EDOMDCF

Joint

Y

1

26

25090002451

中回支撑总成

Bracket anchor hydraulic rotary coupler

Y

2

27

4011010727

螺栓GB5783-M10*35flZnyc-8.8-480

Bolt gb5783-m10*35flznyc-8.8-480

Y

4

28

4013010296

螺母GB889.1-M10flZnyc-8

Nut gb889.1-m10flznyc-8

Y

4

29

4015010278

垫圈GB96.1-10flZnyc-480

Washer gb96.1-10flznyc-480

Y

4

30

25090002781

回转安装板焊合

Plate welding assemble

Y

2

31

4120705067

软管总成F481CACF080804-1800

Hose

Y

1

32

4120706440

过滤接头1CB-18-06-40目

Filter fitting 1cb-18-06-40 meshes

N

1

33

4120709047

应急动力单元MD12200-01

Auxiliary hydraulic power

Y

1

34

4011010722

螺栓GB5783-M10*25flZnyc-8.8-480

Bolt gb5783-m10*25flznyc-8.8-480

Y

4

35

4120710071

软管FC402CACE121206-2150

Hose fc402cace121206-2150

Y

1

36

25230020521

过滤器支架焊合

Welding assembly

Y

1

37

4120703941

过滤器PLFA-H160*5

Filter plfa-h160*5

Y

1

38

25090002943

多路阀安装板

Multi-way valve mount plate

Y

1

39

4011011038

螺栓GB5783-M12*25flZnyc-8.8-480

Bolt gb5783-m12*25flznyc-8.8-480

Y

4

40

4015010286

垫圈GB96.1-12flZnyc-480

Washer gb96.1-12flznyc-480

Y

4

41

4120709546

负载敏感阀MX10-G1

Valve

Y

1

42

4011010970

螺栓GB5783-M8*16flZnyc-8.8-480

Bolt gb5783-m8*16flznyc-8.8-480

Y

4

43

4015010280

垫圈GB97.1-8flZnyc-480

Washer gb97.1-8flznyc-480

Y

4

44

4120708407

中心回转接头ZH0511A000-0000

Hydraulic rotary coupler

Y

1

序号

零件代号

名称

是否配件

数量

备注

Key

Part No.

Description

Spare parts Y/N

Qty

Remarks

45

4011010748

螺栓GB5783-M10*20flZnyc-8.8-480

Bolt gb5783-m10*20flznyc-8.8-480

Y

8

46

4015010341

垫圈GB97.1-14flZnyc-300HV-480

Washer gb97.1-14flznyc-300hv-480

Y

9

47

4011010962

螺栓GB5783-M14*45flZnyc-10.9-480

Bolt gb5783-m14*45flznyc-10.9-480

Y

9

48

4120702844

回转减速机总成

Slewing reducer assembly

Y

1

49

4120704961

直通接头GE08L9/16UNFOMDCF

Fitting, hydraulic ge08l9/16unfomdcf

Y

2

50

4120706351

软管FC402CACF080804-1850

Hose fc402cacf080804-1850

Y

1

51

4120709613

软管FC402CACF080804-1900

Hose assembly

Y

1

52

4120710070

软管F481CACE151508-1050

Hose f481cace151508-1050

Y

1

53

4120000865

SAE对开法兰FL-12Z

Flange

Y

1

54

4011010707

螺栓GB5783-M10*30flZnyc-8.8-480

Bolt gb5783-m10*30flznyc-8.8-480

Y

8
