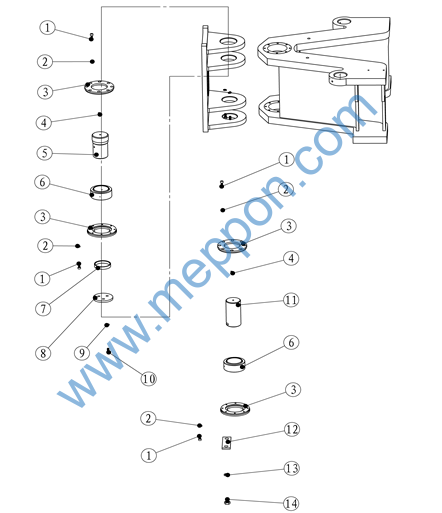

前机身装配（二）Front Frame Assembly (Ⅱ) (CDM1165, CDM1185, CDM1220)

Figure 03 Front Frame Assembly (Ⅱ) (CDM1165, CDM1185, CDM1220)

Fig.03		前机身装配（二）Front Frame Assembly(Ⅱ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	GB/T70-85	螺钉	Screw	M10X30	32
2	GB/T93-87	垫圈	Washer	10	32
3	LG1185.05-017	压盘	Press plate		4	90050017
4	GB/T1153-89	油杯	Oil cup	M10x1-60	2
5	LG1185.05-016	轴	Shaft		1	90050016
6	GB304.5-81	关节轴承	Joint bearing	GE90ES	2
7	LG1185.05-018	隔套	Separating sleeve		1	90050018
8	LG1185.05-019	板	Plate		1	90050019
9	GB/T93-87	垫圈	Washer	12	3
10	GB/T5783-86	螺栓	Bolt	M12X25	3
11	LG1185.05-020	轴	Shaft		1	90050020
12	LG1185.05-021	挡板	Block Plate		1	90050021
13	GB/T93-87	垫圈	Washer	20	2
14	GB/T5783-86	螺栓	Bolt	M20X25	2

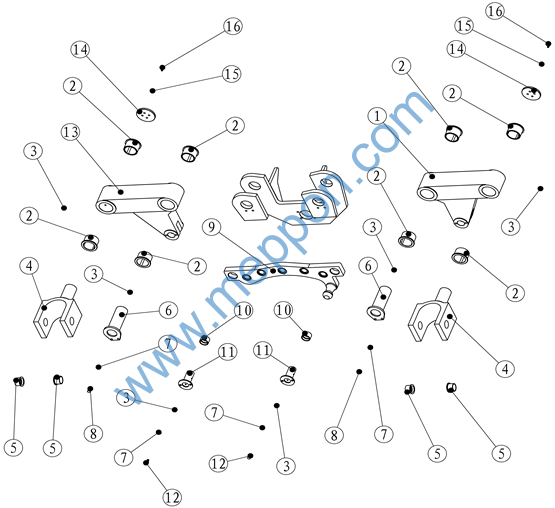

4. 前机身装配（三）Front Frame Assembly (Ⅲ) (CDM1165, CDM1185, CDM1220)

Figure 04 Front Frame Assembly (Ⅲ) (CDM1165, CDM1185, CDM1220)

Fig.04		前机身装配（三）Front Frame Assembly (Ⅲ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1185.05-025	摆臂	Rocker Arm		1	90050025
2	LG1185.05-023	套	Sleeve		8	90050023
3	GB/T1152-89	油杯	Oil cup	M10X1	6
4	LG1185.05.03	叉子总成	Fork assembly	P1.25.2	2
5	LG1185.05-022	套	Sleeve		4	90050022
6	LG1185.05.04	轴	Shaft		2	90054000
7	GB/T93-87	垫圈	Washer	12	8
8	GB/T5783-86	螺栓	Bolt	M12X25	4
9	LG1185.05.02	挂板	Hang Plate		1	90052000
10	LG1185.05-026	套	Sleeve		2	90050026
11	LG1185.05.05	销轴	Pin Shaft		2	90055000
12	GB/T5783-86	螺栓	Bolt	M12X20	4
13	LG1185.05-012	摆臂	Rocker Arm		1	90050012
14	LG1185.05-024	板	Plate		2	90050024
15	GB/T93-87	垫圈	Washer	10	8
16	GB/T5783-86	螺栓	Bolt	M10X25	8

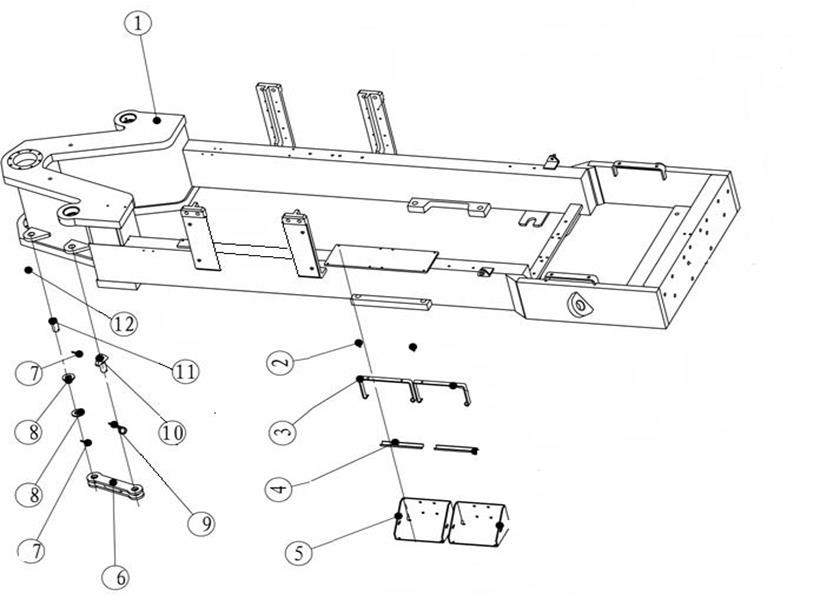

Figure 05 Rear Frame Assemblies (CDM1165, CDM1185, CDM1220)

Fig.05		后机身装配Rear Frame Assembly (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1185.06.01	后机身焊接	Rear frame welding		1	90061000
2	GB/T5783-86	螺栓	Bolt	M8X30	4
3	LG1185.06-005	压板	Plate		2	90060016
4	LG1185.06-006	垫板	Plate		2	90060017
5	LG1185.06-004	电瓶箱	Battery Box		2	90060015
6	LG1185.06-001	板	Plate		1	90062011
7	GB/T91-86	开口销	Cotter pin	6.3×50	2
8	GB/T97.1-85	垫圈	Washer	30	2
9	LG1185.06-012	弹簧销	Spring Pin		1	90060012
10	LG1185.06.03	销轴	Pin Shaft		1	90063000
11	GB/T882	销轴	Pin Shaft	M30X65	1
12	GB/T1152-89	油杯	Oil cup	M10X1	2

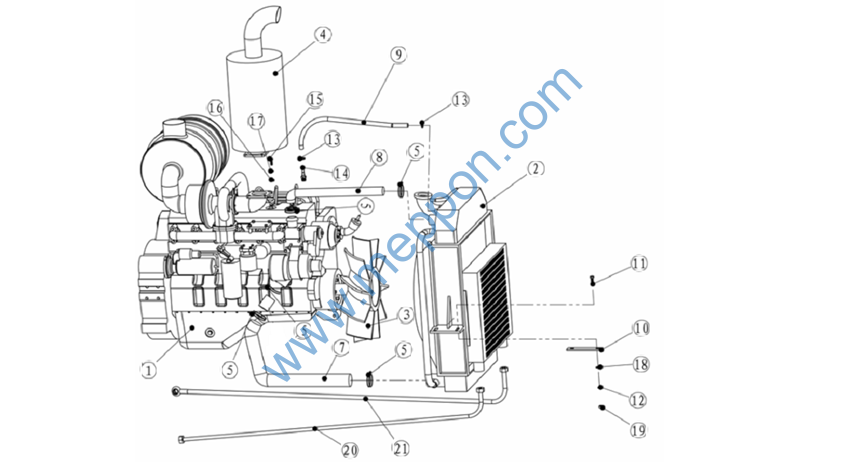

Figure 06 Engine Mountings (Ⅰ) (CDM1165)

Fig.06		柴油机联结（一）Engine Mountings(Ⅰ)(CDM1165)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1165.07.05	柴油发动机	Diesel engine	6BTA5.9-C170	1
2	LG1165.07.02	散热器	Radiator		1
3	LG1165.07.10	风扇φ660	Fan		1	雪龙F660-86-103-10C
4	LG1165.07.01	消声器	Muffler		1
5	LG1185.07.07	卡箍	Hoop	φ51-φ76	5	43828D
7	LG1165.07-017	水管	Water pipe		1
8	LG1165.07-015	出水胶管	Water outlet pipe		1
9	LG1185.07-012	通气管	Vent pipe		1	90070012
10	LG1185.07-015	橡胶垫	Rubber pad		2	90070015
11	GB/T5783-86	螺栓	Bolt	M12x30	4
12	GB/T93-87	垫圈	Washer	12	4
13	NO.O0(16-27)	喉箍	Hoop	φ16-27	2
14	LG1185.07-020	接头	connector		1
15	GB/T5783-86	螺栓	Bolt	M10x30	4
16	GB/T6170-86	螺母	Nut	M10	4
17	GB/T93-87	垫圈	Washer	10	4
18	GB/T97.1-85	垫圈	Washer	12	4
19	GB/T6170-86	螺母	Nut	M12	4
20	25-210G11-2050	胶管	Hose		1
21	25-210G1Q1-2250	胶管	Hose		1

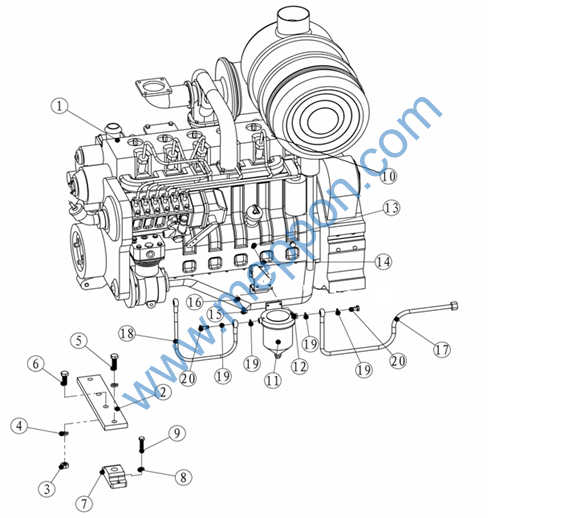

Figure 07 Engine Mountings (Ⅱ) (CDM1165)

Fig.07		柴油机联结（二）Engine Mountings(Ⅱ)(CDM1165)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1165.07.05	柴油发动机	Diesel engine	6BTA5.9-C170	1
2	LG1165.07-016	联接板	Connecting plate		1	90070018
3	GB/T6170-86	螺母	Nut	M16	2
4	GB/T93-87	垫圈	Washer	16	4
5	GB/T5783-86	螺栓	Bolt	M16x55	2
6	GB/T5783-86	螺栓	Bolt	M16x45	2
7	LG1185.06.05	减震器	Shock absorber	EA120	2
8	GB/T93-87	垫圈	Washer	12	4
9	GB/T5783-86	螺栓	Bolt	M12x40	4
10	LG1185.07-020	水管接头	Water pipe connector		1
11	LG1185.07.10	燃油沉淀器	Fuel precipitator	DX150.	1
12	GB/T5783-86	螺栓	Bolt	M8x25	2
13	GB/T6170-86	螺母	Nut	M8	2
14	GB/T93-87	垫圈	Washer	8	2
15	GB/T5783-86	螺栓	Bolt	M10x20	2
16	GB/T93-87	垫圈	Washer	10	2
17	K8- Q1Q1-600	软管总成	Hose assembly		1
18	K8-Q1Q1-850	软管总成	Hose assembly		1
19	JB982-77	组合垫圈	Combined washer	12	4
20	DX150-1	空心螺栓	Bolt		2

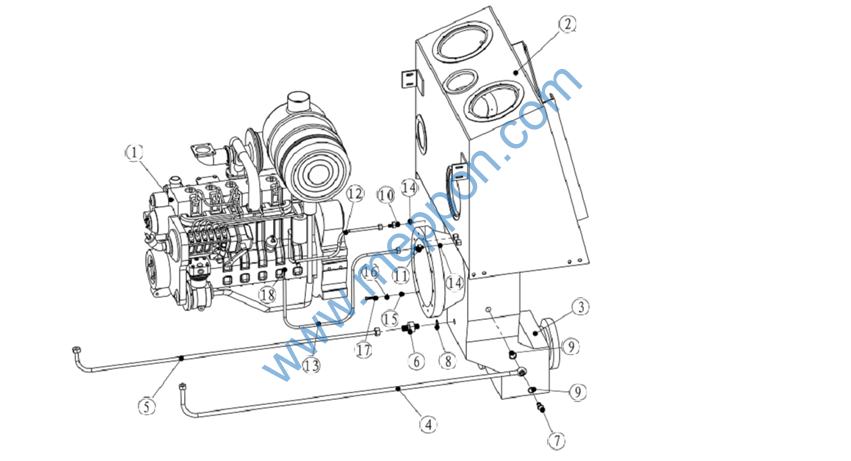

Figure 08 Engine Mountings (Ⅲ)(CDM1165)
