LONKING CDM1165 CDM1185 CDM1220 MOTOR GRADER PARTS CATALOG 04
|
Fig.14 |
柴油机联结（三）Engine Mountings(Ⅲ)(CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1220.07.02 |
柴油发动机 |
Diesel engine |
6CT8.3-C215 |
1 |
|
|
2 |
LG1185.13 |
油箱焊接 |
Oil tank welding |
1 |
90140000 |
|
|
3 |
LG1185.04.12 |
动力换档变速箱 |
Transmission |
6WG180 |
1 |
|
|
4 |
25-210G1Q1-2250 |
胶管 |
Hose |
1 |
||
|
5 |
25-210G11-2050. |
胶管 |
Hose |
1 |
||
|
6 |
JB/T999—77 |
空心螺栓 |
Bolt |
2 |
||
|
7 |
LG1185.04-009 |
空心螺栓 |
Bolt |
1 |
90040009 |
|
|
8 |
JB982-77 |
组合垫圈 |
Combined washer |
36 |
1 |
|
|
9 |
JB982-77 |
组合垫圈 |
Combined washer |
30 |
2 |
|
|
10 |
GB3733.2-83 |
直接头 |
Straight connector |
1 |
||
|
11 |
L1CM-16-14 WD |
直接头 |
Straight connector |
1 |
||
|
12 |
K8-Q1Q1-600 |
软管总成 |
Hose assembly |
1 |
||
|
13 |
K8-Q1Q1-850 |
软管总成 |
Hose assembly |
1 |
||
|
14 |
JB982-77 |
组合垫圈 |
Combined washer |
14 |
2 |
|
|
15 |
GB97.1-85 |
垫圈 |
Washer |
12 |
12 |
|
|
16 |
GB93-87 |
垫圈 |
Washer |
12 |
12 |
|
|
17 |
GB5783-86 |
螺栓 |
Bolt |
M12x60 |
12 |
|
|
18 |
NO.00（10-18） |
喉箍 |
Hoop |
φ10-18 |
1 |
|
15. 前桥联接 Front Axle Mountings (CDM1165, CDM1185, CDM1220)

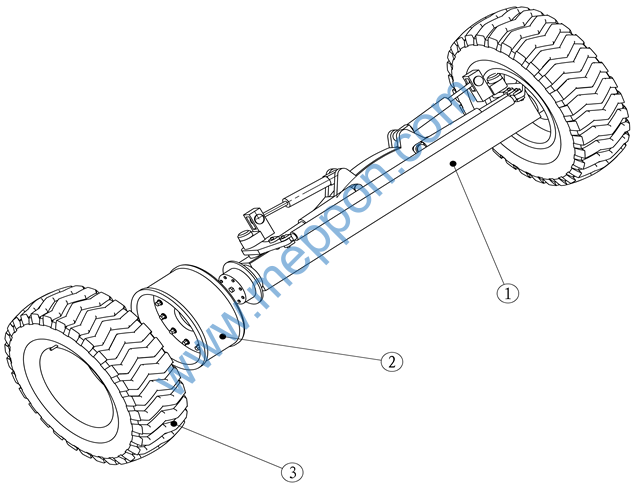

Figure 15 Front Axle Mountings (CDM1165, CDM1185, CDM1220)
|
Fig.15 |
前桥联接 Front Axle Mountings(CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.02.01 |
前桥 |
Front Axle |
1 |
380100000 |
|
|
2 |
LG1185.03.08 |
轮辋 |
Rim |
2 |
90038000 |
|
|
3 |
LG1185.03.07 |
轮胎 |
Tire |
17.5-25PR12G-3 |
2 |
|
16. 后桥联接(一) Rear Axle Mountings (Ⅰ) (CDM1165, CDM1185, CDM1220)
Figure 16 Rear Axle Mountings (Ⅰ)（CDM1165, CDM1185, CDM220)
|
Fig.16 |
后桥联接(一)Ⅰ Rear Axle Mountings (Ⅰ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
GB/T5785-86 |
螺栓 |
Bolt |
M24X1.5X220 |
8 |
10.9级 |
|
2 |
01-3920-00-00 |
后桥支承装置 |
Rear axle supporting device |
2 |
||
|
3 |
GB/T97.2-85 |
垫圈 |
Washer |
24 |
300HV |
|
|
4 |
GB/T1337-88 |
螺母 |
Nut |
M24X1.5 |
8 |
|
|
5 |
01-3910-00-00 |
主传动装置 |
Final drive device |
1 |
||
17. 后桥联接(二) Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185, CDM1220)

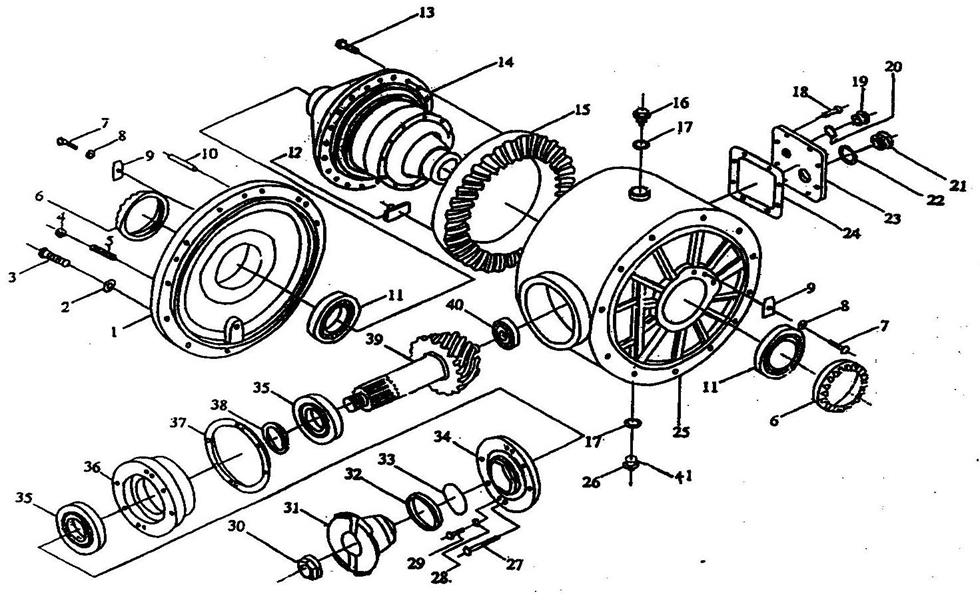

Figure 17 Rear Axle Mountings (Ⅱ)（CDM1165, CDM1185, CDM220)
|
Fig.17 |
后桥联接(二) Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
01－3910－07－00 |
箱盖 |
Transmission cover |
1 |
||
|
2 |
JC10317-91 |
垫圈 |
Washer |
VS12-A3C |
3 |
|
|
3 |
GB70-85 |
螺钉 |
Screw |
M12X30-Q-8.8 |
3 |
|
|
4 |
GB6172-86 |
螺母 |
Nut |
M20-04 |
1 |
|
|
5 |
GB79-85 |
螺钉 |
Screw |
M20X80-22H |
1 |
|
|
6 |
01-3910-10-00 |
带槽螺母 |
Nut |
2 |
||
|
7 |
GB5783-86 |
螺栓 |
Bolt |
M6X10-8.8 |
2 |
|
|
8 |
JC10317-91 |
垫圈 |
Washer |
VS6-A3C |
2 |
|
|
9 |
01-3910-11-00 |
锁板 |
Lock plate |
2 |
||
|
10 |
GB879-86 |
销 |
Pin |
16X40 |
1 |
|
|
11 |
GB297-84 |
轴承 |
Bearing |
2007116E |
2 |
80X125X29 |
|
12 |
01-3910-09-00 |
滑块 |
Slide block |
1 |
||
|
13 |
GB5782-86 |
螺栓 |
Bolt |
M16X35-10.9 |
20 |
|
|
14 |
01-3915-00 |
差速器总成 |
Differential assembly |
67034 |
1 |
|
|
15 |
01-3913-01-00 |
盘形齿轮 |
Disc gear |
1 |
||
|
16 |
01-3910-14-00 |
螺塞 |
Plug screw |
1 |
||
|
17 |
JB1002-77 |
垫圈 |
Washer |
30 |
2 |
|
|
18 |
GB5782-86 |
螺栓 |
Bolt |
M8X20-8.8 |
8 |
|
|
19 |
JB1000-77 |
螺塞 |
Plug screw |
M27X2 |
1 |
|
|
20 |
JB1002-77 |
垫圈 |
Washer |
27 |
1 |
|
|
21 |
01-3912-00-00 |
油位指示器 |
Oil level indicator |
1 |
||
|
22 |
JB982-77 |
垫圈 |
Washer |
42 |
1 |
|
|
23 |
01-3910-12-00 |
盖 |
Cover |
1 |
||
|
24 |
01-3910-13-00 |
密封垫 |
Seal gasket |
1 |
||
|
25 |
01-3910-08-00 |
主传动壳体 |
Final drive body |
1 |
||
|
26 |
01-3911-00-00 |
螺塞 |
Plug screw |
|||
|
Fig.17 |
后桥联接(二)Ⅰ Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
27 |
GB5782-86 |
螺栓 |
Bolt |
M12X50-10.9 |
8 |
|
|
28 |
GB859-87 |
垫圈 |
Washer |
2 |
||
|
29 |
GB5782-86 |
螺栓 |
Bolt |
M8X25-8.8 |
2 |
|
|
30 |
01-3910-02-00 |
带肩螺母 |
Nut |
1 |
||
|
31 |
01-3910-01-00 |
万向接叉 |
Universal connecting fork |
1 |
||
|
32 |
01-3910-16-00 |
密封圈 |
Seal gasket |
1 |
||
|
33 |
油封 |
Oil seal |
SG75X95X12 |
1 |
||
|
34 |
01-3910-03-00 |
盖 |
Cover |
1 |
||
|
35 |
GB297-84 |
轴承 |
Bearing |
55X120X29X31.5 |
2 |
7311E |
|
36 |
01-3910-04-00 |
轴承套 |
Bearing sleeve |
1 |
||
|
37 |
01-3910-05-00 |
调整垫 |
Adjusting gasket |
1组 |
||
|
38 |
01-3910-06-00 |
环 |
Ring |
1 |
||
|
39 |
01-3913-02-00 |
主动锥齿轮 |
Drive bevel gear |
1 |
||
|
40 |
GB282-81 |
轴承 |
Bearing |
42307 |
1 |
35X80X21 |
|
41 |
01-3911-01-00 |
磁铁 |
Magnet |
Φ18X11 |
1 |
|
18. 后桥联接(三) Rear Axle Mountings (Ⅲ) (CDM1165, CDM1185, CDM1220)

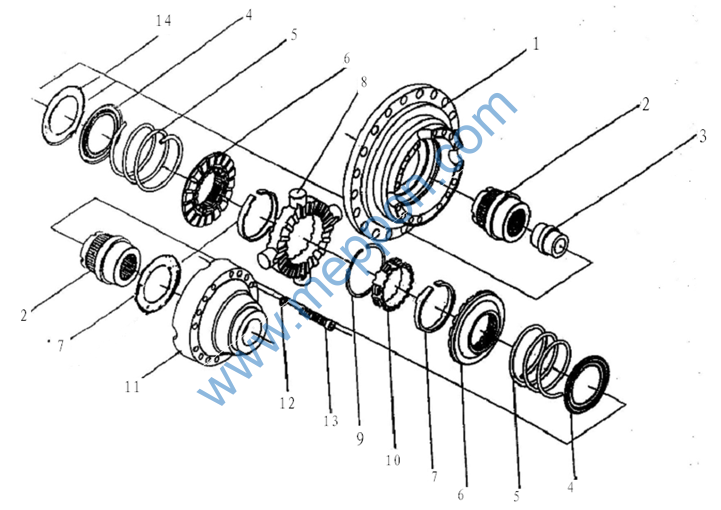

Figure 18 Rear Axle Mountings (Ⅲ)（CDM1165, CDM1185, CDM220)
|
Fig.18 |
后桥联接(三) Rear Axle Mountings (Ⅲ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
01-3914-01-00 |
半壳体 |
Half housing |
1 |
||
|
2 |
01-3915-01-00 |
花键套 |
Spline sleeve |
2 |
||
|
3 |
01-3910-15-00 |
垫 |
Pad |
1 |
||
|
4 |
01-3915-03-00 |
弹簧座 |
Spring seat |
2 |
||
|
5 |
01-3915-04-00 |
圆锥弹簧 |
Taper spring |
2 |
||
|
6 |
01-3915-05-00 |
从动环 |
Driven ring |
2 |
||
|
7 |
01-3915-09-00 |
活动环 |
Active ring |
2 |
||
|
8 |
01-3915-07-00 |
主动环 |
Drive ring |
1 |
||
|
9 |
01-3915-08-00 |
挡板 |
Baffle |
1 |
||
|
10 |
01-3915-06-00 |
中央环 |
Central ring |
1 |
||
|
11 |
01-3914-02-00 |
半壳体 |
Half housing |
1 |
||
|
12 |
JC10317-91 |
垫圈 |
Washer |
VS12-A3C |
16 |
|
|
13 |
GB70-85 |
螺钉 |
Screw |
M12X70-8.8 |
16 |
|
|
14 |
01-3914-03-00 |
垫 |
Pad |
2 |
||
