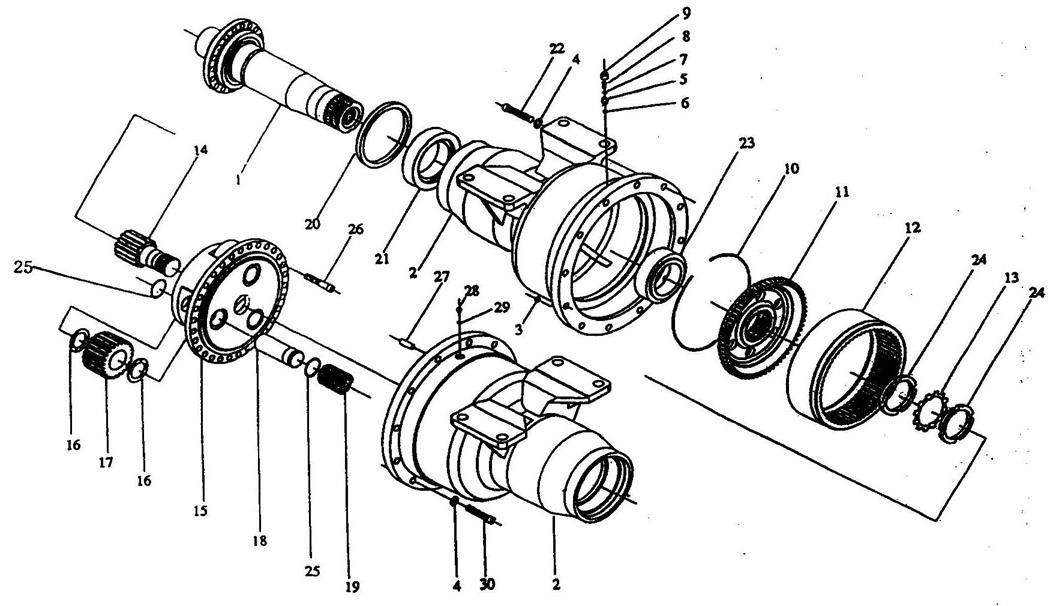

Figure 19 Rear Axle Mountings (Ⅳ)（CDM1165, CDM1185, CDM220)

Fig.19		后桥联接(四) Rear Axle Mountings (Ⅳ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	01-3920-02-00	双排链轮轴	Chain shaft		2
2	01-3920-01-00	桥体	Axle		2
3	01-3920-09-00	堵头	Stopper		4
4	GB848-85	垫圈	Washer	16	24
5	01-3921-01-00	阀体	Valve body		1
6	01-3921-02-00	密封垫片	Seal gasket		1
7	01-3921-03-00	球形垫	Ball gasket		1
8	01-3921-04-00	压力弹簧	Pressure spring		1
9	01-3921-05-00	保护罩	Protecting cover		1
10	01-3920-12-00	卡紧环	Lock ring		2
11	01-3920-05-00	齿圈支座	Ring gear seat		2
12	01-3920-06-00	齿圈	Ring gear		2
13	01-3920-13-00	防松垫片	Lock gasket		2
14	01-3920-04-00	小齿轮轴	Little gear shaft		2
15	01-3920-07-00	行星轮架	Planet gear carrier		2
16	01-3920-11-00	止动垫片	Stop gasket		12
17	01-3920-03-00	行星轮	Planet gear		6
18	01-3920-10-00	轴	shaft		6
19	01-3922-00-00	无套圈滚子轴承	Roller bearing		6
20		油封	Oil seal	A165X190X13	2
21	GB297-84	轴承	Bearing	3007122	2	110X170X47X37
22	GB70-85	螺钉	Screw	M16X80-10.9	12
23	GB297-84	轴承	Bearing	2007119E	2	94X145X32X24
24	JC10213-87	圆螺母	Round nut	M90X1.5	4
25	GB894.1-86	挡圈	Sprag	48	12
26	GB70-85	螺钉	Screw	M14X40-10.9	50
27	GB879-86	销	Pin	16X40	6
Fig.19		后桥联接(四) Rear Axle Mountings (Ⅳ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
28	JB1000-77	螺塞	Plug screw	M10X1	1
29	JB1002-77	垫圈	Washer	10	1
30	GB70-85	螺钉	Screw	M16X55-10.9	12

20. 后桥联接(五) Rear Axle Mountings (Ⅴ)(CDM1165, CDM1185, CDM1220)

Figure 20 Rear Axle Mountings (Ⅴ)（CDM1165, CDM1185, CDM220)

Fig.20		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	01-4060-00-00	通气帽	Vent cap		2
2	JB1002-77	垫圈	Washer	33	4
3	01-4000-15-00	盖	Cover		2
4	01-4000-16-00	密封垫	Seal gasket		4
5	GB5782-86	螺栓	Bolt	M8X16-8.8	56
6	GB93-86	垫圈	Washer	8	116
7	01-4000-17-00	盖	Cover		2
8	01-4000-14-00	密封垫	Seal gasket		4
9	01-4000-13-00	盖	Cover		4
10	GB3452.1-8	O形圈	O-ring	22.5X2.6	4
11	01-4000-26-00	套	Sleeve		2
12	01-4000-27-00	O形圈	O-ring	250X6	27
13	GB73-85	螺钉	Screw	M8X10	4
14	JC1082-73	螺塞	Plug screw	G1″	2
15	GB93-87	垫圈	Washer	12	100
16	GB5782-86	螺栓	Bolt	M12X35-8.8	48
17	GB297-84	轴承	Bearing	3007713	4
18	GB3452.1-8	O形圈	O-Ring	128X5.3	4
19	01-4000-03-00	盖	Cover		4
20	JC1002-77	垫圈	Washer	16	4
21	JB1001-77	螺塞	Plug screw	M16X1.5	4
22	01-4020-00-00	前链轮轴	Front chain shaft		2
23	01-4000-25-00	O形圈	O-Ring	405X5.33	4
24	01-4000-05-00	轴连接盘	Shaft connecting disc		4
25	GB297-84	轴承	Shaft	2007118E	4	90X140X32
26	01-4000-23-00	调整垫	Adjusting washer		4组
27	GB5782-86	螺栓	Bolt	M12X40-10.9	48

Fig.20		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
28	01-4010-00-00	制动器	Brake		4
29	GB93-87	垫圈	Washer	16	84
30	GB70-85	螺钉	Screw	M16X50-8.8	68
31	GB70-85	螺栓	Bolt	M8X25-8.8	48
32	01-4000-07-00	盖	Cover		48
33		油封	Oil seal	SD90X110X12	4
34	01-4000-06-00	制动鼓	Brake drum		4
35	01-4000-19-00	轮辋螺栓	Rim bolt		40
36	01-3800-02-00	弹簧圈	Spring ring		40
37	01-3800-01-00	轮辋螺母	Rim nut		40
38		滚子链	Roller chain	32B-1X52（加重）	4
39	JB1002-77	垫圈	Waher	42	2
40	01-3912-00-00	盖	Cover		2
41	01-4000-12-00	双排链轮	Double chain wheel		2
42	01-4000-08-00	盖	Cover		2
43	GB3452.1-8	O形圈	O-Ring	22.5X1.8	4
44	GB3452.1-8	O形圈	O-Ring	22.5X3.0	4
45	GB3452.1-8	O形圈	O-Ring	22.5X3.5	4
46	GB3452.1-8	O形圈	O-Ring	48X3.5	4
47	GB288-81	轴承	Bearing	53617	2
48	01-4000-11-00	盖	Cover		2
49	01-4000-09-00	盖	Cover		2
50	GB70-85	螺钉	Screw	M16X40-8.8	16
51	01-4000-21-00	垫圈	Washer		4
52	GB1096-79	平键	Flat key	A22X14X80	4
53	JC10212-87	螺母	Nut	M52X3	4
54	GB91-86	销	Pin	8X90	4

Fig.20		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
55	01-4000-22-00	罩	Cover		4
56	GB70-85	螺钉	Screw	M8X16-8.8	12
57	GB5783-86	螺栓	Bolt	M16X35-12.9	36
58	GB32.1-88	螺栓	Bolt	M12X40-10.9	12
59		铁丝	Iron wire	Φ1.5X250	6
60	GB70-85	螺钉	Screw	M12X35-8.8	16
61	01-4050-00-00	左平衡箱体	Left balance weight case		1
62	01-4030-00-00	右平衡箱体	Right balance weight case		1
63	01-4040-00-00	后链轮轴	Rear chain shaft		2

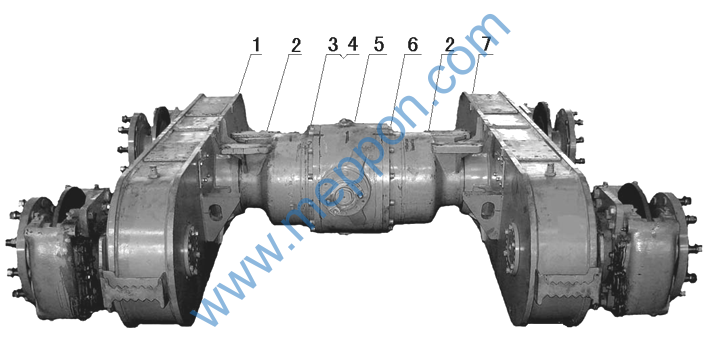

21. 后桥联接(一) Rear Axle Mountings (Ⅰ) (CDM1165, CDM1185)

Figure 21 Rear Axle Mountings (Ⅰ)（CDM1165, CDM1185)

Fig.21		后桥联接(一) Rear Axle Mountings (Ⅰ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	PY180.39.04	右平衡箱总成	Right balance weight assembly		1
2	PY180.39.02	轮边减速器总成	Wheel reducer assembly		2
