22. 后桥联接(二) Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185)

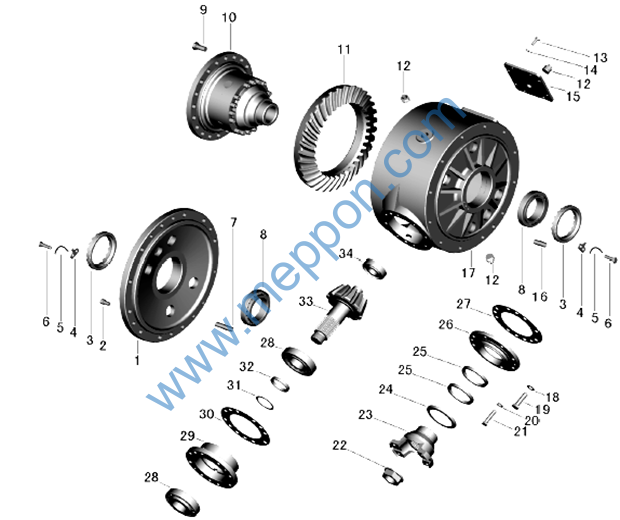

Figure 22 Rear Axle Mountings (Ⅱ)（CDM1165, CDM1185)

Fig.22		后桥联接(二) Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	PY180.39.01-12	壳盖	Cover		1
2	LD70.1	螺钉	Screw	M12X20	3
3	PY180.39.01-11	调整螺母	Adjusting nut		2
4	PY180.39.01-10	锁片	Lock plate		2
5	GS343	钢丝	Steel wire	ф1.5X80	2
6	LS32.3	螺栓	Bolt	M10X1X20	4
7	XZ879.1	销	Pin	16X65	1
8	ZC297/32016	轴承	Bearing	32016	2
9	LS5782	螺栓	Bolt	M16X35	20
10	NS180-1.1	防滑差速器总成	Differential assembly		1
11	PY180.39.01-09	盘形齿轮	Disc gear		1
12	402223	螺塞	Plug screw	ZG3/4	3
13	LS5782	螺栓	Bolt	M8X25	8
14	DQ93	垫圈	Washer	8	8
15	PY180.39.01-15	后盖	Rear cover		1
16	XZ879.1	销	Pin	16X40	1
17	PY180.39.01-13	主传动壳体	Final drive cover		1
18	DQ93	垫圈	Washer	12	7
19	LS5782	螺栓	Bolt	M12X55	7
20	DQ93	垫圈	Washer	14	1
21	LS5782	螺栓	Bolt	M14X55	1
22	PY180.39.01-01	锁紧螺母	Locknut		1
23	PY180.39.01.01-01	输入法兰	Input flange		1
24	PY180.39.01.01-02	防尘罩	Dust cover		1
25	YF9877.1	密封圈	Seal ring	FB75X95X10	2

Fig.22		后桥联接(二) Rear Axle Mountings (Ⅱ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
26	PY180.39.01-03	密封盖	Seal cover		1
27	PY180.39.01-04	垫密片	Gasket		1
28	ZC297/30311	轴承	Bearing	30311	2
29	PY180.39.01-06	轴承套	Bearing sleeve		1
30	PY180.39.01-05	调整垫片	Adjusting gasket		1set
31	PY180.39.01-07	调整垫片	Adjusting gasket		1set
32	PY180.39.01-08	轴套	Bush		1
33	PY180.39.01-02	主动锥齿轮	Driving gear		1
34	ZC283/NJ307	轴承	Bearing	NJ307	1

23. 后桥联接(三) Rear Axle Mountings (Ⅲ) (CDM1165, CDM1185)

Figure 23 Rear Axle Mountings (Ⅲ) (CDM1165, CDM1185)

Fig.23		后桥联接(三) Rear Axle Mountings (Ⅲ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	NS180-1.1-1	差速器大壳	Differential case		1
2	NS180-1.1-7	花键套	Spline sleeve		2
3	NS180-1.1-8	隔套	Separating sleeve		1
4	NS180-1.1-10	弹簧座	Spring seat		2
5	NS180-1.1-4	锥弹簧	Spring		2
6	NS180-1.1-2	从动环	Driven ring		2
7	NS180-1.1-6	活动环	Shifting ring		2
8	NS180-1.1-2	主动环	Driving ring		1
9	NS180-1.1-5	挡环	Snap ring		1
10	NS180-1.1-9	中央环	Central ring		1
11	NS180-1.1-11	差速器小壳	Differential case		1
12	DQ93	垫圈	Washer	12	16
13	LD70.1	螺钉	Screw	M12X70	16

24. 后桥联接(四) Rear Axle Mountings (Ⅳ) (CDM1165, CDM1185)

Figure 24 Rear Axle Mountings (Ⅳ) (CDM1165, CDM1185)

Fig.24		后桥联接(四) Rear Axle Mountings (Ⅳ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	PY180.39.02-01	双排链轮轴	Double chain shaft		2
2	991503402	油封	Oil seal	A165X190X13	2
3	ZC297/33022	轴承	Bearing	33022	2
4	PY180.39.02-02	桥壳	Axle housing		2
5	Q9001	放气阀	Air bleed valve	M10X1	2
6	ZC297/32019	轴承	Bearing	32019	2
7	PY180.39.02-06	钢丝挡圈	Snap ring		2
8	PY180.39.02-04	齿圈支承	Ring gear support		2
9	PY180.39.02-05	齿圈	Ring gear		2
10	PY180.39.02-03	圆螺母	Round nut		4
11	PY180.39.02-13	止动垫圈	Stop washer		2
12	PY180.39.02-11	太阳轮轴	Sun gear shaft		2
13	DA894.1	挡圈48	Sprag		6
14	PY180.39.02-07	行星轮架	Planet gear carrier		2
15	DQ93	垫圈	Washer	14	50
16	LD70.1	螺钉	Screw	M14X40	50
17	XZ879.1	销	Pin	16X40	4
18	PY180.39.02-12	行星轮轴	Planet gear shaft		6
19	GQ308	钢球	Steel ball	3/8	6
20	PY180.39.02-08	垫片	Gasket		12
21	PY180.39.02-09	挡环	Snap ring		18
22	PY180.39.02-10	行星轮	Planet gear		6
23	GZ309	滚针	Needle	6X29.8	336

25. 后桥联接(五) Rear Axle Mountings (Ⅴ)(CDM1165, CDM1185)

Figure 25 Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185)

Fig.25		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	PY180.39.03-17L	左上盖板	Left upper cover board		2
2	PY180.39.03.01	左平衡箱焊合	Left balance weight weldment		1
3	LD70.1	螺钉	Screw	M8X20	40
4	PY180.39.03-17R	右上盖板	Right upper cover board		2
5	PY190.4.3-23	放气阀	Air bleed valve		2
6	PY180.39.04.01	右平衡箱焊合	Right balance weight weldment		1
7	PY180.39.03.03A	衬套	Bush		2
8	LD73	螺钉	Screw	M10X12	4
9	OQ3452.1	O 型圈	O-ring	250X6	2
10	YB7940.2	油杯	Oil cup	M10X1	2
11	PY190.4.3-21	侧盖	Side cover		4
12	DQ93	垫圈	Washer	8	88
13	LS5782	螺栓	Bolt	M8X25	24
14	PY180.39.03-20	螺塞	Plug screw	ZG3/8″	4
15	LS5782	螺栓	Bolt	M12X35	96
16	402223	螺塞	Plug screw	ZG3/4″	6
17	DQ93	垫圈	Washer	12	10
18	PY180.39.03-01	前后链轮轴座盖	Chains shaft cover		4
19	OQ3452.1	O型圈	O-ring	128X5.3	4
20	ZC297/33113	轴承	Bearing	33113	4
21	PY180.39.03.02A	后链轮轴焊合	Rear chain shaft weldment		2
22	PY180.39.03.05	爬梯	Ladder		4
23	LS5782	螺栓	Bolt	M12X45	12
24	LS5782	螺栓	Bolt	M20X60	36
25	DQ93	垫圈	Washer	20	4
Fig.25		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
26	PY180.39.03-21	支架	Bracket		4
27	ZC297	轴承	Bearing	32018	4
28	PY180.39.03-09	调整垫片	Adjusting gasket		4
29	PY180.39.03-10	油封座	Oil seal seat		4
30	YF4-692	油封	Oil seal	SD90X110X12	4
31	JC-A-S.M	制动器总成	Brake assembly		6
32	PY180.39.03-11	轮辋螺栓	Rim bolt		40
33	PY180.39.03-13	轮辋螺栓	Rim bolt		40
34	PY180.39.03-12	轮辋螺栓	Rim bolt		40
35	XZ91	开口销	Cotter pin	8X90	4
36	LS5782	螺栓	bolt	M8X25	12
37	PY180.39.03-16	防尘罩	Dust cover		4
38	PY180.39.03-15	螺母	Nut		4
39	PY180.39.03-14	垫圈	Washer		4
40	PJ1096	平键	Flat key	C22X14X95	4
41	PY180.39.03-08	制动毂	Brake hub		4
42	LS5782	螺栓	Bolt	M8X16	4
43	PY180.39.03-26	护盖	Cover		2
44	PY180.39.03.05	油标	Oil dipstick	M27X1.5	2
45	LS21	螺栓	Bolt	M8X25	48
46	PY180.39.03-06	铁丝	Iron wire		6
47	LD70.1-2000	螺钉	Screw	M16X50	96
48	DQ93/16	垫圈	Washer	16	96
49	PY180.39.03-03	双排链轮轴座盖	Double chain shaft cover		2
50	LS5782	螺栓	Bolt	M16X35-12.9	36
51	PY180.39.03-07A	轮毂	Wheel hub		4
52	OQ3452.1	O型圈	O-ring	405X5.33	4
Fig.25		后桥联接(五) Rear Axle Mountings (Ⅴ) (CDM1165, CDM1185)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
53	LT1243	滚子链	Roller chain	32B-1X52	2
54	PY180.39.03.04A	前链轮轴焊合	Front chain shaft weldment		2
55	PY180.39.03-02A	双排链轮	Double chain wheel		2
56	ZC288/22317C	轴承	Bearing	22317C	2
57	PY180.39.03-05	轴承挡板	Bearing baffle		2
58	LS32.1	螺栓	Bolt	M12X40	12
59	PY180.39.03-04	轴承端盖	Bearing end cover		2
60	LD70.1	螺钉	Screw	M12X30	16
