LONKING CDM1165 CDM1185 CDM1220 MOTOR GRADER PARTS CATALOG 08
|
28 |
LG1185.04-005 |
密封垫 |
Seal gasket |
1 |
90040005 |
|||
|
Fig.30 |
变速箱连接（一）Transmission Connect(Ⅰ)( CDM1165) |
|||||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
||
|
29 |
GB97.2-85 |
垫圈 |
Washer |
20 |
4 |
|||
|
30 |
GB5783-86 |
螺栓 |
Bolt |
M20X40 |
4 |
|||
|
31 |
LG1185.04.01.02 |
右支架 |
Right Bracket |
1 |
90041200 |
|||
|
32 |
GB893.1-86 |
挡圈 |
Snap ring |
14 |
1 |
|||
|
33 |
LG1185.04-006 |
连接盘 |
Connecting disc |
1 |
90040006 |
|||

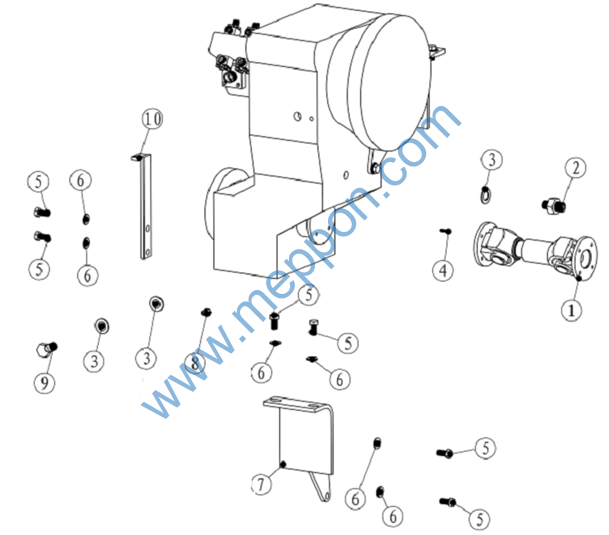

31. 变速箱连接（二）Transmission Connect(Ⅱ)( CDM1165)
Figure 31 Transmission Connect(Ⅱ)( CDM1165)
|
Fig.31 |
变速箱连接（二）Transmission Connect(Ⅱ)( CDM1165) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.04.08 |
传动轴 |
Drive shaft |
1 |
90048005 |
|
|
2 |
LG1185.11-023 |
接头 |
Connector |
1 |
90110023 |
|
|
3 |
JB982 |
垫圈 |
Washer |
30 |
3 |
|
|
4 |
LG1185.04-030(01) |
螺栓 |
Bolt |
8 |
||
|
5 |
GB5783-86 |
螺栓 |
Bolt |
G1/2 |
6 |
|
|
6 |
GB97.2-85 |
垫圈 |
Washer |
20 |
6 |
|
|
7 |
LG1185.04.01.01 |
左支架 |
Left Bracket |
1 |
90041100 |
|
|
8 |
LG1185.04.40 |
测压接头 |
Pressure connector |
1 |
LSMK20-M14X1.5-PB |
|
|
9 |
LG1185.04-009 |
空心螺栓 |
Bolt |
1 |
90040009 |
|
|
10 |
LG1185.04.01.03 |
支板 |
Support Plate |
1 |
90041300 |
|

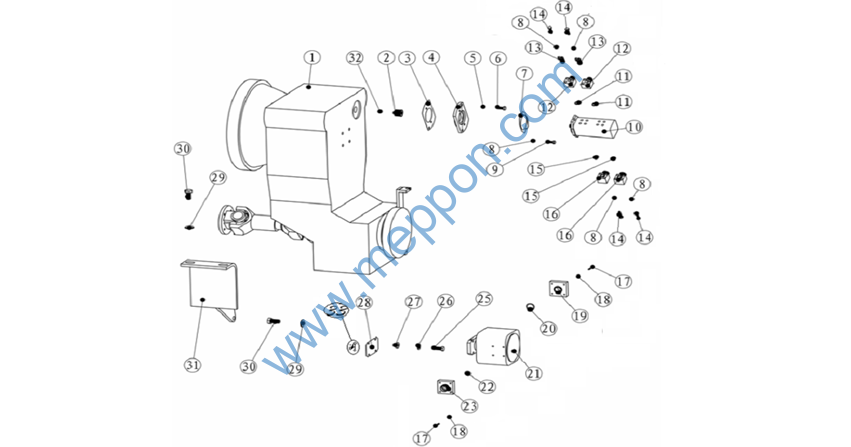

32. 变速箱连接（一）Transmission Connect(Ⅰ)( CDM1185, CDM1220)
Figure 32 Transmission Connect(Ⅰ)( CDM1185, CDM1220)
|
Fig.32 |
变速箱连接（一）Transmission Connect(Ⅰ)( CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.04.12 |
动力换档变速箱 |
Transmission assembly |
6WG180 |
1 |
|
|
2 |
LG1185.04-002 |
花键套 |
Spline sleeve |
1 |
90040002 |
|
|
3 |
LG1185.04-003 |
密封垫 |
Seal gasket |
1 |
90040003 |
|
|
4 |
LG1185.04-001 |
过渡盘 |
Transition disc |
1 |
90040001 |
|
|
5 |
GB93-87 |
垫圈 |
Washer |
12 |
2 |
|
|
6 |
GB5783 |
螺栓 |
Bolt |
M12X30 |
2 |
|
|
7 |
LG1185.04-004 |
密封垫 |
Seal gasket |
1 |
90040004 |
|
|
8 |
GB93-87 |
垫圈 |
Washer |
10 |
18 |
|
|
9 |
GB5783 |
螺栓 |
Bolt |
M10x30 |
2 |
|
|
10 |
LG1185.04.10 |
双联齿轮泵 |
Gear pump |
1 |
CBK1020-1008B3FL |
|
|
11 |
GB3452.1 |
密封圈 |
Seal ring |
18X2.65 |
2 |
|
|
12 |
LG1185.04-013 |
接头 |
Connector |
2 |
90040013 |
|
|
13 |
LSMK20-M14X1.5-PB |
测压接头 |
Pressure connector |
2 |
||
|
14 |
GB5783-86 |
螺栓 |
Bolt |
M10X40 |
16 |
|
|
15 |
GB3452.1 |
密封圈 |
Seal ring |
22.4X2.65 |
2 |
|
|
16 |
LG1185.04-012 |
接头 |
Connector |
2 |
90040012 |
|
|
17 |
GB5782-86 |
螺栓 |
Bolt |
M6X50 |
8 |
|
|
18 |
GB93-87 |
垫圈 |
Washer |
6 |
8 |
|
|
19 |
LG1185.04-010 |
接头 |
Connector |
1 |
90040010 |
|
|
20 |
GB3452.1 |
密封圈 |
Seal ring |
56X3.55 |
1 |
|
|
21 |
LG1185.04.11 |
齿轮泵 |
Gear pump |
1 |
GPC43232-C7R |
|
|
22 |
GB3452.1 |
密封圈 |
Seal ring |
32X4 |
1 |
|
|
23 |
LG1185.04-011 |
接头 |
Connector |
2 |
90040011 |
|
|
25 |
GB5783-86 |
螺栓 |
Bolt |
M14X40 |
4 |
|
|
26 |
GB97.1-85 |
垫圈 |
Washer |
14 |
4 |
|
|
27 |
LG1185.04-031 |
垫圈 |
Washer |
4 |
42070402 |
|
|
28 |
LG1185.04-005 |
密封垫 |
Seal gasket |
1 |
90040005 |
|
|
Fig.32 |
变速箱连接（一）Transmission Connect(Ⅰ)( CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
29 |
GB97.2-85 |
垫圈 |
Washer |
20 |
4 |
|
|
30 |
GB5783-86 |
螺栓 |
Bolt |
M20X45 |
4 |
|
|
31 |
LG1185.04.01.02 |
右支架 |
Right Bracket |
1 |
90041200 |
|
|
32 |
GB893.1-86 |
挡圈 |
Snap ring |
14 |
1 |
|
|
33 |
LG1185.04-006 |
连接盘 |
Connecting disc |
1 |
90040006 |
|

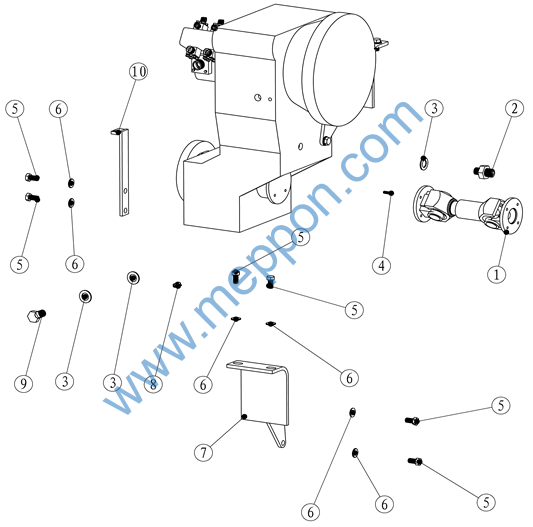

33. 变速箱连接（二）Transmission Connect(Ⅱ)( CDM1185, CDM1220)
Figure 33 Transmission Connect(Ⅱ)( CDM1185, CDM1220)
|
Fig.33 |
变速箱连接（二）Transmission Connect(Ⅱ)( CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.04.08 |
传动轴 |
Drive shaft |
1 |
90048005 |
|
|
2 |
LG1185.11-023 |
接头 |
Connector |
1 |
90110023 |
|
|
3 |
JB982 |
垫圈 |
Washer |
30 |
3 |
|
|
4 |
LG1185.04-030(01) |
螺栓 |
Bolt |
8 |
||
|
5 |
GB5783-86 |
螺栓 |
Bolt |
G1/2 |
6 |
|
|
6 |
GB97.2-85 |
垫圈 |
Washer |
20 |
6 |
|
|
7 |
LG1185.04.01.01 |
左支架 |
Left Bracket |
1 |
90041100 |
|
|
8 |
LG1185.04.40 |
测压接头 |
Pressure connector |
1 |
LSMK20-M14X1.5-PB |
|
|
9 |
LG1185.04-009 |
空心螺栓 |
Bolt |
1 |
90040009 |
|
|
10 |
LG1185.04.01.03 |
支板 |
Support Plate |
1 |
90041300 |
|

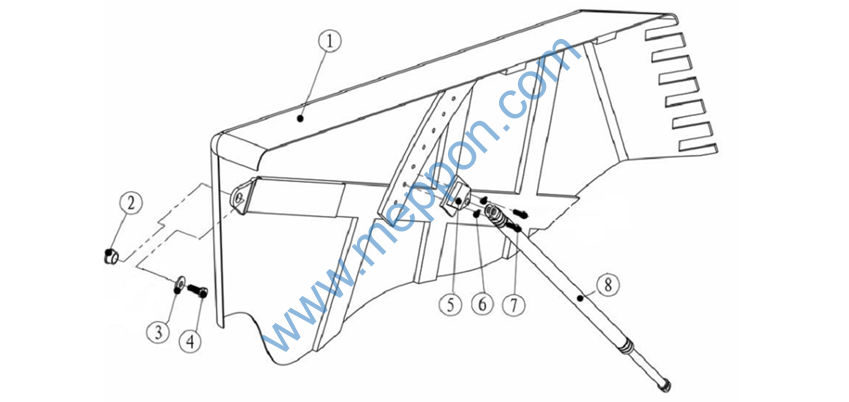

34. 机罩总成（一） Hood Assembly (Ⅰ) (CDM1165, CDM1185, CDM1220)
Figure 34 Hood Assembly(Ⅰ) (CDM1165, CDM1185, CDM1220)
|
Fig.34 |
机罩总成（一） Hood Assembly(Ⅰ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.18.01 |
机罩焊接 |
Hood weldment |
1 |
||
|
2 |
GB/T6178 |
螺母 |
Nut |
M12 |
2 |
|
|
3 |
LG1185.18-005 |
垫圈 |
Washer |
2 |
90180005 |
|
|
4 |
GB5783-86 |
螺栓 |
Bolt |
M12X30 |
2 |
|
|
5 |
LG1185.18.03 |
支架 |
Support bracket |
2 |
90183000 |
|
|
6 |
GB93-87 |
垫圈 |
Washer |
8 |
4 |
|
|
7 |
GB5783-86 |
螺栓 |
Bolt |
M8X20 |
4 |
|
|
8 |
LG1185.18.06 |
气弹簧 |
Pneumatic spring |
2 |
QT-1440-790-650 |
|

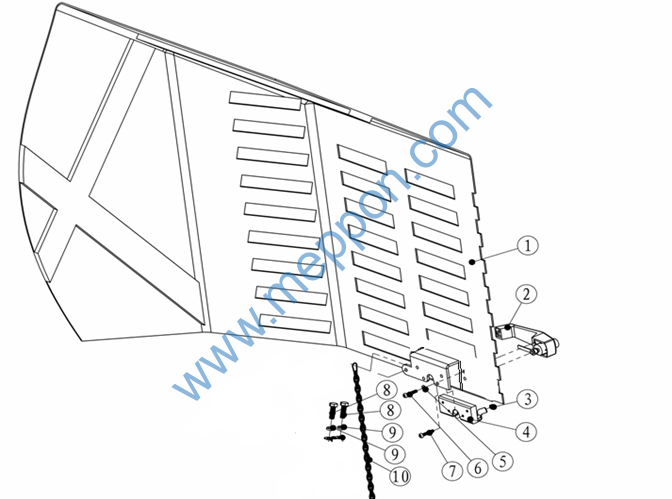

35. 机罩总成（二） Hood Assembly (Ⅱ) (CDM1165, CDM1185, CDM1220)
Figure 35 Hood Assembly(Ⅱ) (CDM1165, CDM1185, CDM1220)
