LONKING CDM1165 CDM1185 CDM1220 MOTOR GRADER PARTS CATALOG 09
|
Fig.35 |
机罩总成（二） Hood Assembly(Ⅱ) (CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.18.01 |
机罩焊接 |
Hood welding |
1 |
||
|
2 |
LG1185.18.07 |
锁把 |
Lock hand lever |
NBS714 |
1 |
|
|
3 |
GB889-86 |
螺母 |
Nut |
6 |
4 |
|
|
4 |
LG1185.18.07 |
锁体 |
Lock body |
NBS714 |
1 |
|
|
5 |
GB97.1-85 |
垫圈 |
Washer |
6 |
3 |
|
|
6 |
GB67-85 |
螺钉 |
Screw |
M6X30 |
3 |
|
|
7 |
GB57 |
螺钉 |
Screw |
M6X40 |
4 |
|
|
8 |
GB5783-86 |
螺栓 |
Bolt |
M10X30 |
2 |
|
|
9 |
GB93-87 |
垫圈 |
Washer |
10 |
2 |
|
|
10 |
LG1185.18-030 |
钢丝绳 |
Wire |
1 |
90212313 |
|
36. 操纵台装配 Control Console Assembly (CDM1165, CDM1185, CDM1220)

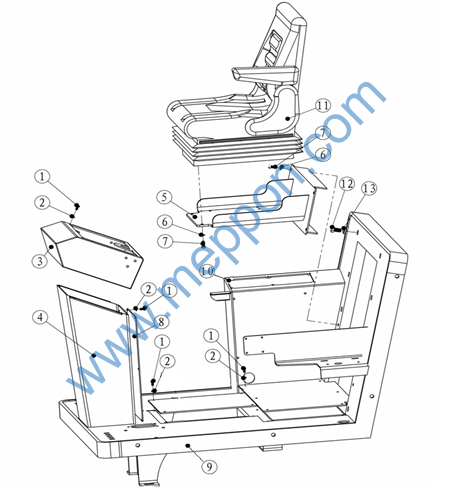

Figure 36 Control Console Assembly (CDM1165, CDM1185, CDM1220)
|
Fig.36 |
操纵台装配 Control Console Assembly(CDM1165, CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
GB/T5783 |
螺栓 |
Bolt |
M8X16 |
22 |
|
|
2 |
GB/T93 |
垫圈 |
Washer |
8 |
22 |
|
|
3 |
LG1185.15.02 |
仪表箱焊接 |
Instrument box welding |
1 |
90202000 |
|
|
4 |
LG1185.15.07 |
台柱安装 |
Bracket mounting |
1 |
90207000 |
|
|
5 |
LG1185.15.03 |
座椅支架 |
Seat support |
1 |
90203000 |
|
|
6 |
GB/T93 |
垫圈 |
Washer |
10 |
8 |
|
|
7 |
GB/T5783 |
螺栓 |
Bolt |
M10X35 |
8 |
|
|
8 |
LG1185.15-038 |
盖板 |
Cover board |
|
1 |
90200038 |
|
9 |
LG1185.15.01 |
操纵台焊接 |
Control console welding |
1 |
90201000 |
|
|
10 |
LG1185.15.01.02 |
操纵箱 |
Control box |
1 |
90201200 |
|
|
11 |
DS85H/90 |
座椅 |
Chair |
1 |
||
|
12 |
GB/T5783 |
螺栓 |
Bolt |
M16X55 |
6 |
|
|
13 |
GB/T93 |
垫圈 |
Washer |
16 |
6 |
|
37. 刹车操纵（一） Brake Control (Ⅰ) (CDM1165)

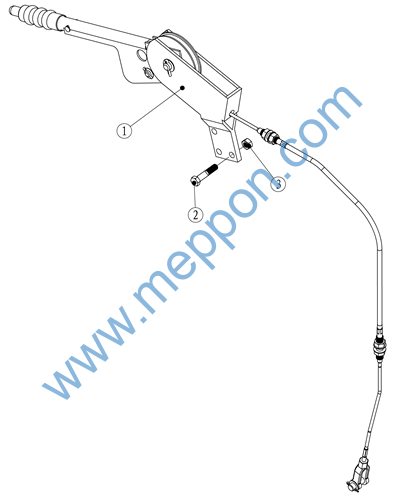

Figure 37 Brake Control(Ⅰ) (CDM1165)
|
Fig.37 |
刹车操纵（一） Brake Control(Ⅰ) (CDM1165) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.12.01 |
手刹制动杆 |
Brake lever |
Lj112 |
1 |
|
|
2 |
GB5782-86 |
螺栓 |
Bolt |
M10x50 |
3 |
|
|
3 |
GB889-86 |
螺母 |
Nut |
M10 |
3 |
|
38. 刹车操纵（二） Brake Control (Ⅱ) (CDM1165)

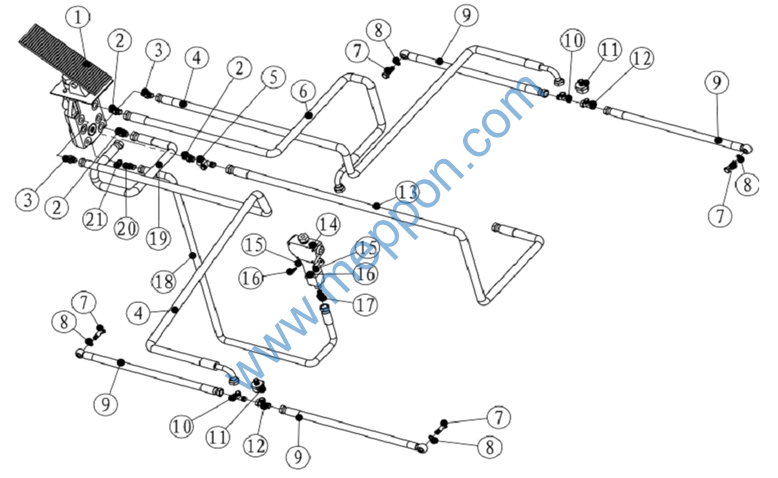

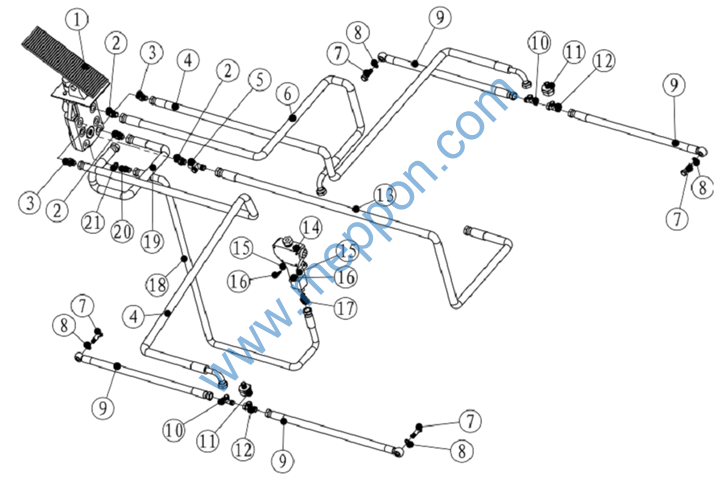

Figure 38 Brake Control(Ⅱ) (CDM1165)
|
Fig.38 |
刹车操纵（二） Brake Control(Ⅱ) (CDM1165) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1165.12.21 |
制动阀总成 |
Braking valve assembly |
1 |
(PDF-06-00) |
|
|
2 |
1CM-18-16WD |
接头 |
Connector |
2 |
||
|
3 |
1CM-16WD |
接头 |
Connector |
7 |
||
|
4 |
8-210G13-2600 |
软管总成 |
Hose assembly |
2 |
||
|
5 |
CC-18 |
三通接头 |
T-connector |
1 |
||
|
6 |
10-60G13-2100 |
软管总成 |
Hose assembly |
1 |
||
|
7 |
JB/T999 |
空心螺栓 |
Bolt |
M14x1.5×36 |
4 |
|
|
8 |
JB982-77 |
组合垫圈 |
Combination washer |
14 |
4 |
|
|
9 |
8-210G1Q1-850 |
软管总成 |
Hose assembly |
4 |
||
|
10 |
AC-16 |
三通接头 |
T-connector |
2 |
||
|
11 |
LG1185.12.03 JB/T999-77 |
铰接螺栓 |
Articulating bolt |
M12 |
2 |
|
|
12 |
JB/T999-77 |
铰接螺栓 |
Articulating bolt |
M14 |
2 |
|
|
13 |
10-210G13-900 |
软管总成 |
Hose assembly |
1 |
||
|
14 |
LG1185.11-001 |
合流块 |
Block |
1 |
||
|
15 |
GB93-87 |
垫圈 |
Washer |
6 |
2 |
|
|
16 |
GB5783-86 |
螺栓 |
Bolt |
M6x22 |
2 |
|
|
17 |
1CM-18-22WD |
接头 |
Connector |
1 |
||
|
18 |
8-210G11-2400 |
软管总成 |
Hose assembly |
1 |
||
|
19 |
8-210G1Q1-1050 |
软管总成 |
Hose assembly |
2 |
||
|
20 |
LG1185.12-014 |
接头 |
Connector |
1 |
90110014 |
|
|
21 |
JB982-77 |
组合垫圈 |
Combination washer |
16 |
1 |
|
39. 刹车操纵（三） Brake Control (Ⅲ) (CDM1165)

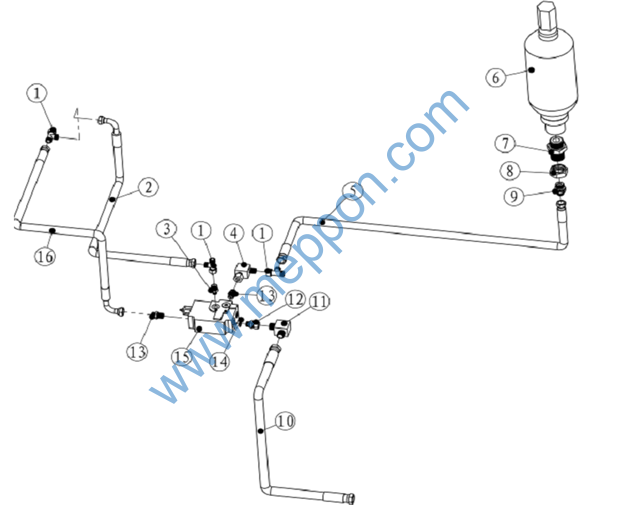

Figure 39 Brake Control(Ⅲ) (CDM1165)
|
Fig.39 |
刹车操纵（三） Brake Control(Ⅲ) (CDM1165) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
CC-18 |
三通接头 |
T-connector |
3 |
||
|
2 |
10-60G13-750 |
软管总成 |
Hose assembly |
1 |
||
|
3 |
LG1185.12-003 |
接头 |
Connector |
1 |
90170003 |
|
|
4 |
2C9-18 |
弯接头 |
Connector |
1 |
||
|
5 |
10-210G13-1800 |
软管总成 |
Hose assembly |
1 |
||
|
6 |
LG1185.12.06 |
蓄能器 |
Accumulator |
1 |
NXQ-1.6-200 |
|
|
7 |
LG1185.12-018 |
接头 |
Connector |
1 |
90170018 |
|
|
8 |
GB3763-83 |
螺母 |
Nut |
M42x2 |
1 |
|
|
9 |
1CM-18-16WD |
接头 |
Connector |
1 |
||
|
10 |
13-210G13-800 |
软管总成 |
Hose assembly |
1 |
||
|
11 |
2C9-22 |
弯接头 |
Connector |
1 |
||
|
12 |
1CM-22-18WD |
接头 |
Connector |
1 |
||
|
13 |
1CM-18WD |
接头 |
Connector |
2 |
||
|
14 |
JB982-77 |
组合垫圈 |
Combination washer |
18 |
1 |
|
|
15 |
LG1165.12.22 |
限压阀 |
Pressure limit valve |
PDF-05-00 |
1 |
|
|
16 |
10-60G13-850 |
软管总成 |
Hose assembly |
1 |
||
40. 刹车操纵（一） Brake Control(Ⅰ) (CDM1185, CDM1220)

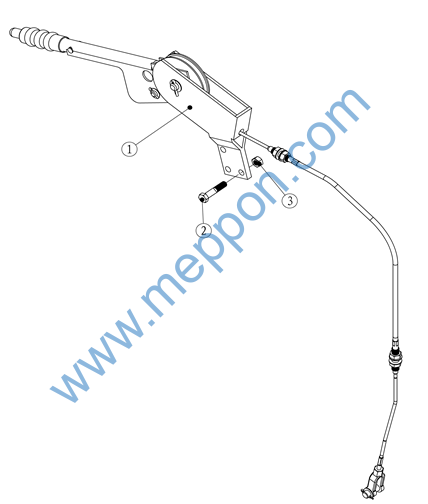

Figure 40 Brake Control(Ⅰ) (CDM1185, CDM1220)
|
Fig.40 |
刹车操纵（一） Brake Control(Ⅰ) (CDM1185, CDM1220) |
|||||
|
Item |
Parts number |
Chinese description |
English description |
Specification |
Qty |
Used No. |
|
1 |
LG1185.12.01 |
手刹制动杆 |
Brake lever |
Lj112 |
1 |
|
|
2 |
GB5782-86 |
螺栓 |
Bolt |
M10x50 |
3 |
|
|
3 |
GB889-86 |
螺母 |
Nut |
M10 |
3 |
|
41. 刹车操纵（二） Brake Control(Ⅱ) (CDM1185, CDM1220)
