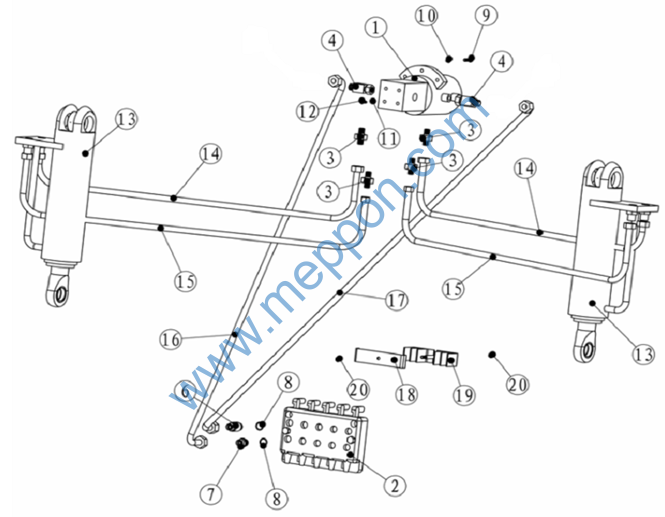

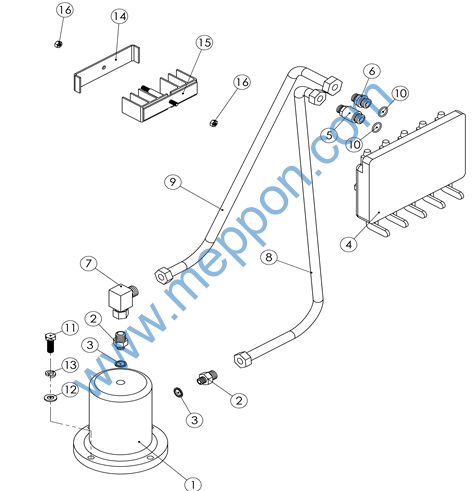

Fig.47

工作液压系统(二) Hydraulic Working System (Ⅱ)（CDM1165, CDM1185, CDM1220)

Item

Parts number

Chinese description

English description

Specification

Qty

Used No.

1

LG1185.12.11

定位油缸

Locating cylinder

1

90118200

2

1CM-18-16

直接头

Connector

2

3

JB982-77

组合垫圈

Combination washer

16

2

4

LG1185.11.15

多路阀

Multi-way valve

1

5

LG1185.12-026

接头

Connector

1

EL90110026

6

1CO-18-08

接头

Connector

1

7

2C9-18

接头

Connector

1

8

10-210G13-2800

软管总成

Hose assembly

1

9

10-210G13-2800

软管总成

Hose assembly

1

10

GB3452.1-82

O型圈

O-ring

19X2.46

2

11

GB70-86

螺栓

Bolt

M12x45

4

12

GB97.1-85

垫圈

Washer

12

4

13

GB93-87

垫圈

Washer

12

4

14

LG1185.11-003

管夹盖

Pipe clamp cover

1

90110003

15

LG1185.11.01

管夹座

Pipe clamp seat

1

90110100

16

GB6170-86

螺母

Nut

M8

2

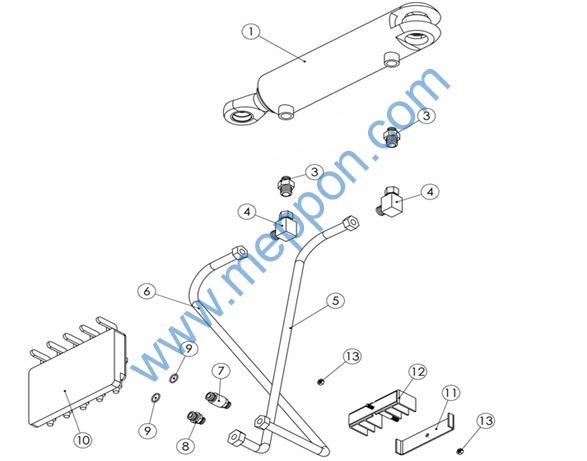

Fig.48

工作液压系统(三) Hydraulic Working System (Ⅲ)（CDM1165, CDM1185, CDM1220)

Item

Parts number

Chinese description

English description

Specification

Qty

Used No.

1

LG1185.35.06

后松土器油缸

Back ripper cylinder

1

3

2C-18-24

弯接头

Connector

2

4

2C9-18

接头

Connector

2

5

10-210G13-4100

软管总成

Hose assembly

1

6

10-210G13-4400

软管总成

Hose assembly

1

7

LG1185.11-026

接头

Connector

1

90110026

8

1CO-18-08

接头

Connector

1

9

GB3452.1-82

O型圈

O-ring

19X2.46

2

10

LG1185.11.15

多路阀

Multi-way valve

1

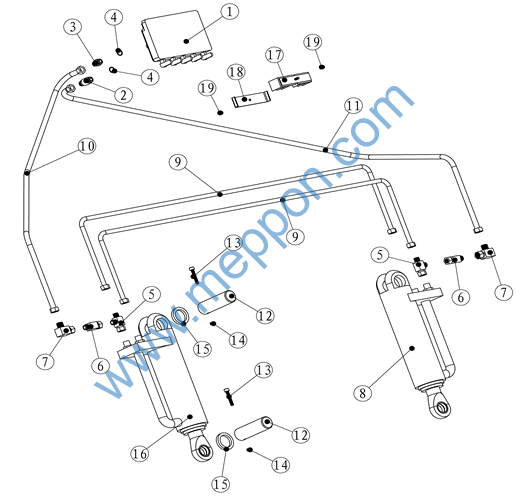

Fig.49

工作液压系统(四) Hydraulic Working System (Ⅳ)（CDM1165, CDM1185, CDM1220)

Item

Parts number

Chinese description

English description

Specification

Qty

Used No.

1

LG1185.11.15

多路阀

Multi-way valve

1

2

LG1185.11-026

接头

Connector

1

90110026

3

1CO-18-08

接头

Connector

1

4

GB3452.1-82

O型圈

O-ring

19X2.46

2

5

CC-22

三通

T-Connector

2

6

2C–18-22

接头

Connector

2

7

2C9-18

接头

Connector

2

8

LG1185.12.09

右折腰油缸

Right bow cylinder

1

90119000

9

13-210G11-1900

液压软管

Hydraulic hose

2

10

10-210G13-1700

液压软管

Hydraulic hose

1

11

10-210G13-1050

液压软管

Hydraulic hose

1

12

LG1185.12-017

销轴

Pin shaft

4

90110017

13

GB70-85

螺钉

Screw

M10X90

4

14

GB1337-88

螺母

Nut

M10

4

15

LG1185.11-018

垫圈

Washer

4

90110018

16

LG1185.12.10

左折腰油缸

Left bow cylinder

1

90119100

17

LG1185.11.01

管夹座

Pipe clamp cover

1

90110100

18

LG1185.11-003

管夹盖

Pipe clamp seat

1

90110003

19

GB6170-86

螺母

Nut

M8

2

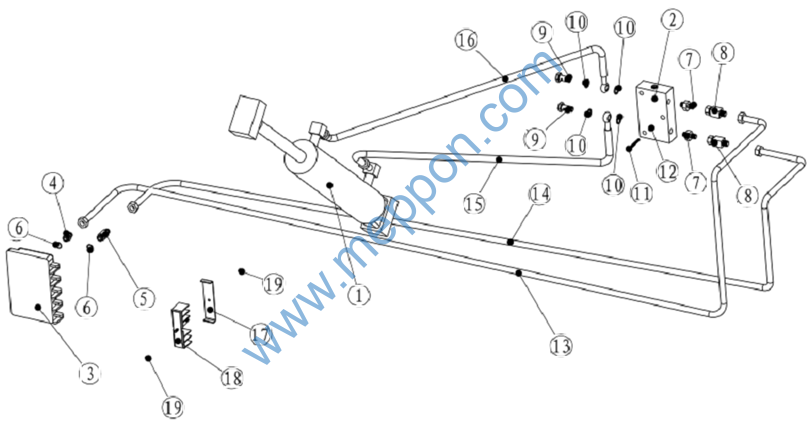

Fig.50

工作液压系统(五) Hydraulic Working System (Ⅴ)（CDM1165, CDM1185, CDM1220)

Item

Parts number

Chinese description

English description

Specification

Qty

Used No.

1

LG1185.12.13

摆动油缸

Swing cylinder

1

90118500

2

LG1185.12.12

双向液压锁

Two-way hydraulic lock

SYS-L10H3

1

3

LG1185.11.15

多路阀

Multi-way valve

1

4

1CO-18-08

接头

Connector

1

5

LG1185.11-026

接头

Connector

1

90110026

6

GB3452.1-82

O型圈

O-ring

19X2.46

2

7

1CM-18-22 WD

直接头

Connector

2

8

接头

Connector

2

9

JBT999

空心螺栓

Bolt

M22X1.5

2

10

JB982-77

组合垫圈

Combination washer

22

4

11

GB70-85

螺钉

Screw

M8X70

3

12

GB93-87

垫圈

Washer

8

3

13

10-210G13-8250

软管总成

Hose assembly`

1

14

10-210G13-8250

软管总成

Hose assembly

1

15

13-210G1Q1-1000

软管总成

Hose assembly

1

16

13-210G1Q1-900

软管总成

Hose assembly

1

17

LG1185.11-003

管夹盖

Pipe clamp cover

1

90110003

18

LG1185.11.01

管夹座

Pipe clamp seat

1

90110100

19

GB6170-86

螺母

Nut

M8

2

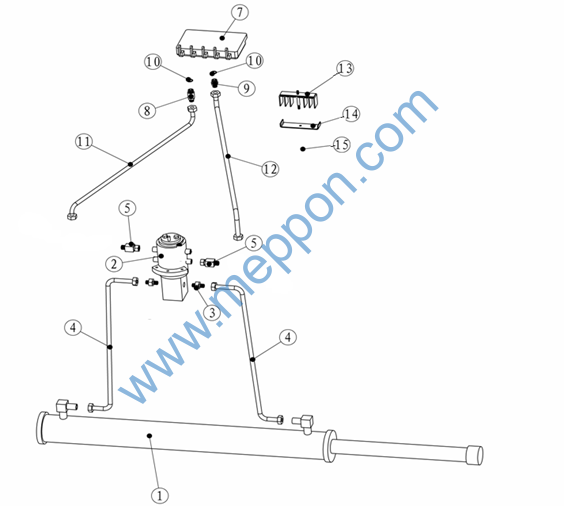

Fig.51

工作液压系统(六) Hydraulic Working System (Ⅵ)（CDM1165, CDM1185, CDM1220）

Item

Parts number

Chinese description

English description

Specification

Qty

Used No.

1

LG1185.11.17

侧移油缸

Side shift cylinder

1

2

LG1185.11.14

旋转接头

Rotating onnector

1

3

1CM-22 WD

直接头

Connector

2

4

13-210G13-1000

软管总成

Hose assembly

2

5

2D–18-24

接头

Connector

2

7

LG1185.11.15

多路阀

Multi-way valve

1

8

LG1185.11-026

接头

Connector

1

90110026

9

1CO-18-08

接头

Connector

1

10

GB3452.1-82

O型圈

O-ring

19X2.46

2

11

10-210G13-8500

软管总成

Hose assembly

1

12

10-210G13-8500

软管总成

Hose assembly

1

13

LG1185.11.01

管夹座

Pipe clamp cover

1

90110100

14

LG1185.11-003

管夹盖

Pipe clamp seat

1

90110003

15

GB6170-86

螺母

Nut

M8

2
