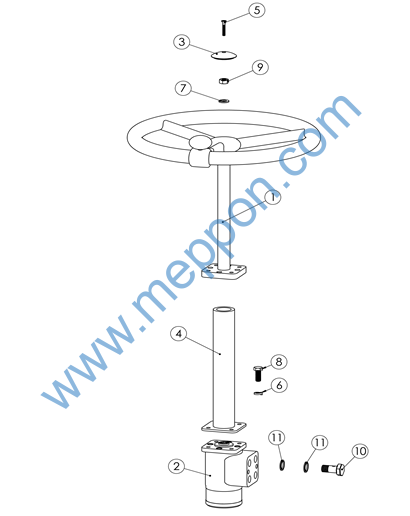

Figure 58 Steering Gear Assembly（CDM1165, CDM1185, CDM1220）

Fig.58		转向器总成 Steering Gear assembly（CDM1165, CDM1185, CDM1220）
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1185.10-001	方向盘总成	Hand wheel assembly		1	90100001
2	BZZ1-200-B	转向器	Redirector		1
3	12ZJ563-7	方向盘盖	Hand wheel cover		1
4	ZXG2.434	舵杆	Steering column		1
5	GB819-85	螺钉	Screw	M6X35	1
6	GB93-87	垫圈	Washer	12	4
7	GB97.1-85	垫圈	Washer	12	1
8	GB5782-86	螺栓	Bolt	M12x30	4
9	GB6170-86	螺母	Nut	M12	1
10	WB2-831-3	空心螺栓	Bolt		4
11	JB982-77	组合垫圈	Combination washer	20	8

59. 油箱总成 Oil Tank Assembly（CDM1165, CDM1185, CDM1220）

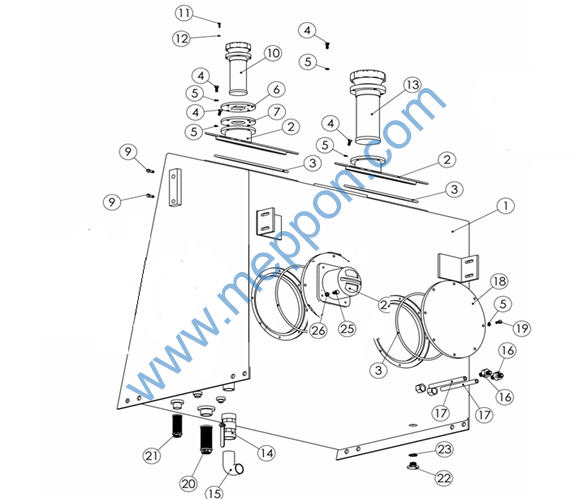

Figure 59 Oil Tank Assembly（CDM1165, CDM1185, CDM1220）

Fig.59		油箱总成 Oil Tank Assembly（CDM1165, CDM1185, CDM1220）
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	LG1185.13.01	油箱焊接	Oil tank weldment		1	90141000
2	LG1185.13.02	盖板	Cover plate		2	90142000
3	GB3452.1-82	O型圈	O-ring	265X7	4
4	GB5783-86	螺栓	Bolt	M8x18	12
5	GB93-87	垫圈	Washer	8	28
6	LG1185.13-001	过渡盘	Transition plate		1	90140001
7	LG1185.13-002	橡胶垫	Rubber pad		1	90140002
9	WYD	助气接头	Connector		2
10	LG1185.13.13	预紧空滤器	Pre-close air cleaner		1
11	GB5783-86	螺栓	Bolt	M4x16	6
12	GB93-87	垫圈	Washer	4	6
13	LG1185.13.07	液压空滤器	Hydraulic air cleaner		1
14	Q11F-64	球阀	Ball valve		1
15	LG1185.13-007	放油接头	Oil bleed connector		1	90140007
16	GB3733.2-83	直接头	Connector		2
17	LG1185.01-024	吸油管	Oil-suction pipe		2	90141024
18	LG1185.13-003	盖板	Cover plate		2	90140003
19	GB5783-86	螺栓	Bolt	M8x25	16
20	LG1185.13.08	吸油过滤器	Oil-suction filter	WU-160×80-J	1
21	LG1185.13.08	吸油过滤器	Oil-suction filter	WU-63×80-J	1
22	JB1001-77	螺塞	Plug screw	M22x1.5	1
23	JB982-77	组合垫圈	Combination washer	22	1
24	LG1185.13.08	回油过滤器	Oil-return filter	LXZS-160X20	1
25	GB5783-86	螺栓	Bolt	M10x16	4
26	GB93-87	垫圈	Washer	10	4

60. 驾驶室安装 Cab mountings（CDM1165, CDM1185, CDM1220)

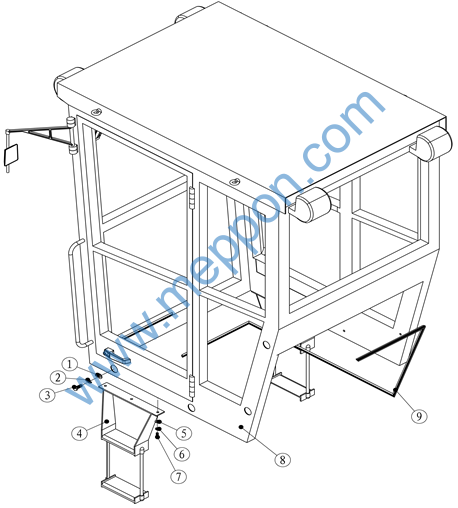

Figure 60 Cab Mountings（CDM1165, CDM1185, CDM1220)

Fig.60		驾驶室安装 Cab Mountings（CDM1165, CDM1185, CDM1220)
Item	Parts number	Chinese description	English description	Specification	Qty	Used No.
1	GB97.1-85	垫圈	Washer	16	8
2	GB93-87	垫圈	Washer	16	8
3	GB5783-86	螺栓	Bolt	M16x40	8
4	LG1185.20.02	踏蹬	Foot pedal		2	90212000
5	GB97.1-85	垫圈	Washer	12	6
6	GB93-87	垫圈	Washer	12	6
7	GB5783-86	螺栓	Bolt	M12x25	6
8	LG1185.20.01	驾驶室总成	Cab assembly		1	90211000
9	LG520D.20-002	胶塞条	Rubber belt		2

Fig.61		随机工具 Tool Kit（CDM1165, CDM1185, CDM1220)
Item	Chinese description	English description	Specification	Qty	Remarks
1	双头开口扳手	Double ended-open spanner	10-12	1
2	双头开口扳手	Double ended-open spanner	13-15	1
3	双头开口扳手	Double ended-open spanner	16-18	1
4	双头开口扳手	Double ended-open spanner	17-19	1
5	双头开口扳手	Double ended-open spanner	22-24	1
6	双头开口扳手	Double ended-open spanner	27-30	1
7	双头梅花扳手	Double ended- offset ring spanner	10-12	1
8	双头梅花扳手	Double ended- offset ring spanner	12-14	1
9	双头梅花扳手	Double ended- offset ring spanner	13-15	1
10	双头梅花扳手	Double ended- offset ring spanner	16-18	1
11	双头梅花扳手	Double ended- offset ring spanner	17-19	1
12	双头梅花扳手	Double ended- offset ring spanner	22-24	1
13	双头梅花扳手	Double ended- offset ring spanner	27-30	1
14	套筒头	Socket end	12	1
15	套筒头	Socket end	13	1
16	套筒头	Socket end	15	11
17	套筒头	Socket end	16	1
18	套筒头	Socket end	18	1
19	套筒头	Socket end	21	1
20	套筒头	Socket end	22	1
21	套筒头	Socket end	24	1
22	套筒头	Socket end	27	1
23	套筒头	Socket end	30	1
24	套筒头	Socket end	32	1
25	公制内六角螺栓	Inner hexagon bolt	3	1
26	公制内六角	Inner hexagon bolt	4	1

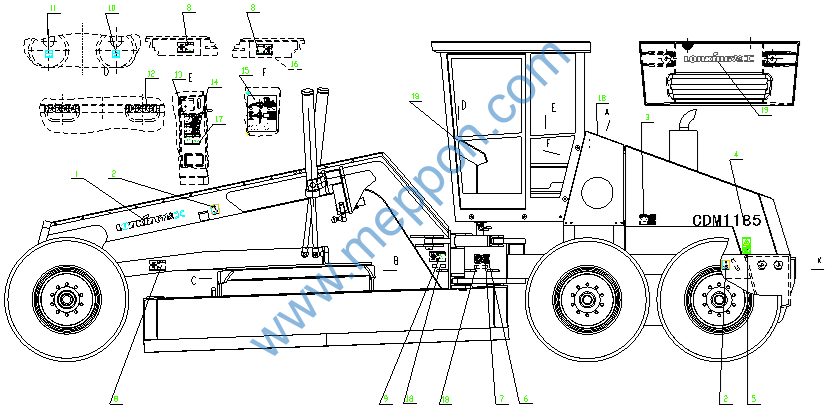

Fig.62		随机工具 Tool Kit（CDM1165, CDM1185, CDM1220)
Item	Chinese description	English description	Specification	Qty	Remarks
1	前机身龙工	Lonking mark on the front body		1
2	起吊标志	Liftig position mark		1
3	电瓶接线标志	Battery connecting wires mark		1
4	CDM1185后罩标志	Longking mark on hood		1
5	风扇警告标志	Warning mark on the fan		1
6	CDM1185铭牌	Nameplate		1
7	工作时警告	Warning of working		1
8	铰接安全标志	Articulated safety mark		1
9	燃油标志	Fuel oil mark		1
10	液压油标志	Hydraulic oil mark		1
11	工作操纵标识	Operating mark		1
12	警告用户	Warning		1
